4 Pieces of a [Unique ] Slug tuned coil form.
The size 1/4" DIA. BY 1 1/2" LONG
THE SLUG IN THESE IS 5/8" LONG SO YOU CAN COME UP WITH A NICE RANGE
EXAMPLE:20 TURNS OF # 20 ENAMEL WIRE = .6UH TO 4.5UH
32 TURNS OF #24 ENAMEL WIRE =3.2UH TO 4.5UH
DISCLAIMER...The range is what I got how ever what You get may vary, be ware of this.
These have 4 pins on the bottom and there is a factory installed ceramic cap on 2 of the pins, You can cut that off up by the cap body and save the 2 pins for maybe a dual winding on the form or etc.
These slug tuned coil forms are being closed out..reg price ..$2.50 Ea.
4 piece close out price..
4/$2.80

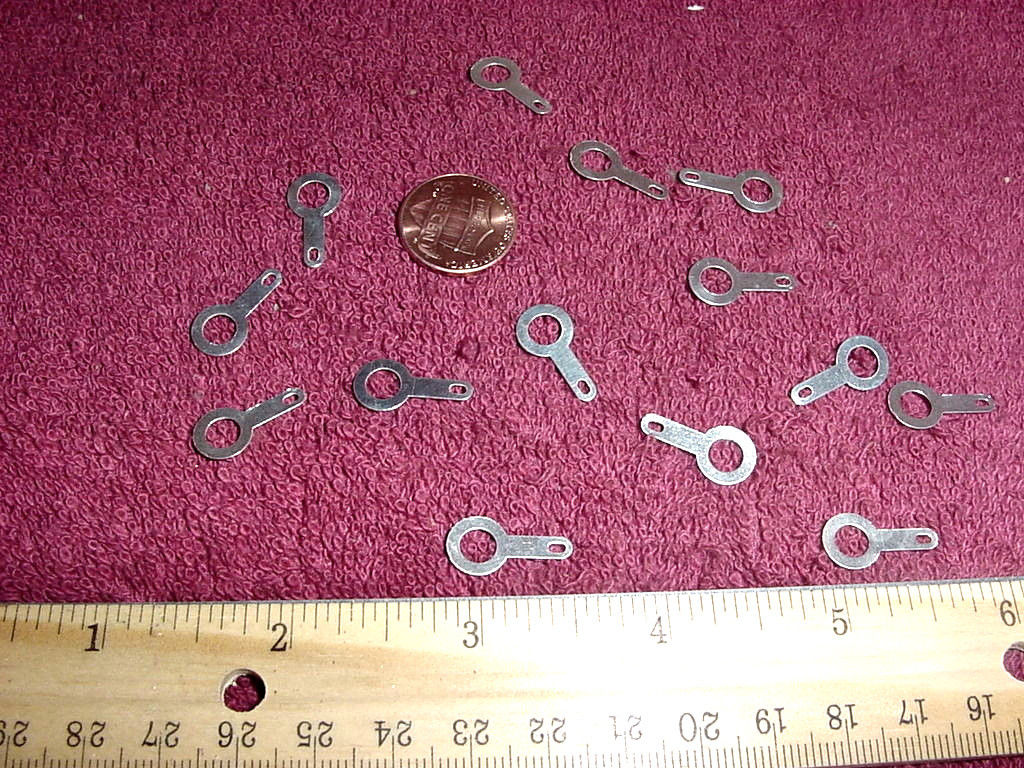

Nice Tin Plated Ground lugs.
100 Pieces of nice tin plated ground lugs.
Size 11/16" long aprox.
Big hole in lug aprox 3/16" dia.
Long end has hole for wire..
Great deal..
Price...
100/$5.00
2 bags of 100 per bag for only..
$8.00

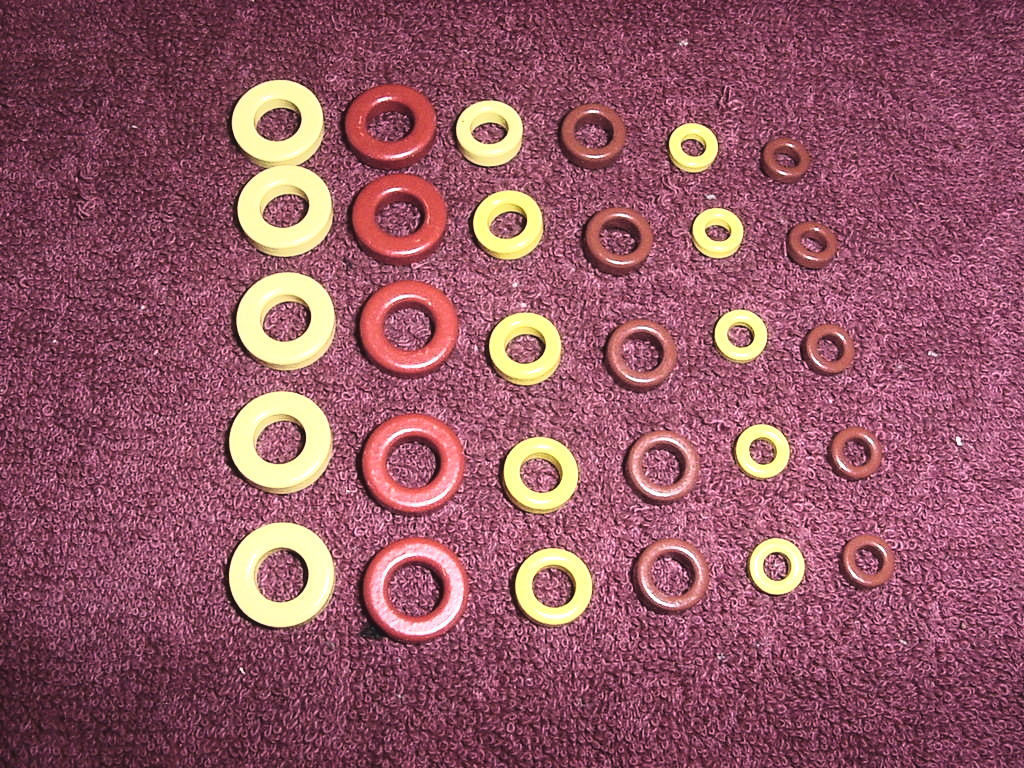

30 Piece Iron Powder Core Kit
Nice 30 Piece Iron Powder Core KIt.
Includes 5 each of the following cores below [From left to right in the photo]
5 Pieces T68-6 [YELLOW]
5 Pieces T68-2 [RED]
5 T50-6 [YELLOW]
5 Pieces T50-2 [RED]
5 Pieces T37-6 [YELLOW]
5 Pieces T37-2 [RED] These are brand new from bulk and are Made by Micro Metals
Price.
$8.50
500 Piece Grab Bags
500 piece plus grab bags are back.
These 500 piece grab bags contain all kinds of fun stuff.
Each bag will have over 500 pieces.
Dan's has had these 500 piece grab bags many times over the years and found time to make up some more.
The 500 Piece grab bags have a lot of left overs and discontinued items in them.
Items that Dan's does not have enough stock left to list and etc.
Price...
Price... Close out special. 3 of the 500 piece grab bags for only $10.00 Notice: Due to weight of these 500 piece grab bags there is a limit of 1 of the 3 bag grab bag close out special per order.Thanks
Mt. Air vairable Capacitor. Small Panel Mount Air Variable Capacitor. 2.5-100pf and made by Jackson Bros of England. Body 3/4" square aprox. 1/4" shaft stainless steel. Shaft 3/4" long. PRICE.. $12.50$6.50Jackson Bros 2.5-100pf Small Panel
Small Panel Mount Air Variable Capacitor.
5.0-15.5PF Small Air Variable Capacitor.
7:1 built in reduction drive.
Small size 1-3/8" wide X 7/8" deep.
Body brass.
1/4" shaft double bearing type.
Just a few of these left. Price... 100/$2.50 Different colors. These be good for some of those small projeces. 10 pieces [each 8" long}[assorted colors] for.. 10/$1.00 3/4" long X 7/16" Wide aprox Long leads, You can bend and use radial style if You want. Price.. $0.65 ea. Jackson Bro's 10:1 Epicyclic Drive Cat. No.5857 Photo No.2 below. look at both of the photos..specs and etc. there. This is a beautifull ball drive. Price.. $35.00 ea. CAT. NO.5620 Very nice ball drive, Look at photos for specs. Price.. $25.00.00 Plus Circuit Board. The Little circuit board is just like Mini Circuits Labs Suggested Lay out in Data Sheet. These are new old stock from bulk and only a few left. Price.. $7.25
1.5-28.5pf These are made by JFD and 350 volt or better. Nice piston Capacitors. Price... $2.00ea. Special deal... 3/$4.00 350 Volt or higher. Price..$1.50ea. 3/$3.00 Air trimmers, 6mm timmers, piston trimmers and lots more... You will get a good assortement of 25 pieces. The photo gives You example of some of the kinds in the 25 piece bags. The little 6mm's are Murata. At only $0.10ea, this is a great deal. Each bag will be different, stock up now while available. Price... 25/$2.50
Look at the photo..Very nice tin Plating on these ground lugs. Hole fits No. 6 Screw and No. 8 Screw and if You use a small washer You can use 4-40 screws also. Price.. 50/$6.00 Special deal.. 2 bags of the 50 piece ground lugs for.. 2/$9.50
5 Pieces LM317-T adj reg. 5 Pieces 7812 12 volt reg. 5 Pieces 7808 8 volt reg. 15 pieces total and price... $4.50
2/$1.00
5 Pieces T37-7 Iron Powder Cores. Price... 5/$1.00 Made in USA. Dia. 1-1/8". Price... $1.75 ea.

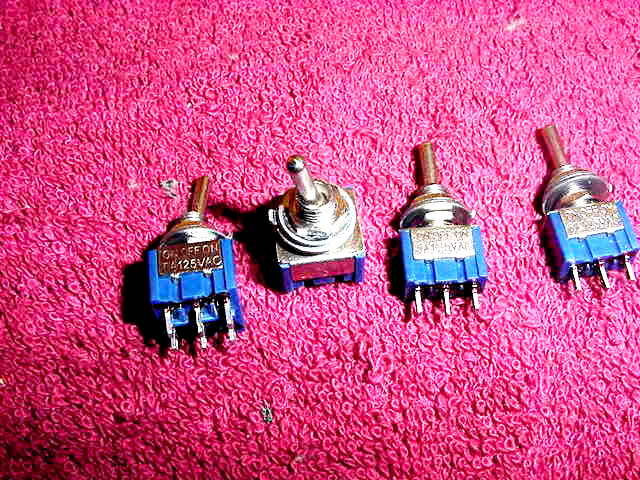

2 Pieces SPDT [ON-0FF-ON] 6 AMP 125 VAC Price on 4 piece toggle switch deal. $2.75 Price..$3.00 100 Piece Voltage Regulator Kit The kit includes the following voltage regulators. 5 Pieces LM317-T 2 Pieces 7812 3 Pieces 7809 6 Pieces 7808 2 Pieces 7805 3 Pieces 78L18 3 Pieces 78L15 3 Pieces 78L12 20 Pieces 78L09 10 Pieces 78L08 3 Pieces 78L06 20 Pieces 78L05 20 Pieces TL431 100 Pieces total and price for this nice 100 Piece voltage regulator kit... 100/$16.50
50 Piece Trimmer Capacitor Assortment. These are 6mm dia. 100 vdc. 2 legs. Top Adj. This kit includes 5 ea. the following vaules below. 5 Pieces 2.5-7.5pf Blue [npo] 5 Pieces 3-10pf [white] 5 Pieces 5-20pf [red] 5 Pieces 7-30pf [green] 5 Pieces 4.5-45pf [yellow] 5 Pieces 15-60pf [brown] 5 Pieces 2-5-70pf [green] 5 Pieces 2.5-85pf [orange] 5 Pieces 23-100pf [brown] 5 Pieces 8-150pf [black] Nice trimmer cap kit for the junk box. Price... $12.50
350 volt. This little ceramic trimmer capacitor is 5/8" X 3/8". The little trimmer has a knob on it to fast adj. and also in the middle a adj. screw for fine adjustments. Price...$1.25ea. 10/$6.50
4-40 X 1/2" long Machine Screws with Captive lock washer.

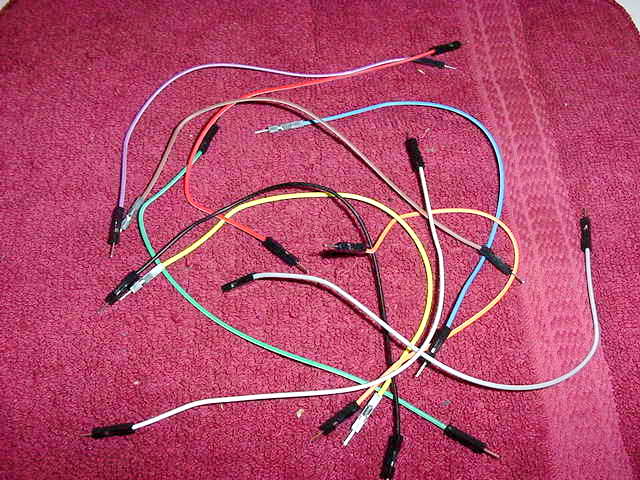

10 Pieces Little Jumper Wires.
10 Pieces of some very nice 8" long jumper wires
1000Pf [.001mf] Silver Mica Capacitor.
Nice 1000pf 2% Tol. 500 volt silver mica capacitors.Photo No.1 below.

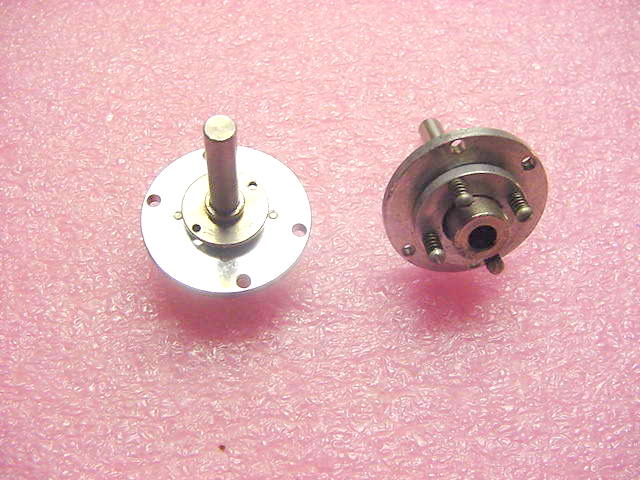

Adjustable Torque Ball Drive.
Photo No.1
1 Piece Mini Circuits Labs ADE-1 Level 7 Mixer.
Small Nice JFD Glass Piston Capacitor.
Small Glass Piston Capacitor.
Jfd Glass Piston Capacitor
.5-10PF Glass Piston Capacitor.

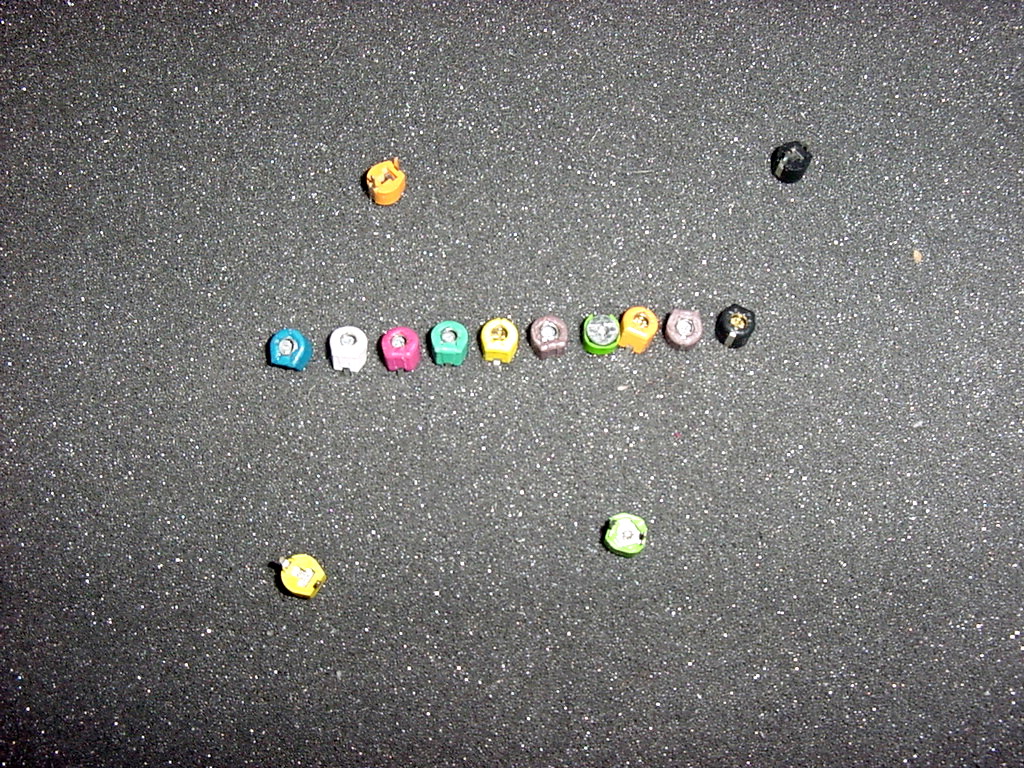

Special..25 Assorted Trim Capacitors
Here is a great deal..25 assorted trimmer capacitors..all different kinds,

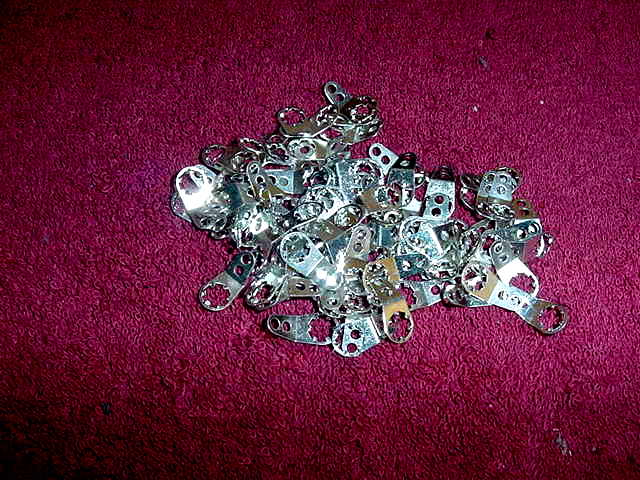

50 Beautiful Ground Lugs
50 Beautiful ground lugs.
15 Piece Voltage Regulator Kit.
Includes 5 ea. of the following voltage regulators.
Iron Powder Core Specials below
All the cores listed below are from Micro-Metals.
T68-7 Iron Powder Cores
Price..
T37-7 Iron Powder Cores
DAKA-WARE Pointer Knob
Nice Vintage Dak-ware pointer knob.
Kit Includes 2 Pieces DPDT [ON-OFF-ON] 6AMP 125 VAC
MOTOROLA MV1662
1 Pack [3 pieces] SMV1662M3 Matched tuning diodes.
Nice 100 piece voltage regulator kit.
Here is a nice 50 piece trimmer cap kit.
From left to right in the following the values are.10-100PF Ceramic Trimmer Capacitor
Nice 10-100pf ceramic mica trim capacitor.
Special deal for short term on these 100pf trimmer caps...
Below are some nice Air Variable Capacitors that are being closed out.
No large quantity on any of these nice Air Variable Capacitors listed below.
2.5-20PF Panel Mount Air Variable.
2.5-20PF Small Panel Mount Air Variable Capacitor.
Made by Teleradio.
The ceramic front is 1-3/16" square.
1/4" shaft and include mounting hard ware.
Price...
$6.00
3.5-35PF Panel Mount Air Variable Capacitor
Photo No.1
Photo No.2
Very nice Panel Mount 3.5-35pf Panel Mount Air Variable Capacitor.
1/4 shaft and shaft length is 3/8" long and 1/4" dia.
The width of the capacitor at the ceramic part is aprox 7/8". [That is the widest part of the ceramic]
3/4" wide at the bottom of the ceramic part.[The bottom part of the ceramic is where the 2 factory pressed pins are.]
The length of the cap from the ceramic base to the end of the plates is aprox 7/8"
Includes mounting hardware.
New old stock by ASP.
Price....
$6.00 ea.
Special Deal...2 of the small 35pf air variables for...
2/$8.00.00
This is a nice panel mount air variable and includes 1/4" shaft adapter kit.
ADAPTER KIT FOR APC TYPE AIR VARIABLES
You got some apc-screw driver type air variables in your junk box and want to put a 1/4" shaft on them?
Well here is a 4 piece adapter kit that will do just that.
1/4 metal spacer shown is 1/4" dia. X 1/2" long.
See Photo's of how to convert a screw driver apc type air variable so that it has a 1/4" shaft.
Price on this 4 piece kit..
$1.00
2 section Poly-Varicon Air Variable
Capacitor.
1 Piece of a 2 section Poly-varicon air variable capacitor.
1 section is around 90pf and the other is around 148.00Pf and the other 2 smaller sections are around 30pf so if you put them all together you can get around 300pf or so.
The low on the 2 larger sections is around 9.5pf and the low on the smaller 2 sections is..around 8.5pf.
Be advised if you hook all 4 sections together the high be around 300pf and the low be around 36pf
There are also 4 small trimmers on the bottom of capacitor that give you about 4 or so pf of additional adjustment.
Included is 2 metric mounting screws and 1/4" shaft adapter.
These are new old stock and built good..better than some of the cheaper types floating around out there.
No large quantiy available.
Price...
$4.50 ea.
Small Nice knob with white pointer line on top.
Fits the shaft on these pots.
Size bottom 5/8" wide aprox.
3/8" tall aprox.
Top Dia 7/17" aprox.Price...
2/$1.00

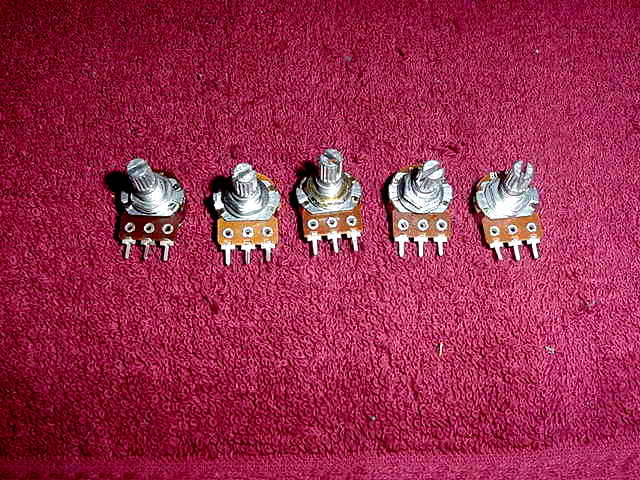

10 Piece Pot Kit A.
Kit includes 2 ea. of the following pots.
2 Pieces 1k Pots.
2 Pieces 5k Pots.
2 Pieces 10k Pot.
2 Pieces 50k Pots.
2 Pieces 100k Pots.
10 pieces total and includes mounting hard ware.
Also included are 5 nice knobs that fit the shaft of these nice pots.
Price on this nice 10 Piece pot & knob kit...
$6.95
Nice Small Pointer Knob.
Price 2/$1.40
ADAPTER KIT FOR APC TYPE AIR VARIABLES
You got some apc-screw driver type air variables in your junk box and want to put a 1/4" shaft on them?
Well here is a 4 piece adapter kit that will do just that.
1/4 metal spacer shown is 1/4" dia. X 1/2" long.
See Photo's of how to convert a screw driver apc type air variable so that it has a 1/4" shaft.
Price on this 4 piece kit..
$1.00
IF CANS BELOW
Below are a couple of If Can deals.
Please pay attention and make sure You order the one You want.
IF Can Deal No. 1.
TOKO IF CANS
TOKO 500UH IF CANS, 10MM Size.
The high is little over 500uh and the low or bottom is around 220uh.
Single winding with no center tap.
These have 5 pins, 3 pins on one side and 2 on the other side.
These are not that hard to rewind and do a secondary winding using the 2 pins or You can also do a center tap on the 3 pin side.
These are easy to take a part, here is how.
Take a small screw driver and turn the adj. slug in and keep turning and it will push the bottom part of the coil form out of the metal can.
Easy to put back together also after rewinding, if that is what You want to do.
See Photo below of one that has been taken apart.
Price...on the If can deal No.1...
10/$5.00
Here is a neat Little If can deal.
These little cans are 10mm size and have 5 pins on bottom of can.
3 Pins on 1 side and 2 pins other side.
They are slug tuned and are adj. at top.
The inductance on the 2 pin side is aprox 650uhy-1.125mhy
The 3 pin side is center taped.
The inductance is 15-5uhy-33huy
The center tap inductance is 4.25uhy-9.0uhy.
Note: Look at the photo above and these are same size as the Toyko cans and You take a part the same way if You want.
Price on IF CAN deal No. 2...
10/$5.00
Notice: The if cans above were measured with a ALDE L/C Meter IIB.
9.0 Volt Panel Light
Very nice small panel mount light bulbs.Below is a couple of photos, the bright one is at 9 volt and the dimmer one is at 5 volt.
9 VOLT Below
5 VOLT Below
Bulbs are about 9/16" long [that is the glass part.]
Dia. about 3/16".
Nice to have some of these around to light things up a little.
Price...
20/$2.00
Or buy 40 for only
40/$3.00
Below is a couple of photos, the bright one is at 9 volt and the dimmer one is at 5 volt.
9 VOLT Below
5 VOLT Below
Bulbs are about 9/16" long [that is the glass part.]
Dia. about 3/16".
Nice to have some of these around to light things up a little.
Price...
20/$2.00
Or buy 40 for only
40/$3.00
NICE AUDIO FILTER KIT
Here is a nice active audio filter kit and has the following features
Switch to switch in and out {on or off}Small circuit board..1" wide X 1-1/2" long
Center frequency 700hz..
Can change frequency to 640hz or tighter with components supplied
Ic used..TL082 OR TL072
Includes all resistors and capacitors....001mf caps are npo and 5% tol.
This is a very nice..compact active audio filter kit and works great on the NNIG OR NW80/40 AND other type receivers or transceivers.
Price..
$10.00
Neophyte Receiver Kit.
Manhattan Construction Kit
Here is a Bare Bone version of the Neophyte Receiver.
This receiver was featured in the Feb. 1988 QST.
See Photos below.
Note: The etched pc board in the photo below is not included, for reference only.
The Kit offered here includes
1 Piece Raw single sided pc board.
3" x 2-3/4"
A few pieces of pc board material to make Your pads.
1 Bag of the main board mounted components.
Band pack bag.
board mounted components, and yes that includes the Ic's,capacitors,resistors and IF cans].
You the buyer furnish a box to put it in..all connectors and jacks,hook up wire,solder and etc.
It also needs any where from a 1k or 5k,or 10k audio pot or linear pot the ones with spst switch work nice or just use a spst switch.
The air variable capacitors can be any where from say 25pf to 365pf.[The smaller the air variable, the less band spread You will have.
Hint: You can also put a small air variable capacitor [10-15pf] in parallel with the main air variable.
You now have some fine tuning Ability or do they call that band pass tuning?
Also needed is 1 poly air variable about 200pf,[The ones that are 140pf and 60pf per section work great.]
The cost of this same deal presented here was around $18.50 Plus shipping back in 1988.
The Neophyte is a DC RECEIVER and for its simple design works rather well.
You can buy a etched pc board from.
ARRL QRP CLASSICS
THE NEOPHYTE 40 METER RECEIVER USING NE602'S (QST 12/88)
Price..$5.50 plus Freds current shipping charges
The kit Includes 1 COPY OF Article.
The Article includes a Circuit-board etching pattern for those that want to roll their own board.
Article also includes a Parts-Placement guide.
[Article supplied with kit only.Sorry Dan's is not in the printing business.
]
The Receiver uses 1 Ne602AN or SA612AN and 1 LM386-1 audio amp,all parts are thru hole parts.
Fun little receiver for the right person and yes it will drive a speaker...
Please make sure You state what band You want on Your order form. This is important!
Price for this bare bones Neophyte kit
80 Meter bard bones Manhattan Construction Kit..
$13.50
40 Meter bard bones Manhattan Construction Kit..
$13.50
Note..the Neophyte kits are back in stock.
LITTLE JOE TRANSMITTER
Parts Kits
Small circuit board..1" wide X 1-1/2" long
Center frequency 700hz..
Can change frequency to 640hz or tighter with components supplied
Ic used..TL082 OR TL072
Includes all resistors and capacitors....001mf caps are npo and 5% tol.
This is a very nice..compact active audio filter kit and works great on the NNIG OR NW80/40 AND other type receivers or transceivers.
Price..
$10.00
Neophyte Receiver Kit.
Manhattan Construction Kit
Here is a Bare Bone version of the Neophyte Receiver.
This receiver was featured in the Feb. 1988 QST.
See Photos below.
Note: The etched pc board in the photo below is not included, for reference only.
The Kit offered here includes
1 Piece Raw single sided pc board.
3" x 2-3/4"
A few pieces of pc board material to make Your pads.
1 Bag of the main board mounted components.
Band pack bag.
board mounted components, and yes that includes the Ic's,capacitors,resistors and IF cans].
You the buyer furnish a box to put it in..all connectors and jacks,hook up wire,solder and etc.
It also needs any where from a 1k or 5k,or 10k audio pot or linear pot the ones with spst switch work nice or just use a spst switch.
The air variable capacitors can be any where from say 25pf to 365pf.[The smaller the air variable, the less band spread You will have.
Hint: You can also put a small air variable capacitor [10-15pf] in parallel with the main air variable.
You now have some fine tuning Ability or do they call that band pass tuning?
Also needed is 1 poly air variable about 200pf,[The ones that are 140pf and 60pf per section work great.]
The cost of this same deal presented here was around $18.50 Plus shipping back in 1988.
The Neophyte is a DC RECEIVER and for its simple design works rather well.
You can buy a etched pc board from.
ARRL QRP CLASSICS
THE NEOPHYTE 40 METER RECEIVER USING NE602'S (QST 12/88)
Price..$5.50 plus Freds current shipping charges
The kit Includes 1 COPY OF Article.
The Article includes a Circuit-board etching pattern for those that want to roll their own board.
Article also includes a Parts-Placement guide.
[Article supplied with kit only. Sorry Dan's is not in the printing business.
The Receiver uses 1 Ne602AN or SA612AN and 1 LM386-1 audio amp,all parts are thru hole parts.
Fun little receiver for the right person and yes it will drive a speaker...
Please make sure You state what band You want on Your order form. This is important!
Price for this bare bones Neophyte kit
80 Meter bard bones Manhattan Construction Kit..
$13.50
40 Meter bard bones Manhattan Construction Kit..
$13.50
Note..the Neophyte kits are back in stock.
LITTLE JOE TRANSMITTER
Parts Kits
From QRP Classics page 9 and also featured in Solid State Design
Kit includes all board mount components
The Little Joe has 3 Metal can transistors.
1 2n2222A
1 2N4036 or 2N4037
1 2N3553 or RCA4013 or MRF8004
[Yes a heat sink for these powerfull Rf Transistors is included in the kit]
The Little Joe has a tremendous output of 1-1/2 to 2 watts of RF Power
With the right kind of antenna, this is enough RF to work about any body You can hear.
Kit also includes piece of raw circuit board. [See Photo}
The raw piece of circuit board is aprox 2-3/4" by 2-3/4", This is little bigger than the etched board You see in photo.
Also included is a few strips of Pc Board for those that want to make some Manhattan Pads.
For those of You who would like to see some examples of Manhattan Pad construction
Note: The etched circuit board in photo is for reference only and does not come with this kit
NOTE: This kit does not include and etched circuit board or crystal
You can etch Your own or use ugly type constuction or Manhattan pad type construction.
AVAILABLE for the following bands and make sure you indicate the band you want, when you order
- 80 Meters
- 40 Meters
The band pack will be marked..The photo shows one for 10/15 Meters.
- 20 Meters
- 10/15 Meters
PRICE ON THIS NICE LITTLE TRANSMITTER KIT IS
$12.50
A etched circuit board is available from Far Circuits.
The current price for board as of March 20-2014 is $4.50 and listed under Transmitters.
Look for this here....[ARRL QRP CLASSICS W7ZOI LITTLE JOE TRANSMITTER $4.50]
Also check with Fred on His Shipping costs.
Crystals are available from sources on the net or a vender on E-bay sells them.
Kit comes with 3 pages of information and also for those that want to etch their own board then Etching pattern included with the 3 pages of information.
See Photo below
30 Meter Little Joe Transmitter Kit.
This little 30 meter transmitter for 30 meters is and adapted from the W7ZOI design that a lot of us call the Little Joe Transmitter.
This Unit here was featured in QST NOV. 1986 Page 43 and was also featured in QRP CLASSICS [long out of print] page 96.
The circuit is all most Identical to Original Little Joe circuit.
Adaptions to the original circuit were made by WD4DDS as well as the Article that was in the Nov. 1986 QST.
There have been a few people that have wanted a small little 30 meter Transmitter like the Little Joe that is avail for other bands.
Well here it is.
The kit includes everything the other Little Joe kits above include plus a copy of the Article.
I decided to build one of these just to make sure it did work.
It works great and a little over 1 watt of RF POWER OUT..With a MOTOROLA MRF8004 for the final at approx 12.5 volts.
The other 2 transistors are a 2N2222A metal and a 2N4036 OR 2N4037 Switching transistors.
The crystal is a 30 meter crystal HC-18U Package.
I built this unit ugly construction and did not use a small format.
I like lots of finger room because of Arthritis in these old fingers of mine!
Look at the couple of photos and the out put is a little over 1 watt on the 10 watt scale of the meter in photo.
I did not do any tweaking or stuff like that. After a couple of smoke tests and then going back and finding My errors got the little unit to fire up.
The keyed signal has kind of a soft tone to it and I like that.
As stated the kit includes everything the other little Joe kits above include and the price...
$12.50
Back in Stock.
It was also stated in the Article that You could use the circuit board that the other little Joes Use, not sure on that but by looking at the 2 circuits it sure looks like You could.
Photo No.1
Photo No.2
Photo No.3
I used the 10 watt scale of the watt meter in the Photo.
10.116Mhz Crystal
Transmitting crystal for the above 30 meter transmitter.
HC-49 Case..Long leads...
Price...
$2.00 ea.
Special..
5 of the 10.116 mhz crystals for..
5/$2.50
A MODIFIED CUBIC-INCHER TRANSMITTER
A MODIFIED CUBIC-INCHER TRANSMITTER
THIS LITTLE KIT IS A MODIFIED VERSION OF THE 40-M CUBIC INCHER BY DENNIS MONTICELLI, AE6C WHICH APPEARED IN JULY 1982 QST...THE KIT IS AVAIL FOR EITHER 40 METER OR 80 METERS..
OUT PUT IS AROUND 2-4 WATTS..AND USES MRF472 OR 2SC2075 AND ETC...PLEASE WHEN YOU ORDER SPECIFIE WHAT BAND YOU WANT WHEN ORDERING
KIT INCLUDES LITTLE BOARD AND ALL BOARD MOUNTED COMPONENTS..DOES NOT INCLUDE TRANSMITTING CRYSTAL
THERE ARE A FEW PLACES OUT THERE THAT SELL CHEAP CRYSTALS FOR TRANSMITTING ON THE VARIOUS QRP BANDS
JUST PLUG IN QRP TRANSMITTING CRYSTALS IN YOUR SEARCH BAR AND SOMETHING THING SHOULD COME UP...OR TRY THIS PLACE...AND CHECK OUT THEIR LIST OF PARTS SUPPLIERS AND THEY HAVE LOTS OF OTHER INFORMATION THAT IS INTERESTING ALSO
PRICE OF THE LITTLE CUBIC INCHER 40 METER TRANSMITTING KIT IS..$13.50
Price of the 80 Meter Cubic Incher kit.
$13.50
PLEASE STATE WHAT BAND YOU WANT WHEN YOU ORDER...THE CUBIC INCHER KIT
THE 80 METER CUBIC INCHER KIT INCLUDES 2 CRYSTALS AS A BONUS..1 EACH OF THE FOLLOWING CRYSTALS...3.6864 AND 3.5795..
HAD SOME EXTRA OF THESE 2 CRYSTALS SO INCLUDE THEM IN THE 80 METER VERSION OF THE CUBIC INCHER AT NO EXTRA COST..WHILE SUPPLY LASTS..
EVEN IF YOU DO NOT USE THESE 2 FREQ. ..STILL MAKES IT FUN
FT37-43 Ferrite Cores.
FT37-43 Ferrite Cores
The FT37-43 ferrite cores are probably the most used core there is, as far as used by builders of Ham Radio Equipment and projects and etc.
Great Deal here..
25/$5.00
Or..buy 2 25 piece kits for...
$8.00
HI-Q Johnson Air Trimmer Capacitors
0.5-10PF JOHNSON 189-503-103 and Johnson 189-503-106 both 250VDC
BASE 7/16" SQUARE AND LENGHT OF CAP. 7/16"
TOP OR BOTTOM ADJ 2 PIN
You will get and assortment of the 2 numbers listed..they are both same range.
Reg. price at Dan's catalog no.10 is $2.00 each...
Special deal...
5/$4.00
Special deal..
10 pieces of the 0.5-10pf Johnson air trimmers for..
10/$6.00
2.2-22.5PF JOHNSON MODEL NO. 189-508-5 250 VDC AIR TRIMMER
9/16" WIDE BY 7/16" LONG TOP OR BOTTOM ADJ.
2 PIN MOUNT..PRICE ON THESE NICE AIR TRIMMERS IS
$3.25 EA.
Special Deal.
4/$5.00
1000pf [.001uf] Feed Thru Capacitors.
1000PF Feed thru capacitors.
250 volt..
Nice feed thru caps.
Special Deal...
Price...
25/$4.00
Special....50 of the little feed thru caps for...
50/$6.00
Stock while avail at a great price.
22PF NPO Monolithic Ceramic Capacitors
Very nice 22pf Monolithic npo capacitors, voltage 50 volt, tol. 5%
Long leads and small spacing..Look at photo how nice they fit the NNIG BOARD.
Stock up at a great price on these...
50/$2.50
Special deal...
100 Pieces of the 22pf npo mono caps for...
100/$3.50
2.2UF 50 VOLT ELECTROLYTIC CAPACITORS
Nice 2.2uf 50 volt electrolytic capacitors.
Size 5.5mm Dia. X 11mm
Price..
25/$1.00
SMALL RED LED
Very nice small red led.
Size...6.5mm wide X 7.5mm tall.
9 volts gives a nice glow, 12 volts more bright.
Price...
25/$1.00
5 MM LED [RED]
Nice 5MM leds.
9 volts gives a nice glow and 12 volts brighter.
A dropping resister in one of the leads and would work on other voltages.
Price...
25/$1.00
5 MM LED [yellow]
Nice 5MM leds.
9 volts gives a nice glow and 12 volts brighter.
A dropping resister in one of the leads and would work on other voltages.
Price...
25/$1.00
SPECIAL DEAL ON CHOKES BELOW
THESE ARE SOLD IN QUANTIES OF 10 EA.
PLEASE MAKE SURE YOU GET PRICE RIGHT AND NO MIXING OF VAULES PLEASE.
NOTE: SEE PHOTO ABOVE FOR EXAMPLE OF WHAT LITTLE CHOKES LOOK LIKE
10 Pieces .39uh...price...10/$1.50
10 pieces of .47uh chokes....price...10/$1.50
10 pieces .82uh chockes....price...10/$1.50
10 Pieces 1uh chokes....price...10/$1.50
10 pieces 1.2uh chokes....price...10/$1.50
10 pieces 1.5uh chokes....price...10/$1.50
10 pices 1.8uh chokes....price 1010/$1.50
10 pieces 2.2uh chokes....price...10/$1.50
10 pieces 2.7uh chokes....price 10/$1.50
10 pieces 3.9uh chokes....price...10/$1.50
10 pieces 4.7uh chokes....price...10/$1.50
10 pieces 5.3uh chokes...price...10/$1.50
10 pieces 5.6uh chokes....price...10/$1.50
10 pieces 10uh chokes....price...10/$1.50
10 pieces 12uh chokes....price...10/$1.50
10 pieces 15uh chokes....price...10/$1.50
10 pieces 18uh chockes....price...10/$1.50
10 pieces 22uh chokes....price...10/$1.50
10 pieces 27uh chockes....price...10/$1.50
10 pieces 33uh chokes....price...10/$1.50
10 pieces 47uh chokes... price...10/$1.50
10 pieces 62uh chokes....price...10/$1.50
10 pieces 100uh chokes....price...10/$1.50
10 Pieces 120uh chokes....price...10/$1.50
10 pieces 150uh chokes....price...10/$1.50
10 pieces 180uh chokes....price...10/$1.50
10 pieces 220uh chokes....price...10/$1.50
10 pieces 270uh chokes....price...10/$1.50
10 pieces 330uh chokes....price...10/$1.5010 Pieces 560uh
10/$1.50
10 pieces 680uh chokes....price...10/$1.50
30 Piece Choke Kit.
Here is a nice 30 Piece choke kit.
Kit includes 10 pieces of 3 popular chokes.
10 Pieces 1000uh
10 Pieces 100uh
10 Pieces 10uh
30 Pieces total..
Price..
$3.00
6MM DIAMOND ISLAND PAD CUTTER.
HERE IS A NICE DIAMOND ISLAND PAD CUTTER...THE SHAFT IS 5/16" DIA. AND THE DIAMOND END MILL PART IS 1/4" DIA.
THESE WILL MAKE LOTS AND LOTS OF ISLAND PADS ON PC BOARD.
THE NEW JERSEY QRP CLUB HAD A NICE ARTICAL ON HOW TO MAKE ISLAND PADS.
NOTE: YOU WILL NEED DRILL PRESS TO USE THESE..IF YOU TRY TO USE JUST A REG DRILL..FORGET IT..THE DIAMOND END MILL WILL JUST BOUNCE ALL OVER THE CIRCUIT BOARD.
PRICE ON THESE NICE DIAMOND ISLAND PAD CUTTERS..
$5.00
5MM DIAMOND ISLAND PAD CUTTER.
HERE IS A SMALLER ISLAND PAD CUTTER..5MM SIZE ON THE DIAMOND END MILL PART.
SHAFT IS A BIT SMALLER THAN 5MM
YOU NEED DRILL PRESS FOR THESE..IF YOU TRY AND USE IN A REG HAND DRILL..THE BIT JUST BOUNCE ALL OVER THE PC BOARD.
$3.50
SPECIAL COMBO DEAL
Here is a special deal on the Island pad Cutters.
Deal is for 1 piece 6MM
1 piece 5mm
Price is...
$6.50
I-land Pad Cuter Pad Photos
Below are some photos of what I-land pad cuter pads look like after made with one of the diamond core drills.
Photo no. 1
Photo no.2
Photo no.3
Photo no.4
With a little practice the cutter makes some pretty nice pads. The pads are easy to tin up and start mounting parts.
You do need a drill press how ever..I have tried using a hand drill and You get that bounce effect!! That means the drill wants to travel all over the pc board. If You look at one of the photos You can see what I mean.
One hint to make sure You do is make sure You check that there are no bridges between the pad and the Adjacent PC Board material.
A dental pic works great for this to run in the little grove that pad cutter makes to clean out and make sure no bridges.
I love the little drill press You see in one of the Photos.
Its a little PROXXON and the chuck takes up to 1/4" dia. bits.
Its kind a pricy little out fit, but handy to have around.
Micro Mart also sells something very close if not a clone of this little drill press, in fact they sell 2 sizes.
And they are less money than the PROXXON.
22UH CHOKES
50 Pieces of a 22uh as shown in photo.
10% tol. and nice.
Price...
50/$1.00
1N5245B Zener Diodes
20 Pieces 1N5245B 15V 500mW Zener Diodes
Price...
20/$1.00
2.5-7.5 Npo Ceramic Capacitors
20 Pieces of Nice 2.5-7.5pf npo trimmer capacitors.
These are made by Stettner in Germany.
6mm dia. and have 3 legs on them
You can cut one leg off if do not need the 3 leg pattern.
Price...
20/$4.00
*****LM4871N AUDIO AMP'S*****
HERE IS A NICE 1.5 WATT AUDIO AMP 8 PIN DIP IC
LOW VOLTAGE...COMPLETE DATA INFO
CLICK HERE
VERY NICE AUDIO AMPS.
$1.00EA.
Special..buy 3 of the nice audio amps for..
3/$2.50
1/4" Switch Nuts
35 Nice 1/4" switch nuts.
Nice for all them switches and etc.
Price...
35/$1.00
1.5-12.5 Mica Trim Cap
Nice 1.5-12.5pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
2/$1.00
1.5-25pf Mica Trim Cap
Nice 1.5-25pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
$1.00 Ea.
BEST DEAL PRICE...
5/$4.00
2.5-50pf Mica Trim Cap
Nice 2.5-50pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
$1.25 ea.
BEST DEAL PRICE...
5/$5.00
1N5245B Zener Diodes
20 Pieces 1N5245B 15V 500mW Zener Diodes
Price...
20/$1.00
2.5-7.5 Npo Ceramic Capacitors
20 Pieces of Nice 2.5-7.5pf npo trimmer capacitors.
These are made by Stettner in Germany.
6mm dia. and have 3 legs on them
You can cut one leg off if do not need the 3 leg pattern.
Price...
20/$4.00
*****LM4871N AUDIO AMP'S*****
HERE IS A NICE 1.5 WATT AUDIO AMP 8 PIN DIP IC
LOW VOLTAGE...COMPLETE DATA INFO CLICK HERE
VERY NICE AUDIO AMPS.
$1.00EA.
Special..buy 3 of the nice audio amps for..
3/$2.50
1/4" Switch Nuts
35 Nice 1/4" switch nuts.
Nice for all them switches and etc.
Price...
35/$1.00
1.5-12.5 Mica Trim Cap
Nice 1.5-12.5pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
2/$1.00
1.5-25pf Mica Trim Cap
Nice 1.5-25pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
$1.00 Ea.
BEST DEAL PRICE...
5/$4.00
2.5-50pf Mica Trim Cap
Nice 2.5-50pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
$1.25 ea.
BEST DEAL PRICE...
5/$5.00
>
Nice 2.5-100pf Mica Trim caps.
350 vdc and size of these trim caps...5/16" X 1/2".
These are nice to have around when You need some.
Price on these nice mica trim caps.
$1.35ea.
BEST DEAL PRICE...
5/$5.00
IMPORTANT..The same photo for all the little Mica 5/16" X 1/2" trim caps was used.
How ever the part number or numbers on the side of some will be different than in photo, but You will get the vaule listed.
This was done to save time on taking lots of photos.
How ever the part number or numbers on the side of some will be different than in photo, but You will get the vaule listed. This was done to save time on taking lots of photos.IMPORTANT..The same photo for all the little Mica 5/16" X 1/2" trim caps was used.
1.5-12.5 Mica Trim Cap
Nice 1.5-12.5pf Mica Trim caps.
350 vdc and size of these...5/16" X 1/2".
These are nice to have around when you need some.
Price on these nice mica trim caps.
2/$1.00
Arco 20-250pf Mica Compression Trim Cap.
12-250PF Mica compression trim cap.
350 volt rating.
Arco No.425
3/4" X 3/8"..Nice cap.
Price...
$2.25 ea.
2.2UH SLUG TUNED COIL
10 Pieces of a little 2.2uh approx slug tuned coil
The coil size is..
3/4" long by 1/8" dia. approx
SALE PRICE...
10/$2.25
Fair-rite Beads
Nice fair-rite beads....part number...27430008111
Size,.,,3/8" long by 1/8" dia.
These are 43 material.
Price
25/$2.50
NOTE: When order please give part number or bead with wire thru it..
100 PIECE BY-PASS CAP KIT
Here is a nice 100 Piece by-pass capacitor kit.
These are all Multilayer Ceramic Capacitors
Made by Murata,Kement, AVX, etc.
All long leads...50 volt or better..some 10% other +-20%
This 100 piece kit includes 25 pieces of the following vaules.
25 Pieces .1mf
25 Pieces .01mf
25 Pieces .001mf
25 Pieces .047mf
Price on this nice 100 Piece by pass cap kit is...
$5.00
3.541 MHZ QRP CRYSTALS
Photo no.1
Photo no.2
Nice 80 meter crystals..
3.541 mhz.
These are in HC-18U type package.
Look at photo that is what you will receive.
Look at Photo no. 2..you will see the freq. right on the button.
Price on these nice 80 meter crystals is....
$2.00 ea.
or buy 5 for only......
$6.25
145 PIECE CHOKE KIT
HERE IS A VERY NICE 140 PIECE CHOKE KIT WITH SOME OF THE MOST POPULAR
VAULES.
5 PIECES .15UH
5 PIECES .33UH
5 PIECES .39UH
5 PIECES .47UH
5 PIECES .68UH
5 PIECES .82UH
5 PIECES 1.0 UH
5 PIECES 1.2UH
5 PIECES 1.5UH
5 PIECES 1.8UH
5 PIECES 2.2UH
5 PIECES 2.7UH
5 PIECES 3.3UH
5 PIECES 3.9UH
5 PIECES 4.7UH
5 PIECES 5.3UH
10 PIECES 5.6UH
5 PIECES 10UH
5 PIECES 12UH
5 PIECES 15UH
5 PIECES 18UH
5 PIECES 22UH
5 PIECES 27UH
5 PIECES 30UH
5 PIECES 33UH
5 PIECES 47UH
5 PIECES 62UH
5 PIECES 100UH
THIS IS A GREAT DEAL AND PRICE FOR THE 140 PIECE CHOKE KIT...
$12.50
Fall Special on 140 Piece choke kit.
$8.95
See table below on color code.
NOTE: THE PHOTO IS A EXAMPLE OF WHAT LITTLE CHOKES LOOK LIKE..
NOTE: See table below on color code for inductors and chokes.
COLOR CODES FOR MOST INDUCTORS
.22UH..red...red...silver.
.33uh..orange-orange-silver
.47uh..yellow...violet...silver
.68uh..blue...grey...silver
1.00uh..brown...gold...black
1.2uh..brown...red...gold
1.5uh..brown...green...gold
2.2uh..red...red...gold
2.70uh..red...violet...gold
3.30uh..orange...orange...gold
4.70uh...yellow...violet...gold
5.6uh..green...blue...gold
6.8uh..g\blue..grey...gold
10uh..brown...black...black
12uh..brown...red...black
15uh..brown...green...black
18uh..brown...grey...black
22uh..red...red...black
27uh..red...violet...black
33uh..orange...orange...black
39uh..orange...white...black
47uh..yellow...violet...black
56uh..green...blue...black
68uh..blue...grey...black
82uh..grey...red...black
100uh..brown...black...black
150uh..brown...green...brown
220uh..red...red...brown
330uh..orange...orange...brown
470uh..yellow...violet...brown
560uh..green...blue...brown
1000uh..brown..black..red
This covers most..but not all..but gives you a idea of the color code on molded chokes.
Some have a letter or number on them..example..4.7R means 4.7uh.
10 Pieces of a nice 6.8-45pf 6mm dia. 100 vdc trimmer caps.2 pin type.
These are nice new old stock.
Price...10/$3.50
10 Pieces of a nice 9-150PF 6mm dia. 100 vdc trimmer caps.2 pin type. These are nice new old stock. Price...10/$3.50 6mm size and 2 legs and what you see in photos is what you will receive. Price on 10 of these is... 10/$4.50 You save a lot by buying 10 pieces compared to the 1 piece price in Dan's Cat.No.9 3KV RATING.
1/4" SHAFT FOR 1/4" INSIDE DIA. KNOB AND THE OUT PUT IS 1/4" DIA. Nice shaft extender and price... $5.00,P.Special... 2 for $6.00
Nice SENSITIVE 200 ľA Panel Meter. The
Coil Resistance 650 ohm. [ 0.2ma-0.3ma ] This meter has a little neon light and not sure of the voltage but I used a 9 volt battery to fire it up. So..I would think up to 12 volts or so and maybe down to 6 volt. The scale on the meter reads..1-2-3-4-5 red letters The top part of the scale on meter reads.1-3-5-7-9-db-30 Blue letters The lower part of scale is for watts and the upper part is for s-meter reading...or come up with your own ideas. In the 2nd photo you can see 3 meters and this should give you a good idea of what all of the meter looks like.. The face of the meter measures 1/3/8" and the front of the meter that includes the little indentation on front of meter..that is a hair over 1-1/2"..This includes the little part that drops off. front to back of meter...is..approx 1-1/2 inches. CAUTION The meter does have a + sign on meter for postive lead and negative sign for negative lead. The coil on the meter will not handle much current at all...so..do not hook a battery direct to the 2 terminals on the meter. If you do you will pretty much blow the coil..then the meter will be open and will not work. I am mentioning this because I know there are a few out there that want to see the needle zing......well..it will if you hook a battery direct with out current dropping resisitor in series with the postive lead of the battery...[1.5volt battery with 47k resistor in line with postive lead of battery] I have checked each meter befor it is packed..checked to make sure the meter movement is ok and that also the little neon light lights up.. Price on this nice 200 ua edge meter... $4.50 EA. Capacitor Kit. 2 Pieces 750pf 1% tol. 500 Volt. 2 Pieces 620pf 5% tol. 300 Volt. 2 Pieces 470pf 5% tol. 500 volt. 2 Pieces 430pf 5% tol. 500 volt. 2 Pieces 330pf 5% tol. 500 volt. 2 Pieces 240pf 5% tol. 300 volt. 3 Pieces 180pf 1% tol. 500 volt. 4 Pieces 150pf 5% tol. 300 volt. 3 Pieces 120pf 1% tol. 300 volt. 2 Pieces 100pf 5 % tol. 500 volt. 2 Pieces 68pf 5% tol. 300 volt. 2 Pieces 56pf 5% tol. 300 volt. 2 Pieces 39pf 5% tol. 300 volt. 2 Pieces 27pf 5% tol. 300 volt. 2 Pieces 22pf 5% tol. 300 volt. 2 Pieces 20pf 5% tol. 300 volt. Also 10 additional assorted dip silver mica capacitors for a total of 50 Pieces. Nice kit of Dip Mica Caps. $15.00
A GREAT ASSORTMENT AND PRICE...FOR THE 100 ASSORTED IF CANS AND INDUCTORS IS...$5.00 The bore on one end with set screws fits a 1/4" shaft. The other end with shaft is 1/4" Dia. These are handy if you need to increase the lenght on a cap or pot. PRICE... $4.50ea.
Includes the following vaules from left to right in photo above. 5 Pieces 1500pf...350 volt. 5 Pieces 1000pf....250 volt 5 Pieces 500pf...500 volt. Price.... $5.00 BEST DEAL PRICE... 2 Kits for.. 2/$8.00 1/4" inside dia. and have 4 set screws . 4 set screws give a secure fit. Some 1/4" to 1/4" shaft adapters only have 2 set screws 1/4" inside dia. Material is hard nylon. Need to insulate that air vairable from the front panel? Or need to keep air vairable above ground for that tunner? Need to join two 1/4" shafts together? More photos below. Nice to have a few of these in the junk box when you need a 1/4" shaft adapter. Also..got a shaft that is metric and not quite 1/4" and need to extend shaft, these will work for that. With 4 set screws even if shaft is a hair smaller in dia. than 1/4" these will still work. Price on these nice 1/4" to 1/4" shaft adapters... $2.50ea. $6.00
CLICK HERE FOR COMPLETE DATA SHEET This is a great deal and the price is....... 100/$2.00 The photo shows a strip of 10 pieces and you will receive 10 strips with 10 pieces per strip.
Price on these nice 5.6uh chokes is... 25/$2.50
What you see in photo is what you will receive. Price on these nice 15uh chokes... 10/$2.50 Or buy 25 pieces for only... $4.00
These are nice chokes and a great deal. Extra special deal..
100 PIECES VERY NICE MURATA .01MF 50 VOLT RADIAL LEADS.. MULTILYER CAPS. VERY NICE..GET SOME WHILE AT A GREAT PRICE. 100/$5.00 Small size..long leads..50 volt rating. Price... 100/$5.00 Stock up special.. 300/$9.00 GREAT DEAL HERE.. $1.25 ea. 5 Each of the following cores listed below
5 pieces T68-2 [ red ]
5 pieces T50-6 [ yellow ]
5 pieces T50-2 [ red ]
5 pieces T37-6 [ yellow ]
5 pieces T37-2 [ red ]
5 pieces T30-6 [ yellow ]
5 pieces T30-2 [ red ]
5 pieces T25-6 [ yellow ]
5 pieces T25-2 [ red ] 50 pieces total.. Price... $13.50
KIT NO.A
5 pieces T68-7 { white }
5 pieces T68-2 { red }
5 pieces T50-7 { white }
5 pieces T50-2 { red }
5 pieces T37-7 { white }
5 pieces T37-2 { red }
5 pieces FT50-43 { black }
5 pieces FT37-43 { black }
5 pieces FT50-61 { grey }
5 pieces FT37-61 { grey }
Note: the 61's and the 43's cores will be in separate bags and bag marked. Price on this nice 50 Piece core kit is... CLOSE OUT SPECIAL. $15.00 KIT NO.B
5 pieces T68-6 { yellow }
5 pieces T68-2 { red }
5 pieces T50-6 { yellow }
5 pieces T50-2 { red }
5 pieces T37-6 { yellow }
5 pieces T37-2 { red }
5 pieces FT50-43 { black }
5 pieces FT37-43 { black }
5 pices FT50-61 { grey }
5 pieces FT37-61 { grey }
Note: the 61's and the 43's cores will be in separate bags and bag marked. CLOSE OUT SPECIAL. $15.00 These are nice and priced right at... 10/$3.50
SPECIAL DEAL...10/$4.75 SEE PHOTO FOR HOW U CAN USE A PIECE OF NO. 16 OR NO. 18 BUSS WIRE AND THEN U HAVE A FEED THRU CAP WITH LEADS ON IT. PRICE...10/$3.50 BEST DEAL PRICE... 25/$5.00
These are very nice Button Feed Thru caps and priced right. Price on these is.. 10/$2.75 BRASS ADJ SCREW AND BRASS PLATES. 150 VDC SIZE 3/8" LONG BY 1/4" WIDE. 10/$3.50 Size about 5/16" long by 3/16" dia. Price... Final close out best deal price... 10/$2.50
Size of these 1/4" wide aprox by 3/8" tall. Nice resonators...Price... $1.00 ea. BEST DEAL PRICE.. buy 10 pieces for only.. 10/$6.75 These are all Multilayer Ceramic Capacitors Made by Murata,Kement, AVX, etc. All long leads...50 volt or better..some 10% other +-20% This 100 piece kit includes 25 pieces of the following vaules. 25 Pieces .01mf 25 Pieces .001mf 25 Pieces .047mf $5.00 YELLOW-GREEN These are gold plated on the bottom of the led...where they mount to the pc board. CLICK HERE FOR COMPLETE DATA SHEET This is a great deal and the price is....... 100/$2.00 BEST DEAL PRICE... 200/$3.00
Price on these nice chokes... 10/$2.50
NOTE: These come on factory tape and reel...not loose like in photo. 50 Piece Surface Mount choke kit. 25 Pieces 1000uh 5% tol. 25 Pieces 10uh 5% tol. Total Pieces [go up and look at photo of the 1000uh Surface Mount Chokes. The 10uh same size and same type as the 100uh choke. These come on tape] Price on this nice 50 Piece surface mount choke kit. $3.00 Well here is a 4 piece adapter kit that will do just that. 1/4 metal spacer shown is 1/4" dia. X 1/2" long. See Photo's of how to convert a screw driver apc type air vairable so that it has a 1/4" shaft. Price on this 4 piece kit.. $1.00 See examples in photos below on how to do it..alwasy start at end of air vairable..( not up by body )You will need a cap meter so you can see where you are at. I would just take 1 or 2 plates off at at time untill you get to where you want to be. You can just cut off the part of air vairable you took plates off of if it bothers you. Just check out the photos below and it pretty much shows you what to do. PHOTO NO. 2
Size of these 1/4" wide aprox by 3/8" tall. Nice resonators...Price... $1.00 ea. CLICK HERE FOR COMPLETE DATA SHEET This is a great deal and the price is....... 100/$2.00 The photo shows a strip of 10 pieces and you will receive 10 strips with 10 pieces per strip.
Price..10/$3.50 These are being closed out These are made by Motorola. These have the same pin out as a J310 smt..so have included the pin out for J-310 smt fet. CLICK HERE FOR PIN OUT INFORMATION PRICE...10/$2.00 Best deal price... 20/$3.00 Price... 3/$1.00 PRICE... $2.50 EA. NICE..14 PIN 2 WATT AUDIO AMPS. DIRECT REPLACEMENT FOR THE LM380 14 PIN 2.5 WATT AUDIO AMP. FOR COMPLETE DATA ON THE ULN2280 CLICK HERE VERY NICE AUDIO AMPS AND PRICE.. $1.35 EA. Special deal... 5/$5.00 If you can use what is listed below take advantage of the special prices on these nice tuning diodes. 2 pin TO-92 Package. Long leads. Diode capacitance 440pf Minimum....500pf Typ...560pf Max CLICK HERE FOR DATA ON THE MVAM108'S These would possible make a replacement for these 2 varactor tuning diodes that are used in some projects on the net......the KV1235 AND KV1236... Nice tuning diodes and while stock lasts special deal at only.... 10/$8.50 Includes the following below. 1 Piece MC1350P...8 PIN-THRU HOLE IC. 1 Piece LM386-1 ...8 PIN-THRU HOLE IC. Price on this nice 5 Piece IC Deal... $10.00
APROX SIZE..10MM SQUARE AT BASE. FOR $1.50 LOTS OF DIFFERENT VAULES AND SIZES GREAT TO HAVE AROUND AND PRICED DIRT CHEAP FROM DAN'S $5.00 BEST DEAL PRICE... 2/$8.00 CASE SIZE 1206..10% 50 VOLT 6 PIN SURFACE MOUNT PACKAGE C1D STAMPED ON FACE OF PART SOT-143 PACKAGE 10/$5.00 These are made by Motorola. These have the same pin out as a J310 smt..so have included the pin out for J-310 smt fet. 10/$2.00 $2.50, 20/$3.00 Tantalum Capacitors. Case size. 3/16" long X 1/16" wide approx. 25/$1.00 Tantalum Capacitors. Case size 3/16" long X 1/16" wide approx. 25/$1.00 Tantalum Capacitors. Case size 1/4" long X 3/16" wide approx. 25/$1.00 Knob is Knurled on sides for good grip Pointer line in middle. Knob 9/16" tall aprox. X 1/2" dia. $1.50ea. SIZE..9/16" LONG BY 3/8" WIDE 350 VDC SIZE..5/16" BY 1/2" SIZE 9/16" LONG BY 3/8" WIDE 35O VDC 350 VDC..SIZE.5/16" BY 3/8" SIZE OF CAP 5/16" WIDE BY 11/16" LONG THESE ARE AROUND 8MM SIZE ..250 VDC 3.5-11PF 100 VDC SIZE 3/16" DIA. 1-30PF..THESE ARE THRU HOLE TRIMMERS..HOW EVER..BEND THE LTITLE TABS AT RIGHT ANGLE TO BODY OF CAP AND YOU HAVE A NICE LITTLE SURFACE MOUNT AIR TRIMMER 100 VDC RATING...NICE ITEMS..GET SOME WHILE AVAIL VERY NICE PARTS AND MOUSERS CURRENT PRICE $1.37 EA. 1.5-25PF SIZE 8MM 100 VDC RATING.. NICE TRIMMER CAPS VOLTAGE RATING 100 VDC..SIZE..1/4" SQUARE
SIZE 3/4" LONG AND DIA.1/4" 350 VDC...GREAT PART 50PF ONE SECTION..150PF OTHER SECTION DIA.1/4" AND LENGTH 11/16" VERY NICE GLASS PISTON CAP. SIZE 11/16" DIA. LENGTH 1 INCH. BY MURATA PART NO.3102P CLICK HERE FOR PIN OUT AND DIMENSIONS DIMENSIONS ARE IN MILIMETERS 10/$2.00 CLICK HERE FOR PIN OUT AND DIMENSIONS DIMENSIONS ARE IN MILIMETERS 10/$2.50 CLICK HERE FOR PIN OUT AND DIMENSIONS DIMENSIONS ARE IN MILIMETERS 10/$2.50 SMALL SIZE AND ABOUT 1/4 DIA. ON BODY OF TRIMMER AND LONG LEADS MURATA PART NO.3321-H-105 NICE FOR SMALL PROJECTS..BEND TABS AT RIGHT ANGLE AND HAVE A NICE SURFACE MOUNT TRIMMER CAP AVID #2049469-05-F AVID PART NO. 2049469-05-F SIZE IS 2 AND 3/8" TALL BY 1 AND 11/16" WIDE..HAS TAPED HOLED FOR MOUNTING AND ALSO FOR MOUNTING THE TRANSISTOR OR TRANSISTORS OR DRILL AND TAP FOR YOUR OWN SPECS. INCLUDES MOUNTING HARDWARE AND 6 AMP RATING 2 HOLE..1/2" LONG BY ALL MOST 3/16" THICK BY 3/16" HIGH 61 MATERIAL BEST DEAL PRICE... 10/$1.75 1.3-3.6uh sold out LITMITED SUPPLY AVAIL. NEW OLD STOCK. Summer Special Delevan 2.0-6.0uh coil. $1.50ea. SIZE IS..3/4" LONG BY 1/4" DIA. INDUCTANCE IS LARGEST WINDING IS 1.948UH ADJ. SMALLER WINDING IS 1.555UH ADJ. USE AS IS OR REWIND TO YOUR SPECS. 3/$1.00 $0.79EA. VERY RARE ITEM.. VINTAGE ITEM..NO LONGER MADE
Special on the 301 METAL CANS. 5/$2.25 THE PIC. GIVES EXAMPLE OF WHAT YOU GET..LOTS OF DIFFERET TYPES AND SIZES LOOKS LIKE SOME SILVER SOLDER POSTS, GOLD POST AND SO FORTH..A GREAT LITTLE ASSORTMENT TO HAVE AROUND Summer special on the 100 assorted solder posts. 100/$1.50 INCLUDES MOUNTING WASHER AND NUT. VERY NICE. Best deal price.. 3/$3.00 THESE ARE NICE LITTLE PARTS Nice to have around when you need some 3/$1.00 lots of vaules. A great deal. transistor sockets. Nice 3 pin transistor sockets for transistors like fets and others where pins are in staight line on transistor. 10/$1.50 transistor sockets. 10/$1.50 CONTAINS HP AND OTHER BRANDS OF HOT CARRIER DIODES. THIS IS A GREAT DEAL $3.50 These 500 piece grab bags contain all kinds of fun stuff. Each bag will have over 500 pieces. Dan's has had these 500 piece grab bags many times over the years and found time to make up some more. The 500 Piece grab bags have a lot of left overs and discontinued items in them. Items that Dan's does not have enough stock left to list and etc. Price... Price... Close out special. 3 of the 500 piece grab bags for only $10.00 Notice: Due to weight of these 500 piece grab bags there is a limit of 1 of the 3 bag grab bag close out special per order.Thanks
2-5-70PF Murata Trimmer Capacitors
10 Pieces of a very nice 2.5-70pf 6mm Murata Trimmer Capacitors...
The Photo's below show you meter when lighted and then the other photo shows you other views of the meter.
The Photo above gives you a idea of what dip silver mica capacitors look like and is for reference only.
DIP SILVER MICA CAP KITS.
50 Piece Dip Silver Mica
Includes the following Dip Mica Capacitors.
2 Pieces 1500pf 10% tol. 500 Volt.Price..50 Piece dip mica kit sold out.
KEEP GOING LOTS MORE TO SEE!!
100 ASSORTED INDUCTORS AND IF CANS
HERE IS A DEAL..100 ASSORTED IF CANS AND INDUCTORS..SLUG TUNNED IF CANS ..COIL FORMS..CHOKES.....
1/4" to 1/4" Shaft Adapter
Here is a nice 1/4" to 1/4" shaft adapter.
Nice 20 piece feed thru cap kit.
5 Pieces 3000pf...300 volt.
Total of 20 Pieces......1/4" TO 1/4" COUPLER
These are 1" long.
or buy 3 Pieces for only
CL-191YG LEDS. { yellow-green }
These are very nice smt leds.
5.6UH Chokes 10% tol. (green-blue-gold) long leads.
Nice 15uh 5% tol. molded inductors..{brown-green-black-gold }
1000UH CHOKES..5% TOL. THRU HOLE.
Color code...Brown-Black-Red-Gold.
1MH CHOKES..{ 1000UH } 5% TOL.
10/$2.50
25/$5.00.01MF 50 VOLT MULTILAYER CAPS.
.1 Ceramic Capacitors.
HC-6 CRYSTAL SOCKETS
NICE HC-6 CRYSTAL SOCKETS....
50 Piece Iron Powder Core Kit.
Here is a handy 50 piece Iron powder core kit.
5 pieces T68-6 [ yellow ]
50 PIECE IRON POWDER-FERRITE CORE KIT
Here is a handy 50 piece Iron powder-ferrite core kit and includes the following listed below.
$18.50
Here is a handy 50 piece Iron powder-fair-rite core kit and includes the following listed below
PRICE........$17.50
10 Pieces of a 1000pf 250 volt feed thru capacitor.
.001MF 400 VOLT FEED THRU CAP DEAL
HERE IS A GREAT DEAL ON SOME VERY NICE STETTNER 1000PF { .001MF }400 VOLT FEED THRU CAPS.
1500 PF FEED THRU CAP DEAL
GREAT DEAL ON SOME 1500PF 350 VOLT FEED THRU CAPS.
Button Bypass Caps
Silver plated solder in bypass cap. 500v.
1-5-30PF CERAMIC MICA TRIMMER CAP.
NICE SMALL 1.5-30PF CERAMIC MICA TRIM CAP.
THREADED COIL SLUGS
Threaded Ferite coil slugs
10/$2.50
Nice Murata 2 pin 455khz ceramic resonators.
Here is a nice 100 Piece by-pass capacitor kit.
25 Pieces .1mf
Price on this nice 100 Piece by pass cap kit is...CL-191YG LEDS.
These are very nice smt leds.
680UH CHOKE 5% TOL. 650 MA.
Nice 680uh choke 650 ma. 5% tol. long leads..nice chokes.
Here are some nice 1000uh ( 1MH ) surface mount inductors...case size 1812 and 5% tol.
Nice to have around and price at...
25/$2.50ADAPTER KIT FOR APC TYPE AIR VAIRABLES
You got some apc-screw driver type air vairables in your junk box and want to put a 1/4" shaft on them?
CLICK HERE FOR INSTRUCTIONS ON HOW TO INSTALL THIS ADAPTER KIT.
HOW TO MAKE A AIR VAIRABLE SMALLER IN VAULE.
So maybe one of the panel mount air vairables here is not what you are looking for. Maybe you want or need a different vaule? No problem..you can fix that easy.
PHOTO NO. 1
10 Pieces of a nice Murata 2 pin 455khz ceramic resonators.
CL-191YG LEDS. { yellow-green }
These are very nice smt leds.
CLICK HERE FOR PIN OUT AND DATA.
Nice little audio amp ic's.
MMBF102LTI FET.(SURFACE MOUNT MPF102)
Here are some very nice 8 pin round ic sockets..these are great to use with the 8 pin ic's above.
CA3018A 12 PIN IC.
Nice CA3018A 12 PIN IC'S.
VARACTOR TUNING DIODE SPECIAL'S
Here are a few Varactor tuning diode specials.
10 MVAM108'S
10 Pieces MVAM108 VARACTOR TUNING DIODES
5 PIECE IC DEAL.
Nice usefull 5 Piece thru hole IC deal.
3 Pieces SA602AN...8 PIN-THRU HOLE IC.
220UH SMT INDUCTOR..NICE ITEM..AND SIZE AT BASE IS..AROUND 7MM SQUARE
PRICE..BAG OF 10 PIECES
.1MF SURFACE MOUNT CAPS.
OR 300 FOR $6.00
OR 300 PIECES FOR $6.00
PRICE..25 PIECES FOR $2.00
PRICE..STRIP OF 5 PIECES FOR $4.00
FAIR CHILD INTERGRATED LOAD SWITCH
PRICE..STRIP OF 10 PIECES FOR..$2.00
UPC1675G 1.9GHZ GENERAL PURPOSE SILICON MMIC AMP
BEST DEAL..
Price...
BEST PRICE DEAL...
100K Panel Pot Linear taper w-hardware and w/knob
Price for pot and knob.
$4.25 EA.
$1.75 EA.
JACKSON BRO'S 2.5-14.5PF DIFFERENTIAL CAP..500 VDC..1/2" LONG BY 3/8" WIDE
JACKSON BRO'S 2-15PF AIR TRIMMER..500 VDC
HARD TO FIND 2.5-40PF MICA CERAMIC COMPRESSION TRIMMER CAP.
PRICE..$1.25 EA.
2.5-30PF MICA CERAMIC TRIMMER CAP
BEST DEAL..10/$1.50
SPRAQUE GOODMAN GYC4000 3.5-40PF 10MM TRIMMER CAP. VOLTAGE RATING 100 VDC
BEST DEAL..5/$3.00
SPRAQUE GOODMAN TYPE TRIMMER CAP
BEST DEAL..5/$3.50
SMALL SPRAQUE TYPE 2.2-22.5 TRIMMER CAP.
SPRAUGE GOODMAN 0-10.5PF 350 VDC GLASS PISTON CAP
PRICE..$1.25 EA.
BEST DEAL..5/$2.50
BEST DEAL..5/$1.50
DUAL CERAMIC MICA TRIMMER CAP..350 VDC
PRICE $1.00EA.
BEST DEAL..5/$1.50
2.0-25PF LITTLE TRIMMER CAP. 100VDC RATING..
100UH CHOKES..650MA 10% TOL.
PRICE..25/$3.00
BEST DEAL PRICE...
BEST DEAL PRICE...
500-OHM 15 TURN TRIM POT BY MURATA
BEST DEAL PRICE...
PRICE...5/$1.00
OR 10/$1.50
AVID HEATSINK
HERE IS A VERY NICE HEAVY DUTY HEATSINK
PRICE
$5.00 EACH.
DPDT TOGGLE SWITCH "ON-OFF-ON"
LITTLE STACK POLE BALUN CORE
$3.50 EA.
DUAL FT-243 CRYSTAL SOCKET
SOLD OUT
MILLEN HC-6 CERAMIC CRYSTAL SOCKETS.
PRICE...$2.50 EA.
PRICE..$2.00 EA.
100 ASSORTED SOLDER POSTS
AMPHENOL PANEL MOUNT BNC JACK.
PRICE..$1.65 EA.
PANEL MOUNT BNC CONNECTOR WITH MOUNTING NUT
ITEM
9 Volt battery snaps
3 Pieces 9 volt battery snaps
Price...
25/$2.50
3 Pin in line
3 Pin in line transistor sockets.
price on these nice 3 pin inline transistor sockets.
4 Pin in line
Nice 4 pin inline transistor sockets.
price on these nice 4 pin inline transistor sockets.
1 MHZ CRYSTALS
$1.00 EA.
500 Piece Grab Bags
500 piece plus grab bags are back.
$6.50
