NOTICE:This is Dan's Internet Catalog No. 8 and all other on-line Catalogs are no
longer valid. Please make sure that you are ordering from this Cat. INTERNET
CATLOG NO. 8 This on line Catalog will be updated often.

CHECK OUT DAN'S NEW SPECIAL DEALS NO 2
CLICK HERE
LOTS OF GREAT DEALS..SO TAKE A MOMENT AND VISIT THERE

**********NOTICE**********
THE UNITED STATED POSTAL SERVICE WILL RAISE THEIR RATES EVERY YEAR IN MAY.

DAN'S INCREASED SHIPPING TO USA ZIP CODES A SMALL AMOUNT JULY 19TH, 2008.. THIS IS THE 1ST INCREASE IN SHIPPING FROM DAN'S IN ABOUT 3 YEARS..THE POSTAL SERVICE ALONG WITH ALL THE OTHER SHIPPING SERVICES HAVE RAISED THEIR RATES AT LEAST 3 TIMES OR MORE IN THE LAST 3 YEARS.
THE POSTAL SERVICE WILL RAISE THEIR INSURANCE RATES EVERY YEAR ALSO IN MAY.
DAN'S WILL NOT ASSUME OR BE RESPONSBILE FOR ANY PACKAGE NOT INSURED....DAN'S RECOMENDS YOU INSURE YOUR PACKAGE..
NOTICE POSTED JULY 19TH,2008

CHECK OUT DAN'S NEW CLOSE OUT AND SPECIAL DEALS SITE.
CLICK HERE

PLEASE READ BELOW HOW TO ORDER..DAN'S DOES NOT TAKE CREDIT CARDS...ALSO DAN'S DOES NOT TAKE ORDERS OVER THE PHONE...

DONT'T MISS DAN'S CLOSE OUT SECTION AT BOTTOM OF PAGE .... LOTS OF GOOD ITEMS THAT WHEN SOLD OUT WILL NEVER RETURN CHECK IT OUT!

HOW TO ORDER..
Use what ever handy for a order form and a copy will be returned with your order.
CLICK HERE FOR ORDER BLANK
Please make sure that payment along with the CORRECT SHIPPING is included with order and send your order to
DAN'S SMALL PARTS AND KITS
BOX 3634
MISSOULA, MT. 59806
Please include your phone no. on your order and this is mandatory for all international orders, there have been some recent changes in custom policy regarding this and if you do not include your phone no. with your order, Dan's will not be able to process..

SHIPPING AND HANDLING

Shipping charges for USA AND Possesions WILL BE $6.75 UP TO $75.00..
AND OVER $75.00 ADD $10.00 FOR SHIPPING
NOTE: SHIPPING DOES NOT INCLUDE INSURANCE..WANT YOUR PACKAGE INSURED...USE THE TABLE BELOW FOR COST..
Please make sure you include the correct amount for shipping,if your order does not include the correct amount for shipping..Dan's will not be abel to process your order, and your order will be returned...
INSURANCE RATES EFFECTIVE FEB 1ST, 2010
INSURANCE COSTS BELOW
$0.01 to $50 $1.75
$50.01 to $100 $2.25
$100.01 to $200 $2.75
$200.01 to $300 $4.70
$300.01 to $400 $5.70
$400.01 to $500 $6.70
$500.01 to $600 $7.70

FOR ORDERS MORE THAN $600.00 GO TO THE USA POSTAL WEB SITE AND GET THE COST THERE..
If you choose not to insure your package then you assume all risks to loss and damage and so forth...Dan's Small Parts and Kits will not assume responsiblity for uninsured packages....
*****WANT FREE SHIPPING?*****
READ HOW BELOW

*** THE FREE SHIPPING OFFER DOES NOT INCLUDE INSURANCE
IF YOU WANT TO INSURE YOUR ORDER
SEE THE INSURANCE INFORMATION ABOVE FOR THE
COST. ***

ON ALL ORDERS $75.00 OR GREATER AND THAT ARE PAID FOR WITH A USA POSTAL MONEY ORDER ONLY!!!!

PLEASE MAKE SURE YOU UNDERSTAND THIS OFFER..AND OFFER IS FOR CUSTORMERS IN THE USA ONLY.

NOTICE: Orders less than $75.00 or orders paid with other than USA Postal Money order..do not qualify for the free shipping offer above.
If shipping is not included in orders that do not qualify for the free shipping deal.....Your order will not be processed and will be returned.

Shipping charges to Canada
are $16.50 and due to the high cost of insurance Dan's does not offer this service..Please be advised that you assume all risks and have been notifed here within and are aware of this before you place your order..Dan's will obtain proof of mailing from the Postal Service at time of mailing and will keep this on file for up to one year...(what this means is this will verify that Dan's did mail your order to you to the correct address supplied with your order)
All other international orders
Shipping charge will be $20.00 and due to the high cost of insurance Dan's does not offer this service..Please be advised that you assume all risks and have been notifed here within and are aware of this before you place your order..Dan's will obtain proof of mailing from the Postal Service at the time of mailing and will keep this on file for up to one year..(what this means, is this will verify that Dan's did mail your order to you to the correct address supplied with your order)
PAYMENT
Dan's accepts checks and money orders, and cash and prefers USA POSTAL MONEY ORDERS....All other forms of payment subject to clear before order is shipped....If INTERNATIONAL Payment must be in form of international money order, and Western Union money orders fine( MUST BE USA DOLLARS AND DRAWN ON USA BANK ).
CANADIAN postal money order in USA dollars prefered method of payment for orders from Canada. ...DAN'S DOES NOT ACCEPT CREDIT CARDS..NO COD.. NOR DOES DANS CARRY ACCOUNTS..PAYMENT IN FULL MUST ACCOMPANY ALL ORDERS

Backorders
Dan's does not back order and a refund for items either not in stock or sold out will be enclosed with your order.
RETURNS
Items may be returned as shipped by Dan's within 30 days of purchase...customer will pay shipping charges on all returns.
Items returned must not have been used..soldered and must be in the same condition they were when shipped..kits must be returned as received and no returns on kits that have been started will be accepted for return by Dan's.
Dan's reserves the right to refuse a return if the above conditions are not adhered too.
OTHER IMPORTANT INFORMATION
TURN-A-ROUND TIME
Dan's has a 1 to 10 day turnaround time from the time order is received by Dan's and in most cases 3 to 4 days...Dan's has found that the USA POSTAL SERVICE is the best choice over all and this is the service Dan's uses to ship all items.Dan's does not ship by UPS OR FED-X OR DSL...
DISCLAIMER
Please be aware that none of the products offered for sale by Dan's Small Parts and Kits, are intended.. nor suitable for use in end products, that are used for medical equipment, life support systems,nuclear facilities,human implantabel devices and so forth...they are sold for the enjoyment of electronic hobbyist,electronic experimenter's and Amateur Radio builders..
NOTE
Price and availablity of items subject to change with out notice..

NOW FOR THE FUN STUFF

CLICK HERE FOR MORE FUN
IMPORTANT NOTICE:
ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.
CLICK HERE

JUNCTION FIELD-EFFECT TRANSISTORS:
2N5951 N-CHANNEL J-FETS..3/$1.00

MPF-102..PRICE 3/$1.25
10 PACK OF THE MPF-102'S ... $2.50
2N5486..PRICE 3/$1.25

2N3819..PRICE 3/$1.25

2N5457..PRICE ... 3/$1.25

J-305.. TO-92 PACKAGE
SAME PINOUT AS THE 2N5486,MPF102, ETC. FETS.
THIS J-FET IS COMPARABLE IN PERFORMANCE TO A 2N4416A AND A 2N5486
AND BETTER THAN A MPF102
IT FEATURES A COMMON SOURCE POWER GAIN OF 11 AT 400MHZ
20 AT 200MHZ, A NOISE FIG. 3.8DB AT 400MHZ AND 1.7DB AT 100MHZ...PRICE 3/$1.50
J-309..PRICE ... 3/1.50

J-310...PRICE 3/$1.50

2N4416A TO-18 4 PIN METAL CAN PRICE ... $1.95 EA.

2N5485...PRICE ... 3/$1.25

PN4416 J-FET..PRICE ... 3/$1.25

2N5555..PRICE ... $3/1.25

2N5459/MPF-105..PRICE ... 3/$1.25

DUAL GATE MOSFETS:

NOTE: THE DUAL GATE MOSEFTS OFFERED BELOW ARE NO LONGER MADE.

BF981 DUAL GATE MOSEFT.
.7DB NOISE FIG. AT 200 MHZ
PIN OUT AND DATA HERE
PRICE...$1.75 EA.
SPECIAL DEAL.
5 BF981'S FOR $5.00
Or buy 10 pieces for only...
10/$7.50

RCA-40673 4 PIN METAL CAN TO-18..PRICE...$6.50 EA.

RCA-3N211 4 PIN METAL CAN TO-18..PRICE...$6.50 EA.

3N201 4 PIN METAL CAN TO-18..PRICE ... $5.00 EA.

3N204 ... 4 PIN METAL CAN TO-18 PRICE ... $5.00 EA.

3N200 ... 4 PIN METAL CAN TO-18 PRICE ... $5.00 EA.

MFE-131 ... 4 PIN METAL CAN TO-18 PRICE ... $5.00 EA.

RCA-40820..4 PIN METAL CAN TO-18 PRICE ... $5.00 EA.

MPF-131 ..PIN OUT SHEET SUPPLIED WITH PART..PRICE..$3.50 EA.

RCA-40822..4 PIN METAL CAN TO-18 PRICE ... $5.00EA.
GOOD REPLACEMENT FOR RCA-40673

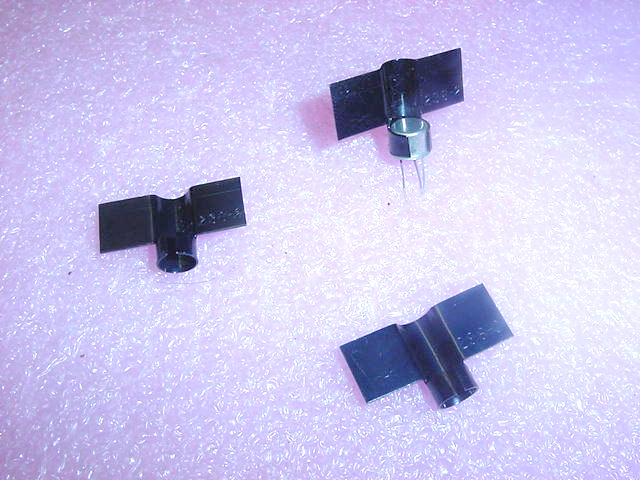

HEATSINKS FOR TO-18 AND TO-72 METAL CANS AND ALSO WORK ON TO92 PACKAGE....PRICE...10/$1.50

LOW POWER TRANSISTORS

2N2222A TO-18 METAL CAN PRICE ..... 10/$2.50
FAIRCHILD MPSH-81 TO-92 PNP UHF/VHF TRANSISTORS ..... 10/$1.00
FAIRCHILD MPSH-10 TO-92 NPN UHF/VHF TRANSISTORS ..... 10/$1.00

2N3906..TO-92..PNP..PRICE ..... 10/$1.00
2N3904 TO-92 NPN PRICE ..... 10/$1.00
PN2907A TO-92 PNP PRICE ..... 10/$1.00
BC548 LOW NOISE NPN TO-92 PRICE ..... 10/$1.00
BC257..PNP HIGH GAIN ..... 10/$1.00
PN2222A'S TO-92 NPN PRICE ..... 10/$1.00
2N3565 TO-92 NPN PRICE ..... 10/$1.50
2N4401 TO-92 NPN PRICE ..... 10/$1.00

2N4403 TO-92 PNP PRICE ..... 10/$1.00
2N4126 TO-92 PNP PRICE ... 10/$1.00
2N4124 TO-92 NPN PRICE ..... 10/$1.00
2N2369 TO-18 METAL CAN NPN .....$3/$1.00
2N2219A TO-39 NPN METAL CAN PRICE ..... $3/$1.00
2N3053 TO-39 NPN METAL CAN ..... $1.00EA.
2N4036 PNP TO-39 METAL CAN PRICE ..... $1.00
2N4037 PNP TO-39 METAL CAN .....$1.00 EA.

CLICK HERE FOR MORE GREAT TRANSISTOR DEALS

RF TRANSISTORS
MRF476/2SC2075 TO-220 PACKAGE ..... PRICE..$3.50 EA.

MRF517 TO-39 METAL CAN .....$2.50 EA.
2N5109..TO-39 METAL CAN..PRICE.....$2.85 EA.
2N3866 T0-39 METAL CAN..PRICE.....$2.85 EA.
2SC2078 TO-220 PACKAGE.....PRICE $3.50 EA.
MRF472 PRICE ..... $3.75 EA.
MOTOROLA MRF8004 TO-39 3.5 WATT AT 27MHZ..PRICE...$3.75 EA.
MRF8004 DATA SHEET HERE
2SC1678 TO-220 PACKAGE PRICE ..... $3.50 EA.
PN918 TO-92 PRICE ..... 10/$1.00
2N2857 TO-18 METAL CAN PRICE .....$1.50 EA.
2N3823 TO-18 METAL CAN PRICE .....$1.00 EA.
PN5179 TO-92 ...PRICE ..... 10/$1.00
2SC1957 PRICE ..... $2.50 EA.

2N7000 TO-92 PRICE ..... 3/$1.25

MOTOROLA 2N5179 TO-18 METAL CAN PRICE ..... $1.85 Ea.

BF181 4 PIN METAL CAN TO-18 4 PINS..LONG LEADS...VHF-UHF NPN AMP, MIXER/OSC TRANSISTORS NICE PARTS PRICE ..... 2/$1.00
2N5770 ..TO-92 PRICE ..... 10/$1.00
2N5859 TO-39 METAL CAN PRICE ..... $2.65 EA.
2N918..TO-18 METAL CAN PRICE ..... 2/$1.00
2N5189 TO-39 METAL CAN ..... PRICE 2/$1.00
2N5320 TO-39 METAL CAN PRICE ..... $1.00
2N5321 TO-39 METAL CAN PRICE ..... $1.00
IRF-510 TO-220 PACKAGE PRICE ..... $2.00 EA.
IRF-610 TO-220 PACKAGE PRICE....$1.00 EA.
VN10K TO-92 ..... PRICE $1.00 EA.

2N3478 TO-72 4 PIN METAL CAN..(SAME PIN OUT AS 2N5179)for VHF/UHF APPLICATIONS
FEATURES
Hi gain-bandwidth product-
ft=900mhz typical
Low noise figure
noise fig. 5db typical at 470mhz
4.5db Max at 200mhz
2.5db typical at 60mhz
Hi unneautralized power gain
gpe = 11.5db at 200mhz
hermatically sealed 4 lead metal can package
all active elements insulated from case
low collector to base feedback capacitance Ccv 0.7pf Max
GOOD REPLACEMENT FOR THE 2N5179..
PRICE ..... $.75

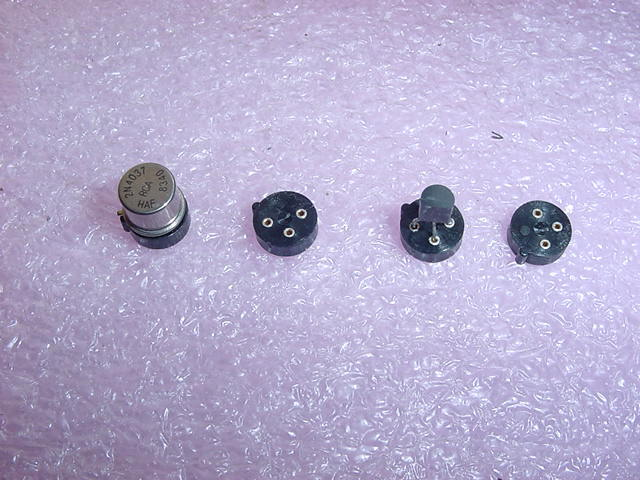

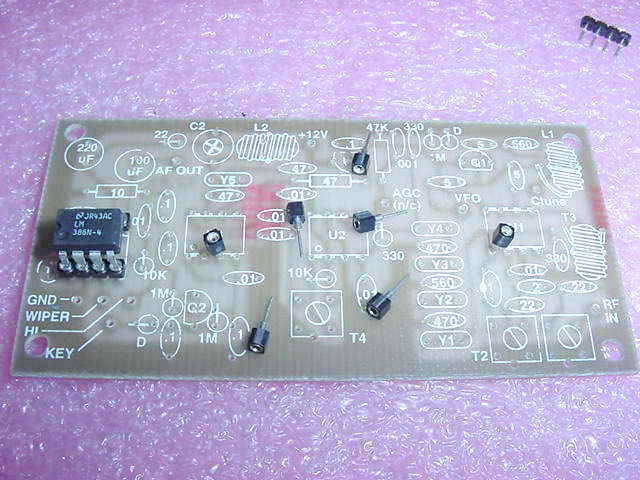

TO-39 OR T0-5 OR T0-92 TRANSISTOR SOCKETS.

Very nice transistor 3 pin sockets.
Inner part of pins on sockets are gold plated so the transistor gets a good conneciton in the socket.
These will work for TO-5 OR TO-39 Metal can transistors and also TO-92 or other type 3 pin transistors.
Price..2 for..$1.00
Or buy 10 of these nice sockets for.......
10/$3.50

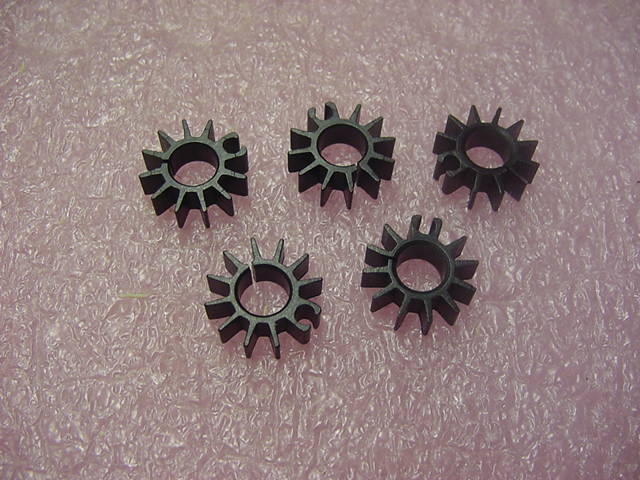

HEAT SINKS FOR TO-18 AND TO-72 AND ALSO WORK ON TO-92 PACKAGE...PRICE...10/$1.50

LOTS OF SPECIAL DEALS..CLICK HERE

VOLTAGE REGULATORS
7805 TO-220 PACKAGE PRICE ..... $0.59 EA.
7806 TO-220 PACKAGE PRICE ..... $.59 EA.
7809 TO-220 PACKAGE PRICE.....$.59 EA.

7808 TO-220 PACKAGE PRICE ..... $.59 EA.
Special deal on the 7808's..buy 10 pieces for only...
10/$2.50

7812 TO-220 PACKAGE PRICE ..... $.59 EA.
LM317-T TO-220 PACKAGE PRICE ..... $1.00 EA.
LM337-T TO-220 PACKAGE...PRICE $1.00 EA.
78L24 TO-92 PACKAGE PRICE ..... $.59 EA.
78L18 TO-92 PACKAGE ..... $0.59 EA.
78L15 TO-92 PACKAGE ..... $0.59 EA.
78L12 TO-92 PACKAGE ..... $0.59 EA.

78LO9 TO-92 PACKAGE PRICE ..... $.59 EA.

78L08 TO-92 PACKAGE PRICE ..... $.59 EA.
78L06 TO-92 PACKAGE PRICE ..... $.59 EA.

78L05 TO-92 PACKAGE PRICE ..... $.59 EA.

LM385BZ PRECISION VOLTAGE REG. TO-92 PRICE ..... $1.25 EA.
LM337Z TO-92 PACKAGE NEG. ADJ. VOLTAGE REG. PRICE ..... $1.25 EA.
TL431C PRECISION ADJUSTABLE SHUT VOLTAGE REGULATOR...3 PIN TO-92
PACKAGE..ADJ. FROM 2.5-36 VOLTS PRICE ..... $.59 EA.

IMPORTANT NOTICE:
ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.
CLICK HERE

LINEAR AND OTHER IC'S
MC1350P 8 PIN DIP PRICE ..... $3.50 EA.
CA3102E 14 PIN DIP PRICE ..... $4.00 EA.
NE602AN 8 PIN DIP PACKAGE PRICE ..... $3.85 EA
SA612AN 8 PIN DIP PACKAGE PRICE ..... $3.85 EA.

LM358 8 PIN DIP PACKAGE PRICE ..... $.79 EA.
CA3046 14 PIN DIP PACKAGE PRICE ..... $1.25 EA.
CA3160 8 PIN DIP PRICE ..... $1.00 EA.
LM386-1 8 PIN DIP PRICE ..... $1.00 EA.
LM386-3 8 PIN DIP PRICE ..... $1.35 EA.
LM380 14 PIN DIP 2 WATT AUDIO AMP PRICE ..... $1.35 EA.
LM301AN 8 PIN DIP PRICE...3/$1.25
LM380-N 8 PIN DIP PRICE ..... $1.25 EA.
LM1496P 14 PIN DIP PRICE ..... $1.35 EA.
LM-1496H 10 PIN METAL CAN PRICE ..... $4.00 EA.
MC1458 8 PIN DIP PRICE ..... $.65 EA.
TLO-74 14 PIN DIP PRICE ..... $0.89 EA.
TLO-84 QUAD OP AMP 14 PIN PRICE ..... $1.50 EA.
TLO-81 8 PIN DIP PRICE ..... $.79 EA.
TL0-72 8 PIN DIP PRICE ..... $.69 EA.
TLO-82 8 PIN DIP PRICE ..... $.79 EA.
LM324 14 PIN DIP PRICE ..... 3/$1.00
LM301-H 8 PIN CAN PRICE ..... $1.00
Special deal on the LM301-H Metal cans...
10/$3.50
NE5532N OR P 8 PIN DIP PRICE ..... $.89 EA.
NE556 14 PIN DIP PRICE.....$0.69 EA.
LM301AN 8 PIN DIP PRICE...2/$1.00
NE5534N 8 PIN DIP PRICE ..... $.89 EA.
NE555 8 PIN DIP PRICE ..... $.59 EA.
MC1455PI 8 PIN DIP (MOTOROLA IMPROVED VERSION OF THE NE555) PRICE ..... 3/$1.00

*****LM4871N AUDIO AMP'S*****

HERE IS A NICE 1.5 WATT AUDIO AMP 8 PIN DIP IC
LOW VOLTAGE...COMPLETE DATA INFO
CLICK HERE
VERY NICE AUDIO AMPS...PRICE...$1.00EA.
OR LIMITED TIME OFFER........5/$3.00

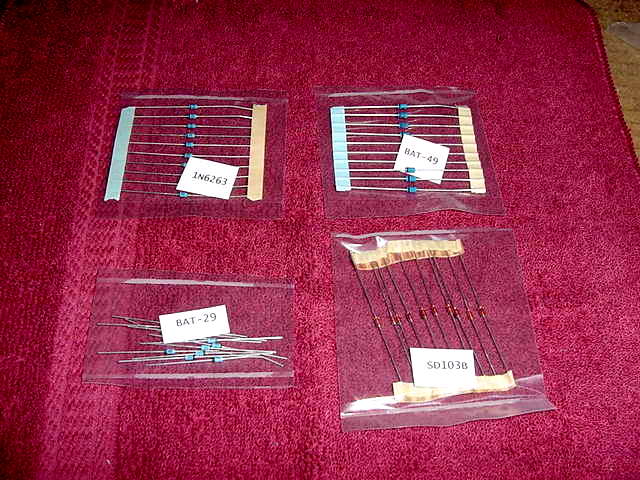

SMALL SIGNAL SCHOTTKY DIODES
BAT85 DO-35 PACKAGE LONG LEADS..PRICE.....10/$3.50
BAT49 DO-35 PACKAGE LONG LEADS..PRICE.....10/$3.50
BAT29 DO-35 PACKAGE LONG LEADS PRICE ..... 10/$3.50
HP-1N5711 DO-35 PACKAGE LONG LEADS PRICE ..... 10/$3.50
SD103B SCHOTTKY SWITCHING DIODES DO-35 PACKAGE ..... 15/$1.00
1N6263 DO-35 PACKAGE LONG LEADS PRICE ..... 10/$3.50

PIN DIODES
MPN3401 PIN DIODES.

MPN3401 Pin didoes..nice parts...price...
10/$5.00
CLICK HERE FOR DATA SHEET

MPN-3404 TO-92 PACKAGE 2 LEADED RADIAL DEVICE PRICE ..... 5/$3.50

HYPERABRUPT VARACTOR TUNING DIODES.

MVAM108...PRICE....$1.65 EA.
BB329 2.2-12.5PF DO-35 PACKAGE 5/$1.00
BB409 5-32PF DO-35 PACKAGE 2/$1.00
MV209 TO-92 PACKAGE PRICE $1.65 EA.
MVAM109 .....TO-92 PACKAGE PRICE $1.65 EA.
MV1662 TO-92 PACKAGE PRICE $1.65 EA.

MV2101 TO-92 PACKAGE $1.35 EA.
MV2102 TO-92 PACKAGE PRICE $1.00 EA.
MV2107 TO-92 PACKAGE $1.35 EA.
MV2109 PRICE TO-92 PACKAGE $2/$1.00
MV2115 TO-92 PACKAGE PRICE ..... $2.00 EA.
MV1644 PRICE TO-92 PACKAGE $1.00 EA.
MV2209 TO-92 PACKAGE PRICE $1.00 EA.
MV2301 120PF TO-92 PACKAGE 2/$1.00

1S2208 13PF GOOD REPLACEMENT FOR THE MV2103 PRICE ..... 3/$1.00

SIEMENS BB104 DUAL 35 PF TUNNING DIODE ( CENTER PIN COMMON ) PRICE ..... 2/$1.00

GERAMIUM AND OTHER DIODES

1N34A ..... ~~10/$3.50~~
Limited special..20 Pieces 1N34A For only...
20/$5.00
This is a $2.00 savings over the reg price of 10/$3.50

1N60A ..... 10/$3.50
1N82 ..... 10/$3.50
1N270 ..... 10/$5.00
1N541 ..... 10/$3.50
1N914B ..... 35/$1.00
1N4001 .....20/$1.00
1N4004 ..... 20/$1.00
1N4148 ..... 50/$1.00

ZENER DIODES
PRICE ON THESE DIODES ARE 6/$1.00 SAME VAULE, NO MIXING.
1N5239/9.1 VOLT *** 1N4752/33 VOLT *** 1N5252/12 VOLT *** 1N5245/15 VOLT
1N5234/6.2 VOLT *** 1N5228 3.9V *** 1N523/4.7 VOLT *** 1N5252/24 VOLT *** 1N4734/5.6 VOLT
1N5231/5.1 VOLT *** 1N5229/4.3 VOLT *** 1N5235/6.8 VOLT *** 1N5236/7.5 VOLT
1N5732B/8.2 VOLT *** 1N4748/22 VOLT *** 1N5241/11 VOLT

CLICK HERE FOR MORE DIODE DEALS

CERAMIC RESONATORS AND FILTERS.
455 KHZ CERAMIC RESONATORS $1.00 EA.
500 KHZ CERAMIC RESONATORS...SPECIAL DEAL..10/$1.00
3.84 MHZ CERAMIC RESONATORS $0.79 EA.
8 MHZ CERAMIC RESONATORS..$0.79 EA.
4.O MHZ CERAMIC RESONATORS 2 PIN TYPE NO BUILT IN CAPACITOR ..... 10/$1.00

4.039 MHZ ..... $0.79 EA.
MURATA SFE 10.7 MA5-1 CERAMIC FILTER (RED DOT) ..... 10/$1.00
MURATA SFE 10.7 MA21 CERAMIC FILTER (YELLOW DOT) ..... 10/$1.00
MURATA 100 MHZ CERAMIC RESONATORS ..... 3/$1.00
MURATA 10 MHZ CERAMIC RESONATORS ..... 3/$1.00

CRYSTALS

3.6864 MHZ HC18-U PACKAGE..PRICE $1.00 EA.
14.251 MHZ HC18-U PACKAGE ..... $1.00 EA.
19.5 MHZ HC18-U PACKAGE ..... $1.00 EA.
6.000 MHZ HC18-U PACKAGE ..... $1.00 EA.
6.690666 MHZ HC18-U PACKAGE ..... $1.00 EA.
14.7456 MHZ HC18-U PACKAGE ..... $1.00 EA.
3.57695 MHZ HC18-U PACKAGE ..... $1.00 EA.
MATCHED CRYSTALS BELOW
10 MHZ HC18-U PACKAGE ..... 6/$6.00
12.000 MHZ CRYSTALS HC18-U PACKAGE ..... 6/$6.00
4.000 MHZ HC18-U PACKAGE ..... 6/$6.00
4.032 MHZ HC18-U PACKAGE ..... 6/$6.00
9.600 MHZ HC18-U PACKAGE ..... 6/$6.00
8.000 MHZ HC18-U PACKAGE .... 6/$6.00
8.192 MHZ HC18-U PACKAGE ..... 6/$6.00

100 ASSORTED CRYSTALS.
LOTS OF VAULES.
100/$5.00

INA-10386
LOW NOISE, CASCADABLE
SILICON BIPOLAR MMIC AMPLIFIER
FEATURES
CASCADABLE 50 OHM GAIN BLOCK
3DB BANDWIDTH:
DC TO 1.8 GHZ
26DB TYPICAL GAIN AT
1.5 GHZ
CLICK HERE FOR DATA SHEET
THE INA-10386 IS A LOW NOISE SILCON BIPOLOR MONOLITHIC MICRO WAVE INTERGRATED CIRCUIT FEEDBACK AMPLIFIER HOUSED IN A LOW COST SURFACE MOUNT PLASTIC PACKAGE..
THESE WOULD MAKE A GOOD REPLACEMENT FOR THE MAR-1
CHECK OUT THE SPEC'S
THESE ARE PACKAGED IN THE FACTORY TAPE...PRICE ON THESE ARE ..... $2.85 EA.

MINI-CIRCUITS PRODUCTS
MAR-1 ..... $1.85 EA.

MAR-3 ..... $2.65 EA.

MAR-4 ..... $2.50 EA.
MAR-6 ..... $2.75 EA.
ERA-2 ..... $2.25 EA.
SBL-1X.....$7.95
SBL-1.....$7.95 EA.

MINI-CIRCUITS ADE-1 SURFACE MOUNT MIXER.

New Minicircuits ADE-1 mixer and includes the little adapter board shown in photo.
By using the little adapter board this makes a lot easier job of using the smt ADE-1 mixer.
The size of the little pc board is 3/4" by 15/16" aprox.
The ADE-1 is the surface mount version of the thru hole SBL-1
The small dot on the ADE-1 is pin 1.
For complete data sheet and infor on the ADE-1
CLICK HERE
Price for the ADE-1 mixer and the board is..
~~$6.00~~
SHORT TERM SPECIAL ON THE ADE-1'S WITH BOARD...
$4.50EA.

Note: The ADE-1 mixer is not soldered to the board shown in photo.
Also ADE-1 is not sold separate and neither is the little board.
MORE PHOTOS.

UNCL-R1H-2 MIXER ..... $7.00 EA.
MCL PLP-750 LOW PASS FILTER ..... ~~$8.50~~
PRICE REDUCED TO...$4.50 EA.

MCL T4-1 RF TRANSFORMER .05-200MHZ
THESE ARE NEW AND MINI-CIRCUITS CURRENT PRICE FOR 1 PIECE IS CLOSE TO $5.60EA.
DAN'S SPECIAL PRICE IS ONLY....$3.25 EA.
MCL T1-1T RF TRANSORMER .08-200 MHZ
THESE ARE NEW AND THRU HOLE TYPE.MINI-CIRCUITS PRICE 1-9 PCS IS $4.45EA. DANS PRICE IS $3.50 EA.

UPCI651G
Description:
UPC1651G is a silicon monolytic integrated circuit , especially designed as a wide band amplifier ..high frequency through UHF...
Excellent frequency response: Typical 1200 MHZ
High power gain: Typical 19db at 500 MHZ
Low voltage operation, 5 volt
see pic. for pin out infor
PRICE ..... $2.50 EA.

TOKO 3 PIN 455 KHZ IF TRANSFORMER SET.
This is a 3 piece set includes 1ST IF YELLOW, 2ND IF WHITE AND 3RD IF BLACK.
The size of these are 10 MM. see cans in pic. below, they are the 3 in a row (top of pic.)
and a pin out sheet is provided with the cans.
PRICE FOR THIS 3 CAN SET IS $2.50

1 UH 7MM SINGLE WINDING IF CAN.
Nice little cans and middle can, bottom row. (see pic. above)
These have a little knob for adj. or use tunning tool.
PRICE ..... 5/$1.00

4 UH 7MM SINGLE WINDING IF CAN.
Nice little cans and middle can. bottom row.(see pic. above)
These have a little knob for adj. or use tunning tool.
PRICE ..... 4/$1.00
10:7 MHZ IF CAN. PART NO.IF123 See can, bottom row to right in pic. above.
These are the 10.7 MHZ cans that are used in the Neophyte, NNIG RIG, and other rigs and projects out there.
PRICE ..... $1.65 EA.

10 ASSORTED 455KHZ IF CANS..10MM SIZE..BUY 10 FOR $2.50

IC SOCKETS.

GREAT DEAL ON 8 PIN PRECISION MACHINED IC SOCKETS..GOLD INNER CONTACTS..CLICK HERE.

8 PIN IC SOCKETS PRICE ..... 6/$1.00

14 PIN IC SOCKETS ..... 6/$1.00
16 PIN IC SOCKETS ..... 6/$1.00
20 PIN IC SOCKETS ..... 6/$1.00

20 PIN MACHINE SIP SOCKETS.

Here are some nice precision sip sockets.
You can make your own precision ic sockets with these...look at photo of the NNIG receiver board.
Use to make HC-18U Crystal sockets..etc...
The inner part is gold plated.
Each row has 20 sockets and this deal is for 10 pieces..{200 single pin sockets }
That is enough to make 25 8 pin precision ic sockets or 14 of the 14 pin ic sockets or 12 of the 16 pin ic sockets..so you can do a lot with these.
special deal 10 rows with 20 pins per row ( 200 pins ) for only
$2.75

MIL-MAX 8 PIN PRECISION MACHINED IC SOCKETS

HERE ARE SOME VERY NICE PRECISION MACHINED 8 PIN IC SOCKETS.....THESE ARE OVER $.50 CENTS EA. AT YOUR MAJOR PARTS HOUSES..CHECK IT OUT...THE NEAT THING ABOUT THESE IS YOU CAN USE 2 SIDE BY SIDE AND HAVE A 16 PIN IC SOCKET..OR EVEN A 14 PIN IC SOCKET..AND JUST CLIP THE LAST 2 PINS OFF..OR NEED A NARROW WIDTH 24 PIN IC SOCKET..USE 3 OF THEM IN A ROW..THESE ARE SOLD AS FOLLOWS...
BAG OF 25 PIECES FOR...
$5.00

CHECK OUT DIGI-KEY PRICE!!!

CLICK HERE
SO GET SOME WHILE AVAILABLE..

8 PIN PRECISION SIP SOCKETS BY MIL-MAX

100 Pieces 8 pin precision sip sockets by MIL-MAX.
100 Pieces will make 50 16 pin ic sockets
100 Pieces will make 100 8 pin ic sockets.
Price on 100 of these nice 8 pin precision machined sip sockets...
100/$10.00

100 PIECES NICE 4 PIN PRECISION SIP SOCKETS.

100 Nice precision 4 pin sip sockets.
Price on these...
100/$5.00

100 PIECES PRECISION 8 PIN SIP SOCKETS.

100 Nice 8 pin precision 4 pin sip sockets
Gold plated inside cup for great cconductivity
Price on these very nice precision 8 pin sip sockets...
100/$6.00

100 1 PIN PRECISION SIP SOCKET

100 Very nice 1 pin precision sip sockets.
Price on these...
100/$3.00

100 ASSORTED SAMTEC CONNECTORS AND SOCKETS

100 Plus assorted Samtec connectors and sockets
Price on these...
100/$1.00

TRANSISTORS SOCKETS:
TO-3 POWER TRANSISTOR SOCKETS 10 AMP RATING ..... $2.00 EA.
SHORT TERM SPECIAL ON THE TO-3 SOCKETS...BUY 5 FOR $3.00
SEE GREEN SOCKET IN PIC. ABOVE.
T0-3 MICA INSULATORS ..... 10/$1.00
3 PIN INLINE TRANSISTOR SOCKET
THIS IS A GOOD SOCKET FOR J-FETS AND LITTLE VOLTAGE REGULATORS
SEE PIC. BELOW.
AND OTHER DEVICES WITH 3 IN LINE LEADS
$3/$1.25
3 PIN TRANSISTOR SOCKET FOR TO-92 ..... 3/$1.00

4 PIN TRANSISTOR SOCKET FOR TO-18 PACKAGE ..... $2/$1.00>
8 PIN ROUND IC SOCKET FOR 8 PIN METAL CAN IC'S ..... 3 FOR $1.00 EA.
SEE PIC. BELOW FOR DESCRIPTION OF SOCKETS ABOVE.

CRYSTAL SOCKETS
HC-6 CRYSTAL SOCKET (BLACK SOCKET IN PIC. ABOVE)
PRICE $1.25 EA.

MILLEN HC-6 CERAMIC CRYSTAL SOCKETS
(WHITE SOCKET IN PIC. ABOVE)
..... $2.50 EA.
HC-18U AND HC-49U CRYSTAL SOCKETS.
NO PIC ..... 2/$1.00

SILVER SOLDER POSTS

Here are some nice silver solder posts..different sizes.
Please order by the part number of the solder posts you want, this will help make sure you get the right ones.

100 Pieces silver solder posts Part NO.101

Size of these solder posts is....1/2" long and dia 1/16"
These have a hole thru center.
Price on these nice solder posts.....
100/$10.00

25 Pieces silver solder posts Part No.102

Size of these solder posts are 5/16" long and dia. is 3/16"
pPrice on these nice silver solder posts...
25/$2.50
Or buy 100 Pieces of solder posts no. 2 for only...
$5.00

25 Pieces silver solder posts Part NO.103

Size of these nice solder posts is 3/8" long and dia. 3/16"
Price on these nice silver solder posts is...
25/$2.50

Or buy 100 Pieces of solder post no.103 for only...
100/$5.00

25 Pieces silver solder posts Part NO.104

Size of these nice silver solder posts 1/2" long and have turrent on both ends.
Price on these nice silver solder posts is...
25/$2.50

Or buy 100 pieces of solder posts no.104 for only...
100/$5.00

25 Pieces silver solder posts Part NO.105.

Size of these nice silver solder posts 1/4" long and 3/16" dia.
Price on these nice silver solder posts is...
25/$2.50
Or buy 100 pieces of solder posts no.105 for only...
100/$5.00

25 Pieces silver solder posts Part NO.106

Size of these nice silver solder posts 1/2" long and dia. 1/8"
Price on these nice silver solder posts is...
25/$2.50
Or buy 100 pieces of solder posts no.106 for only...
100/$5.00

100 nickel aloy solder posts Part NO.107

Size of these nice nickel solder posts 1/4" long and dia. is 3/16"
These have a hole in the middle.
Price on these nice nickel solder posts...
100/$5.00
Or buy 100 Pieces of solder posts no.107 for only...
100/$5.00

100 ASSORTED SOLDER POSTS
PART NO.108

THE PIC. GIVES EXAMPLE OF WHAT YOU GET..LOTS OF DIFFERET TYPES AND SIZES
LOOKS LIKE SOME SILVER SOLDER POSTS, GOLD POST AND SO FORTH..A GREAT LITTLE ASSORTMENT TO HAVE AROUND
PRICE..
100/$5.00

Here is a little board with some of the solder posts soldered to it.
You can see the solder posts take solder great.

SINGLE TURN TRIMMER POTENTIOMETERS.

Note: all the trim pots below are priced at 5$1.00 ( not the ones in the pic. below )
No mixing of vaules please..
100 ohm *** 500 ohm *** 1k ohm *** 2k ohm
5k ohm *** 10K *** 20k ohm
25k ohm *** 47k ohm *** 100k ohm
500k ohm *** 1 meg ohm

100 ASSORTED TRIM POTS
VAULES LIKE 500 OHM ** 1K ** 2K** 3K** 5K** 10K** 47K** 100k AND MORE...A GREAT WAY TO STOCK UP ON TRIM POTS AND SAVE AT THE SAME TIME...BAG OF 100 PIECES ONLY
100/$5.00

MULITURN CERMET TRIMMER POTENTIOMETERS.
3/4" SPECTROL(yellow ones in pic.) 20 turn.
100 ohm $1.00 ea.
5k ohm $1.00 ea.
50k ohm $1.00 ea.
10k 20 turn by Vernitron..(green one in pic.)
Price..$1.00 ea.
MORE MULTITURN TRIM POTS..THESE ARE LIKE ONES IN THE PIC. ABOVE BUT ARE MADE BY MURATA..SIZE..11/16" LONG BY 1/8" WIDE.. VERY NICE 20 TURN TRIM POTS...VAULES AVAIL BELOW...
500 OHM..PRICE..2/$1.00
1K...PRICE...2/$1.00
2K..PRICE...3/$1.00
5K..PRICE...$1.00 EA.
1 MEG. AND PRICE..$1.00 EA.

POTENTIOMETERS.

2K 10 TURN POT.(1ST ONE IN PIC.FROM LEFT TO RIGHT)
1/4" SHAFT...PRICE...$5.50 EA.
CLAROSTAT 5K 10 TURN PRECISION POTENTIOMETER
HAS A 1/2" LONG BY 1/4" SHAFT..BODY IS 40MM LONG. DIA. 26MM
COLOR GREEN..( NOTE:THESE ARE VERY CLEAN PULLS WITH MANY YEARS OF LIFE LEFT...LIKE NEW )
PRICE..ON THESE ARE..$8.50 EA..MOUNTING HARDWARE INCLUDED..
100K LINEAR POT..NO SWITH...3RD POT IN PIC..( LITTLE ONE )
1/4" SHAFT INCLUDES HARDWARE...PRICE $1.00EA.
10K AUDIO POT WITH SWITCH, 1/4" SHAFT
LAST POT IN PIC. INCLUDES HARDWARE
PRICE..$1.65EA.
10 K LINEAR TAPER POT..NO SWITH..NO PIC..1/4" SHAFT.
INCLUDES HARDWARE..PRICE..$1.00 EA.
500 OHM AUDIO POT..1/4" SHAFT
PRICE $1.00 EA. ..HARDWARE INCLUDED
1K LINEAR POT..NO SWITCH.
HARDWARE INCLUDED..PRICE $1.00EA.

PRECISION DIALS.
DUO-DIAL 10 TURN ( 1ST ONE IN PIC. FROM LEFT TO RIGHT )
PRICE..$6.50..FIT 1/4" SHAFT
DUO-DIAL..SOLD OUT
CLAROSTAT 316 SERIES DIGITAL READ OUT DIALS
15 TURN 2 COLORS..BLACK AND SILVER..
PLEASE MAKE 1ST THEN 2ND CHOICE
FIT 1/4" SHAFT AND PRICE IN NEWARKS 1997 CATALOG $21.95..DANS LOW PRICE IS $8.50 EA.

SWITCHES
CHECK OUT THE SWITCHES BELOW

Eaton SPDT Toggle Switch

Here are some very nice Toggle switches that are made by Eaton Part no. A121P32Y5CQ.
Made in the USA.
Switch, MINI FLAT HANDLE, SPDT, ON-OFF-ON, 6A@125VAC, 28VDC, 3A@250VAC.
Includes...
Lock washer.
Threaded nut.
Finsh nut with hardware.

These are very nice switches and are expensive at most big parts places....
CLICK HERE TO SEE
Looks like over $15.00 ea.!
You can buy some at Dan's for only...
$1.49ea.
Note:Belive Eaton is part of Electroswitch now.

KNOBS

1 1/2" DIAMETER BLACK FLUTED KNOB
FITS 1/4" SHAFT WITH SET-SCREW
PRICE..$1.25 EA.
THE 1-1/2" DIA. BLACK FLUTED KNOBS ARE SOLD OUT.
1ST KNOB IN PIC. ABOVE..BOTTOM ROW ..TO LEFT.
3/4" DIA. BLACK KNOB FITS 1/4" SHAFT WITH SET SCREW
PRICE..$.59 EA.
MIDDLE KNOB BOTTOM ROW
1 1/8 " DIAMETER KNOB BY DAKA-WARE
FITS 1/4" SHAFT WITH SET SCREW
PRICE..$.79 EA.
DAKA-WARE 1 1/8" KNOB IS SOLD OUT
1 1/8" DIA. BY 7/8" HIGH ROGAN KNOB
BLACK WITH CIRCULAR BRUSHED TOP
BLACK LINE CENTER TO EDGE.
FITS 1/4" SHAFT..INCLUDES SET SCREW
VERY NICE KNOB AND PRICE IS $1.00 EA.
1ST KNOB UPPER ROW IN PIC. ABOVE TO LEFT
11/16" DIA. BY 7/8" HIGH ROGAN KNOB
FITS 3/16" DIA. SHAFT
BLACK WITH CIRCULAR BRUSHED TOP
WITH BLACK LINE CENTER TO EDGE..PRICE..$59 EA.
MIDDLE KNOB IN PIC. ABOVE TOP ROW
3/4 " DIA. BY 3/4" HIGH RAYTHEON KNOB
RAYTHEON PART NO. TSF70..FITS 1/4" SHAFT
INCLUDES SET SCREW AND PRICE $.79 EA.
SMALL KNOB.( NOT IN PIC.)..FOR 1/8" SHAFTS...SIZE OF KNOB IS..1/2" HIGH BY 7/16" DIA...NICE KNOBS...THESE HAVE SET SCREW FOR TIGHT FIT...PRICE..10/$1.00

EDGE METERS PANEL MOUNT.

200UA 'S' METER ( 1ST METER IN PIC. ABOVE TO LEFT. )
FACE OF METER IS 1 3/16" BY 1/2" WIDE.
METER READS 0-30DB
YOU CAN REDO IF YOU LIKE
2 MOUNTING TABS FOR MOUNTING.
PRICE ON THIS NICE METER IS $4.50
Edge Meter above is sold out...1st Meter in Photo to the left

200 UA 'S' METER SMALL SIZE
FACE OF METER IS 1 7/16" BY 7/16" WIDE.
TOP OF METER FACE IS BLUE AND READS 1-9 + 30 DB
BOTTOM READS 1-5 IN RED NUMBERS.
METER IS MIDDLE ON IN PIC ABOVE
PRICE ON THIS NICE METER IS $4.50 EA.

200 UA EDGE METER (LAST METER TO RIGHT IN PIC.)
FACE SIZE IS 1 3/16" LONG BY 1/2" WIDE AND BLUE COVER
SCALE READS ON ONE SIDE 1-30DB
AND OTHER SIDE SAYS POWER 1-25
PRICE ON THIS NICE METER IS $4.50 EA.

SLUG TUNNED COIL FORMS.

Millen 3/8" DIA. BY 1" LONG CERAMIC COIL FORM
SLUG TUNNED AND RARE FORM
PRICE IS..$3.50 EA.
1ST IN PIC.(LOWER LEFT) ABOVE

MILLEN 1/4" DIA. BY 7/8" LONG CERAMIC COIL FORM
SLUG TUNNED AND CORE GREEN
LIMITED QUANITY AND PRICE IS $2.50 EA.
2ND COIL FORM IN PIC. (LOWER ROW)

MILLEN 1/4" DIA. BY 3/4" LONG CERAMIC COIL FORM
SLUG-TUNNED..RED CORE..LIMITED QUANITY
PRICE ON THESE IS $1.75 EA.
COIL FORM IS 3RD ONE IN PIC. ABOVE (LOWER ROW)

100UH MILLER SLUG TUNNED PHENOLIC PI-WOUND COIL FORM
THESE ARE RARE FORMS. SIZE 1/4" DIA. BY 11/16"
NOTE.SIZE GIVEN IS COIL FORM WINDING AREA ..THE TOTAL LENGHT OF FORM IS 1 1/2" LONG
4TH ONE IN PIC(BOTTOM ROW)
PRICE ON THESE RARE FORMS IS $2.50 EA.

LAST COIL FORM ON BOTTOM ROW FAR RIGHT IS
SLUG TUNNED COIL FORM..30UH AND 60UH..DUAL WINDINGS
1/4" DIA. AND 2 INCHES LONG..YOU CAN REWIND TO YOUR OWN SPEC'S
PRICE ON THIS SLUG TUNED COIL FROM IS $1.50 EA.

1/4" DIA. BY 1 1/2" LONG SLUG TUNNED COIL FORM
( 1ST COIL IN TOP ROW IN PHOTO.)
THE SLUG IN THESE IS 5/8" LONG SO YOU CAN COME UP WITH A NICE RANGE
EXAMPLE:20 TURNS OF # 20 ENAMEL WIRE = .6UH TO 4.5UH
32 TURNS OF #24 ENAMEL WIRE =3.2UH TO 4.5UH
PRICE ON THIS NICE COIL FORM IS..$2.50 EA.

3/16" BY 1" SLUG TUNNED COIL FORM. (2ND IN TOP ROW FROM LEFT TO RIGHT)
PRICE ON THESE ARE $.50 EA.

4TH COIL FORM FROM LEFT TO RIGHT IN PIC.
33UH SLUG TUNNED COIL FORM 3/16" DIA. BY 1" LONG
PRICE ON THESE IS $.50 EA.

LAST COIL FORM TOP ROW IN PIC.
47UH SLUG TUNNED COIL FORM 3/16" DIA. BY 1" LONG
PRICE ON THESE ARE $.50 EA.

MINIATURE MOLDED CHOKES

NOTE: PRICE ON THESE LITTLE CHOKES LISTED BELOW ARE 3/$1.00..SAME VAULE

.22uh ** .39uh ** .47uh ** .56uh ** .68uh ** .82uh ** 1uh ** 1.2uh ** 1.5uh
1.8uh ** 2.2uh ** 2.7uh ** 3.3uh ** 3.9uh ** 4.7uh ** 5.3 uh ** 5.6uh ** ** 8.2uh ** 10uh
12uh ** 15uh ** 18uh ** 22uh ** 27uh ** 33uh ** 39uh ** 47uh ** 56uh ** 62uh ** 68uh
82uh ** 100uh ** 120uh ** 150 uh ** 180uh ** 220uh ** 270uh ** 330uh ** 390uh ** 470uh ** 510uh
560uh ** 680uh ** 820uh ** 1000uh ** 1200uh ** 1500uh ** 3900uh ** 4.000UH ** 4700uh

2.5MH PI-WOUND CHOKES PRICED AT $1.50 ea.

200 PIECE RADIAL LEADED INDUCTOR KIT
40 DIFFERENT VAULES.

Here is a very nice radial leaded inductor kit.
200 Pieces in kit and 5 pieces of each vaule listed below.
There are 40 different vaules in this kit.
Great inductor kit...get one while avaiable.
.82uh
.47uh
1uh
1.2uh
1.5uh
1.8uh
2.2uh
2.7uh
3.3uh
3.9uh
4.7uh
5.0uh
5.6uh
6.8uh
8.2uh
10uh
12uh
15uh
18uh
22uh
27uh
33uh
39uh
47uh
56uh
62uh
68uh
82uh
100uh
120uh
150uh
180uh
220uh
270uh
330uh
390uh
470uh
680uh
820uh
1000uh

Price on this nice 200 piece inductor kit...
$20.00

125 PIECE CHOKE KIT

HERE IS A NICE 125 PIECE CHOKE KIT
{SEE THE PHOTO ABOVE FOR EXAMPLE OF WHAT THE CHOKES IN THIS KIT LOOK LIKE}
AND THE VAULES IN THIS KIT ARE BELOW.
5 PIECES .15UH...BROWN-GREEN-SILVER
5 PIECES .47UH...VILOET-YELLOW-SILVER
5 PIECES .68UH...BLUE-GRAY-SILVER
5 PIECES .82UH...GREY-RED-SILVER
5 PIECES 1.0UH...BROWN-BLACK-SILVER
5 PIECES 1.2UH...BROWN-GOLD-RED
5 PIECES 1.5UH...BROWN-GREEN-GOLD
5 PIECES 1.8UH...BROWN-GREY-GOLD
5 PIECES 2.2UH...RED-RED-GOLD
5 PIECES 2.7UH...RED-VIOLET-GOLD
5 PIECES 3.3UH...ORANGE-ORANGE-GOLD
5 PIECES 3.9UH..ORANGE-GOLD-WHITE
5 PIECES 4.7UH...YELLOW-VIOLET-GOLD OR 4.7 MARKED ON PART
5 PIECES 5.3UH...GREEN-ORANGE-GOLD
5 PIECES 5.6UH GREEN-BLUE-GOLD
5 PIECES 8.2UH GREY-RED-GOLD
5 PIECES 10UH...BROWN-BLACK-BLACK
5 PIECES 12UH BROWN-RED-BLACK
5 PIECES 15UH...BROWN-GREEN-BLACK
5 PIECES 18UH...BROWN-GREY-BLACK
5 PIECES 22UH...RED-RED-BLACK
5 PIECES 30UH...ORANGE-BLACK-BLACK
5 PIECES 33UH...ORANGE-ORANGE-BLACK
5 PIECES 39UH ORANGE-WHITE-BLACK
5 PIECES 47UH...YELLOW-VIOLET-BLACK

PRICE ON THIS NICE 125 PIECE CHOKE KIT IS...$10.50

190 PIECE INDUCTOR CHOKE KIT

HERE IS A NICE 190 PIECE CHOKE KIT..AND THE VAULES IN THIS KIT ARE BELOW.

NICE CHOKE KIT AND A GREAT PRICE FOR WHAT IS LISTED.
CHECK IT OUT AND GET SOME WHILE AVAIABLE.
10 PIECES 2.2UH... RED-RED-GOLD
10 PIECES 4.7UH...CODE 4.7 MARKED ON PART
25 PIECES 5.6UH BLUE-GREEN-GOLD
10 PIECES 10UH...BROWN-BLACK-BLACK
10 PIECES 12UH...BROWN-RED-BLACK
10 PIECES 15 UH...BROWN-GREEN-BLACK
10 PIECES 18UH...BROWN-GREY-BLACK
25 PIECES 22UH...RED-RED-BLACK
10 PIECES 33UH...ORANGE-ORANGE-BLACK
10 PIECES 47UH...YELLOW-VIOLET-BLACK
10 PIECES 62UH...BLUE-RED-BLACK
10 PIECES 82UH GREY-RED-BLACK
10 PIECES 100UH...BROWN-BLACK-BROWN
10 PIECES 120UH BROWN-RED-BROWN
10 PIECES 680UH MARKED ON PART
10 PIECES 1000UH ..BROWN-BLACK-RED
10 PIECES 3900UH MARKED ON PART.

PRICE ON THIS NICE 190 PIECE CHOKE KIT IS LESS THAN $0.08 CENTS EACH.
$13.50

CORES-FERRTIE BEADS AND WIDE BAND BALUN CORES

IRON POWDER CORES ( PIC. ABOVE )
NOTE: YELLOW CORES ARE # 6 MATERIAL
RED CORES ARE #2 MATERIAL
WHITE CORES ARE #7 MATERIAL
SIZE LISTED BELOW WILL START WITH THE BIGGEST TO THE SMALLEST

IRON POWDER CORES
T68-6...$.90 EA.
T68-2...2/$1.00
T50-6...3/$1.45
T50-2...3/$1.45
T37-6...3/$1.45
T37-2...3/$1.45
T30-6...3/$1.25
T30-2...3/$1.25
T25-6...3/$1.25
T25-2...3/$1.25
T68-7...$.90 EA.
T50-7...3/$1.25
T37-7...3/$1.25
FERRITE CORES IN PIC. ABOVE
CORES BELOW AND SEE PIC. FOR SIZE.
FT114-43 ( BIG CORE IN PIC. )
PRICE IS $1.25 EA.
FT50-43 PRICE 3/$1.80
FT50-61 PRICE 3/ $1.80
FT37-43 PRICE 3/$1.60
FT37-61 PRICE 3/1.60
FT23-43 PRICE 3/$1.00

SMALLEST ONE IN PIC. ABOVE

FERRITE BEADS AND BALUN CORES IN PIC.
STACKPOLE 2 HOLE BALUN CORE 61 MATERIAL
BIG ONE IN PIC. ABOVE. 1 " LONG BY 1/2" WIDE 1/8" DIA. HOLES
PRICE ON THESE AND LIMITED QUANITY IS $1.25 EA.
STACK POLE CORE SOLD OUT.
BLN43-202 2 HOLE BALUN CORE
2ND ONE IN PIC. ABOVE
PRICE ON THESE IS $1.00 EA.
BLN43-202'S SOLD OUT
BLN43-302 2 HOLE BALUN CORE
3RD ONE IN PIC. ABOVE
PRICE ON THESE IS $.69 EA.
BLN43-302'S SOLD OUT
BLN43-2402 2 HOLE BALUN CORE
4TH ONE IN PIC. ABOVE
PRICE ON THESE IS $3/$1.00
BLN73-2402 2 HOLE BALUN CORE
4TH ONE IN PIC ABOVE
PRICE ON THESE IS $3/$1.25

BLN73-2402..SOLD OUT.
FB73-801 BEADS..PRICE DOZ FOR $2.50
FB43-801 FERRITE BEAD
1ST BEAD IN PIC. MIDDLE ROW TO FAR LEFT
PRICE ON THESE IS 12/$2.25
NEXT BEAD ( 2ND ONE MIDDLE ROW ) IS
FB43-302 AND PRICE IS 12/$1.25
FB43-1801 ( 3RD BEAD IN PIC )
PRICE ON THESE ARE 12/$2.25
FB43-202 FERRITE BEAD ( 4TH ONE MIDDLE ROW )
PRICE 12/$1.60
FB43-101 FERRITE BEAD ( 5TH ONE IN MIDDLE ROW )
PRICE 12/$1.50
FAIR-RITE BEAD NO. 2743008111
( LONG BEAD WITH WIRE THRU BEAD BOTTOM ROW )
PRICE 12/$2.00
FAIR-RITE BEAD NO. 2743001111
(SMALLER BEAD WITH WIRE THRU BEAD )
PRICE 12/$1.50
FB73-101 FERRITE BEADS...12 FOR $1.75
FB73-801 FERRITE BEADS...12/$2.75
Ferrite Bead..1/8" Dia. x .037" Thick with 5/32" hole
CORIRON #11-12824, MC25-36BCP.( not in pic. above )
Price..100 pieces for $2.00
50 Assorted Ferrite Beads..lots of sizes..( not in pic. above )
Stock up whille available..Bag of 50 Assorted Ferrite beads..Price..50/$2.50

DANS CAPACITOR SECTION

CERAMIC AND MONOLITHIC CAPACITORS
ALL VAULES LISTED ARE 10 PIECES FOR $0.79( SAME VAULE )
NO MIX OR MATCH..MOST 10% AND SOME 5% AND 50 VOLT
10PF *** 15PF *** 22PF *** 27PF *** 33PF *** 39PF *** 47PF *** 82PF *** 100PF *** 120PF
150PF *** 240PF *** 330PF *** 390PF *** 470PF *** 500PF *** 560PF *** 820PF *** 1000PF *** 1500PF

THE CAPS LISTED BELOW..ARE 10% AND 20% AND A FEW ARE 25 VOLT
SAME PRICE... 10 PIECES FOR $0.79 ( SAME VAULE ) AND NO MIX OR MATCH

.1UF ** .02UF ** .01UF ** .001MF **1500PF ** 2200PF ** 3300PF ** .047UF ** .0047UF ** .005UF ** .05UF
** .022UF ** .22UF
** .005MF 100 VDC 10/$0.79

100 PIECE BY-PASS CAP KIT

Here is a nice 100 Piece by-pass capacitor kit.
These are all Multilayer Ceramic Capacitors
Made by Murata,Kement, AVX, etc.
All long leads...50 volt..some 10% other +-20%
This 100 piece kit includes 20 pieces of the following vaules.

20 Pieces .1mf
20 Pieces .01mf
20 Pieces .001mf
20 Pieces .047mf
20 Pieces .22mf

Price on this nice 100 Piece by pass cap kit is...
$5.00
Note: In some kits the body color of the cap may be yellow..see example to far right in photo..

100 ASSORTED TEAR DROP TANTALUM CAPS..SEE PIC. ABOVE FOR WHAT THEY LOOK LIKE..LOTS OF VAULES..AND GET THEM WHILE THEY ARE AVAIL...BAG OF 100 ASSORTED TEAR DROP TANTALUM CAPS FOR ONLY $10.00..

TANTALUM ELECTROLYTIC CAPACITORS
TEAR DROP TYPE..RADIAL LEADS

The following vaules are available at this time
minimum voltage is 16 volts..a lot of them are 35 volts
Please make a 1st choice and then a 2nd choice on voltage when you order
35 volt will be sent if available and if not then 16 volt or better will be sent
The Following Vaules Are Available.
.1uf..Price on these is 4/$1.00
1uf..Price on these is 4/$1.00
2.2uf..Price on these is 4/$1.00
3.3uf..Price on these is 4/$1.00
4.7uf..Price on these is 4/$1.00
10uf..Price on these is 4/$1.00
22uf..Price on these is 4/$1.00
.33uf..Price on these is 4/$1.00
NOTE: The dipped Tantalums capacitors in the Pic. are a example of what Dipped Tear Drop Tantalums look like.

SILVER DIPPED MICA CAPACITORS:
PRICE ON THESE ARE $.40 EA.
1PF ** 2PF ** 3PF ** 4PF ** 5PF ** 6PF ** 7PF ** 8PF ** 10PF ** 12PF ** 15PF ** 18PF ** 20PF
22PF ** 27PF ** 30PF ** 33PF ** 36PF ** 39PF * 43PF ** 47PF ** 50PF ** 62PF ** 68PF ** 75PF
82PF ** 91PF ** 100PF ** 110PF ** 120PF ** 125PF ** 130PF ** 180PF ** 200PF ** 220PF ** 240PF
270PF ** 300PF ** 330PF ** 360PF ** 390PF ** 430PF ** 470PF ** 500PF ** 510PF **
620PF ** 680PF ** 750PF ** 820PF ** 910PF ** 1000PF ** 1200PF ** 2000PF ** 2200PF ** 3000PF

POLYSTYRENE FILM CAPACITORS 5% TOL.50 volt..
PRICE ON THESE POLY CAPS ARE 3/$1.00 SAME VAULE
10PF ** 56PF ** 100pf ** 110PF ** 120PF ** 150PF ** 180PF ** 220PF ** 270PF ** 330PF ** 390PF ** 470PF
560PF ** 680PF ** 820PF ** 910PF ** 1000PF ** 1200PF ** 1500PF ** 1800PF ** 2000PF
2200PF ** 2700PF ** 3300PF ** 3900PF ** 4700PF

NPO CERAMIC CAPACITORS.5% AND 10%
PRICE ON THESE NPO CAPS 5/$1.00 SAME VAULE, NO MIXING AND VOLTAGE RATING IS 50 VOLTS..

1PF ** 1.5pf ** 1.8pf ** 2PF ** 2.2PF ** 2.7PF ** 3PF ** 3.3PF ** 4pf ** 4.7PF ** 5.1PF ** 5PF ** 5.6pf ** 6PF ** 6.8PF ** 8pf ** 8.2PF
9PF ** 10PF ** 12PF ** 15PF ** 18PF ** 20PF ** 22PF ** 27PF ** 33PF ** 39PF ** 47PF ** 51pf ** 56PF
62PF ** 68PF ** 82PF ** 91pf ** 100PF ** 110PF ** 120PF ** 140pf ** 150PF ** 180PF ** 220PF ** 270PF ** 330PF
390PF ** 470PF ** 560PF ** 680PF ** 820PF ** 1000PF ** 1500PF

500 ASSORTED CAPACITORS

Great deal here..500 plus assorted capacitors and includes...
Ceramic Disc.
Tantalums
NPO'S
Metal Film
Polystyrene
Silver Mica
Electrolytic's
More..
This is a great deal for the person who wants lots of different caps and does not mind doing a little sorting.
Price...
$5.00

FEED-THRU CAPACITORS

550 PF 650 VOLT THREADED FEED THRU CAP
3/8" DIA. AND THREADED AND COMES WITH NUT
(SEE IN PIC. ABOVE TOP FAR LEFT)
PRICE ON THESE ARE $1.00 EA.
1000PF..650 VOLT..BODY LENGTH 1/2" AND 1/8" DIA. APPROX.
( MIDDLE ROW IN PIC. TO THE FAR LEFT )
PRICE ON THESE NICE FEED THRU CAPS ARE $1.00 EA.
1000PF 250 VOLT 1/8 DIA.
( 2ND CAP. IN MIDDLE ROW FROM LEFT TO RIGHT )
PRICE ON THESE NICE FEEDTHRU CAPS ARE 10/$3.50
500PF FEED THRU CAP..
( 3RD ONE IN PIC. MIDDLE ROW )
PRICE ON THESE ARE 3/$1.00
10PF FEET THRU CAP.
( 4TH CAP IN PIC. MIDDLE ROW )
PRICE ON THESE ARE 3/$1.00
8PF FEED THRU CAP.
( LAST ONE IN PIC. MIDDLE ROW )
PRICE ON THESE ARE 3/$1.00
1500PF FEED THRU CAP 1/4 DIA. BY 1/8 DIA.
( BOTTOM ROW IN PIC. WITH WIRE THRU CAP )
RATED AT 350 VOLTS AND PRICE ON THESE ARE 10/$3.50
1000 PF FEEDTHRU CAP. SAME AS THE 1500PF FEEDTHRU CAP
( SEE CAP. BOTTOM ROW IN PIC. )
RATED AT 350 VDC AND PRICE ON THESE ARE 10/$3.50
3300PF FEED THRU CAP..350 VDC...NO PIC..BUT LIKE THE ONE IN THE BOTTOM ROW OF PIC WITH FACTORY LEADS..
PRICE ON THESE ARE 10/$3.50

.001MF OR 1NF 400 VOLT FEED TRU CAPS..VERY NICE ITEMS..MADE BY STETTNER ELECTRONICS COMPONENTS...GERMANY..HIGH QUALITY ITEM...SEE PIC. ..PRICE BUY 10 PIECES FOR $4.75

30 PIECE FEED THRU CAPACITOR KIT
HERE IS A NICE 30 PIECE FEED THRU CAP. KIT
KIT INCLUDES 5 EA. OF THE FOLLOWING VAULES
27PF 500 VDC
100PF 350 VDC
470PF 500 VDC
1000PF 250 VDC
1500PF 350 VDC
3300PF 350 VDC
PRICE ON THIS NICE 30 PIECE FEED THRU CAP KIT IS.............. $6.50

TRIMMER CAPACITORS:
CLICK HERE FOR MORE TRIMMER CAPS AND AIR-VAIRABLES

THE TRIMMERS IN THE PIC. HERE ARE MADE BY MURATA
THEY ARE THE 6MM DIA. STYLE AND TOP ADJ. AND 100 VDC RATING.

8-150PF COLOR BLACK
( 1ST CAP. IN TOP ROW OF PIC.FAR LEFT )
PRICE ON THE 8-150PF CAPS IS $1.50 EA.

2.5-90PF COLOR BROWN
( 2ND CAP TOP ROW LEFT TO RIGHT )
PRICE ON THE 2.5-90PF CAPS IS $1.00 EA.
2.5-85PF COLOR ORANGE
( 3RD CAP TOP ROW IN PIC )
PRICE ON THE 2.5-85PF CAPS IS $.90 EA.
2.5-70PF COLOR GREEN
( LAST CAP TO RIGHT TOP ROW IN PIC )
PRICE ON THE 2.5-70PF CAPS IS $.75 EA.

1.3-3PF COLOR BLACK
( 1ST CAP BOTTOM ROW IN PIC. TO FAR LEFT )
PRICE ON THE 1.3-3PF CAPS IS 3/$1.25
2.5-7PF COLOR BLUE NPO
( 2ND CAP BOTTOM ROW..LEFT TO RIGHT IN PIC. )
PRICE ON THE 2.5-7PF CAPS IS $.70 EA.
1.5-14PF COLOR WHITE..PRICE 3/$1.50
( 3RD CAP IN PIC. BOTTOM ROW IN PIC )
5-35PF COLOR GREEN
( LAST CAP. IN PIC BOTTOM ROW FAR RIGHT )
PRICE ON THE 5-35PF CAPS IS 3/$1.50

THE 4 TRIMMER CAPS IN THE PIC. ABOVE ARE AVX KYOCERA
7-80PF COLOR VIOLET SIZE 8MM
( 1ST CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE ARE $.75EA.
10-35pf ceramic trimmer, 7MM SIZE p>( 2ND CAP IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE CAPS ARE 3/$1.00
12-45PF 7MM SIZE
( 3RD CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE ARE 3/$1.50

1.5-12PF COLOR BROWN SIZE 6MM
( LAST CAP. IN PIC. FAR RIGHT )
PRICE ON THESE ARE 3/$1.50

THE CAPS IN THE PIC. ABOVE ARE SPRAUGE GOODMAN TRIMMER CAPS.
15-365PF 5/8" BY 1/2" TOP ADJUST COLOR CLEAR AND WHITE
( 1ST CAP IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE RARE CAPS ARE $2.75 EA.
4.5-65PF TOP ADJ. 10MM AND COLOR YELLOW
( 2ND CAP IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE FINE CAPS IS $1.25 EA.
8-80PF TOP ADJ. 10MM AND COLOR RED OR VIOLET
( 3RD CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE NICE CAPS IS $1.25 EA.
3-36PF 8MM COLOR VIOLET TOP ADJ.
( 4TH CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE NICE CAPS IS $1.25 EA.
2.2-22PF 8MM COLOR GREEN..TOP ADJ.
( 5TH CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE NICE CAPS IS $.75EA.
4-20PF 6MM COLOR RED AND WHITE TOP ADJ.
( 6TH CAP. IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE NICE CAPS IS $2/$1.00
.25-1.5PF 600 VOLT LITTLE PISTON CAP W/500PF FEED THRU CAP
( LAST CAP IN PIC. FROM LEFT TO RIGHT )
PRICE ON THESE ARE 4/$1.00
NOTE:THESE ARE ALL NEW CAPS...CHECK OUT DIGI-KEY PRICE BEFORE YOU ORDER..YOU WILL SEE THAT YOU SAVE A LOT ON THESE FROM DAN'S....

THESE ARE LITTLE GLASS PISTON TRIMMER CAPS.

1ST CAP. IN PIC.( TOP ROW ) FROM LEFT TO RIGHT IS
JFD GLASS PISTON 0-20PF.. 3/8" DIA. AND A BIT OVER 3/4" LONG. 250 VDC RATING
PRICE ON THESE FINE GLASS PISTON CAPS IS $2.50 EA.
2ND PISTON CAP IN PIC.( TOP ROW )
0-10PF CERAMIC 1/8" DIA. AND 1/2" LONG 250 VDC
PRICE ON THESE ARE 5/$3.00
3RD PISTON CAP. IN PIC ( TOP ROW )
JFD 0-40PF AND 250 VDC 3/16" DIA. BY 3/4" LONG APROX
PRICE ON THESE NICE JFD PISTON CAPS IS $2.50 EA.
4TH PISTON CAP ( TOP ROW )
1-40pf AND 1000 VDC AND MADE BY AMERICAN TECHINICAL CERAMICS
3/16" DIA. BY 5/8" LONG
PRICE ON THESE FINE PISTON CAPS IS $2.25 EA. WHILE THEY LAST
JOHANSON 1.5-14PF 250 VDC GLASS PISTON CAP
1ST ONE IN PIC BOTTOM ROW
3/8" DIA. BY 7/16" LONG AND PANEL MOUNT
PRICE ON THESE NICE LITTLE GLASS PISTON CAPS ARE $2.50 EA..
0-10PF LITTLE GOLD MIL-SPEC. PISTON CAP..
BOTTOM ROW OF PIC TO THE RIGHT
GOLD PLATED AND MADE BY CAGE AND 12.5MM X 3MM DIA.
RATED VOLTAGE 500 VDC AND DIELECTRIC WITH STANDING VOLTAGE 1000 VDC...NICE CAPS..
PRICE ON THESE ARE $2.50 EA.

THESE ARE ALL JOHNSON LITTLE AIR TRIMMERS
AND ALSO SMALL AIR VAIRABLES..NICE LITTLE PARTS HERE..
0-5PF JOHNSON PART NO. 148-55-11
( LITTLE AIR TRIMMER VERY TOP OF PIC. )
PRICE..$1.00EA.
.5-40PF MODEL NO. 193-10-7 JOHNSON SMALL PANEL MOUNT AIR VAIRABLE
(1ST CAP. MIDDLE ROW. FROM LEFT TO RIGHT )
3/16" DIA. SHAFT..SEE KNOB SECTION FOR A NICE KNOB TO FIT THIS LITTLE AIR VAIRABLE.
PRICE ON THESE IS $6.50 EA.
.5-20PF MODEL NO. 193-6 JOHNSON SMALL PANEL MOUNT AIR VAIRABLE
( 2ND CAP. MIDDLE ROW. FROM LEFT TO RIGHT )
3/16" DIA. SHAFT..SEE KNOB SECTION FOR A NICE KNOB THAT FITS THIS CAP.
LIMITED QUANITY OF THESE AND PRICE IS $6.50 EA.
.5-15PF MODEL NO. 195-4 SMALL PANEL MOUNT AIR VAIRABLE
( 3RD CAP. IN PIC. IN MIDDLE ROW. FROM LEFT TO RIGHT )
3/16" DIA. SHAFT. SEE KNOB SECTION FOR A NICE KNOB THAT FITS THESE NICE CAPS. )
PRICE ON THESE NICE LITTLE CAPS IS $4.75 EA.
.5-10PF MODEL NO. 160-104 JOHNSON SMALL PANEL MOUNT AIR VAIRABLE
( 4TH CAP IN PIC. MIDDLE ROW FROM LEFT TO RIGHT )
3/16" DIA. SHAFT AND SEE KNOB SECTION FOR A NICE KNOB THAT FITS THIS NICE CAP )
PRICE ON THESE WHILE THEY LAST IS $3.75
0-3.5PF JOHNSON MODEL NO.160-98 1/4" SHAFT
( LAST CAP. IN PIC. MIDDLE ROW )
PRICE ON THESE IS $3.00 EA.
3.3-35PF JOHNSON MODEL NO. 193-0010-005 250 VDC
( 1ST CAP. BOTTOM ROW IN PIC. FROM LEFT TO RIGHT )
9/16" WIDE BY 7/16" LONG TOP ADJ. OR BOTTOM ADJ.
2 PIN TYPE AND PRICE ON THESE NICE AIR TRIMMERS IS....$1.75 EA.
2.2-22.5PF JOHNSON MODEL NO. 189-507-5 250 VDC AIR TRIMMER
( 2ND CAP. IN PIC. BOTTOM ROW FROM LEFT TO RIGHT )
9/16" WIDE BY 7/16" LONG TOP OR BOTTOM ADJ.
2 PIN MOUNT..PRICE ON THESE NICE AIR TRIMMERS IS $3.25 EA.
1.4-10PF JOHNSON 189-503-103 250VDC
( 3RD CAP. BOTTOM ROW FROM LEFT TO RIGHT IN PIC. )
BASE 7/16" SQUARE AND LENGHT OF CAP. 7/16"
TOP OR BOTTOM ADJ 2 PIN AND PRICE ON THESE NICE CAPS IS $2.00 EA.

HEAVY DUTY PANEL MOUNT 1/8 " SHAFT CERAMIC MICA TRIMMER CAPACITOR BY ARCO SIZE IS 7/8" BY 7/8". THESE HEAVY DUTY CERAMIC MICA TRIMMER CAPS ARE NO LONGER MADE AS FAR AS WE KNOW...THEY HAVE PLATED BRASS PLATES AND HEAVY DUTY MICA INSULATORS BETWEEN PLATES AND WILL HANDEL 500 WVDC EASY..WE HAVE HAD REPORTS OF THEM BEING USED ON MOBILE WHIPS AS A TUNNING CAPACITOR WHILE RUNNING 500 WATTS AND HELD UP FINE...THEY ARE AVAIL. IN THE FOLLOWING SIZES LISTED BELOW.
40-365PF NO MOUNTING NUT SUPPLIED..YOUR LOCAL HARDWARE STORE SHOULD HAVE THAT....
PRICE ON THESE ARE $2.50 EA.

HERE IS A NICE BUNCH OF CERAMIC MICA TRIMMER CAPS
LOTS OF DIFFERENT TYPES AND VAULES
50-350PF 350 VDC CERAMIC MICA TRIM CAPACITOR
( 1ST CAP. TOP ROW AT FAR LEFT )
SIZE OF THESE ARE 3/4" LONG BY 9/16" WIDE
PRICE ON THESE NICE HARD TO FIND TRIM. CAPS IS $2.50EA.
60-450PF CERAMIC TRIMMER CAP
( LIKE CAP IN PIC. TOP ROW FAR RIGHT IN PIC. )
SIZE OF THESE ARE 3/4" BY 9/16" 350 VDC
PRICE ON THESE NICE TRIMMER CAPS IS $2.85 EA.
12-225PF ARCO TYPE 426 CERAMIC MICA TRIM CAP.350 VDC
( 2ND ONE FAR RIGHT..TOP FAR RIGHT IN PIC )
SIZE 3/4" BY 9/16" AND PRICE ON THESE ARE $2.50 EA.
20-225PF ARCO 425 CERAMIC MICA TRIM CAP.
( 1ST CAP. MIDDLE ROW TO FAR LEFT IN PIC. )
SIZE IS 3/4" BY 5/16" 350 VDC RATING
PRICE ON THESE NICE CAPS IS $2.50 EA.
20-120PF CERAMIC MICA TRIMMER CAP. 350 VDC
( 2ND CAP. MIDDLE ROW IN PIC. FROM LEFT TO RIGHT )
SIZE OF THESE ARE 1/2" BY 5/16"
PRICE IS $1.25EA.
12-120PF CERAMIC TRIM CAPS SOLD OUT
2.5-100PF CERAMIC MICA TRIMMER CAP 350 VDC
( 2ND CAP. IN MIDDLE ROW IN PIC. FROM LEFT TO RIGHT )
SIZE OF THESE CAPS IS 1/2" BY 5/16"
PRICE ON THESE IS $1.50 EA.
2.5-50PF CERAMIC MICA TRIMMER CAP. 350 VDC
( 2ND CAP. IN PIC MIDDLE ROW FROM LEFT TO RIGHT )
SIZE OF THESE NICE CAPS IS 1/2" BY 5/16"
PRICE ON THESE NICE CERAMIC MICA TRIM CAPS IS $1.50 EA.
2.5-30PF CERAMIC MICA TRIMMER CAP. 350 VDC
( 2ND CAP. IN MIDDLE ROW IN PIC. ABOVE )
SIZE OF THESE NICE CAPS IS 1/2" BY 5/16"
PRICE ON THESE NICE CAPS IS $1.00 EA.
10-75PF 1/2" ROUND MICA TRIMMER CAP. 250 VDC
( 1ST CAP. FAR LEFT BOTTOM ROW OF PIC. )
THESE MEASURE A BIT BELOW 10PF AND SOME WHAT ABOVE 75PF
PRICE ON THESE ARE $3/$2.00
3.5-14PF NPO BY ERIE 8MM DIA. APROX. AND 250 VDC
( 3RD CAP. IN PIC. BOTTOM ROW FROM LEFT TO RIGHT )
PRICE ON THESE IS $1.25 EA.
2.5-7.5PF NPO 200 VDC SIZE 6MM CERAMIC MICA TRIMMER CAP
( 3RD CAP. IN PIC. BOTTOM ROW FROM LEFT TO RIGHT )
PRICE ON THESE IS 5/$1.25

AIR VAIRABLE CAPACITORS:
LISTED BELOW IS A GOOD SELECTION OF AIR VAIRABLE CAPACITORS
QUANITY IS LIMITED ON ALL OF THESE AIR VAIRABLES
AND MOST OF THEM ARE NO LONGER IN PRODUCTION

HAMMARLUND DUAL 6-150PF PER SECTION 1/4" SHAFT DOUBLE BEARING TYPE
PART NUMBER IS 9411-73-60079 AND SIZE OF THIS AIR VAIRABLE IS 3 AND 1/2" LONG
AND 1" WIDE.( THIS DOES NOT INCLUDE THE SHAFT LENGTH ), SHAFT LENGTH IS
1 AND 1/2" LONG. THIS NICE AIR VAIRABLE HAS A CERAMIC BASE AND TAPPED
HOLES FOR MOUNTING AND NEW OLD STOCK. NOTE: THESE ARE NO LONGER
MANUFACTURED. PRICE ON THIS NICE AIR VAIRABLE IS... $20.00
DUAL 6-150PF AIR VAIRABLES ARE SOLD OUT

THIS NICE LITTLE PANEL MOUNT AIR VAIRABLE IS MADE BY JACKSON BROS.
2.0-15PF 1/4" SHAFT AND INCLUDE MOUTNING HARDWARE..VERY NICE PART..
BODY OF AIR VAIRABLE IS ABOUT 1" LONG AND 7/8" WIDE
PRICE ON THIS NICE NEW OLD STOCK CAP. IS $8.95 EA.
Jackson Bros 2.0-15pf air vairable sold out

18-250 PF DOUBLE BEARING 1/4" SHAFT AIR VAIRABLE AND THE
SIZE IS 1 AND 7/8" WIDE BY 3/4" DEEP AND A SHAFT EXTENSION IS INCLUDED
PRICE ON THIS NICE LITTLE AIR VAIRABLE IS $10.00

3 SECTION AIR VAIRABLE 1/4" SHAFT, DOUBLE BEARING TYPE.
SIZE OF THE NICE 3 SECTION AIR VAIRABLE IS 1 AND 3/8" WIDE BY 1 AND 1/4" DEEP
MOUNTING HOLES ON FROM AND READ AND BOTTOM OF AIR VAIRABLE
FRONT SECTION IS 15-102PF..CENTER SECTION IS 18-107PF
AND REAR SECTION IS 15-265PF..PRICE ON THESE IS $13.50 EA.

3 SECTION AIR VAIRABLE CAPACITOR 1/4" SHAFT AND DOUBLE BEARING TYPE
THE FRONT SECTION IS 25-275PF, CENTER SECTION IS 18-107PF
REAR SECTION IS 15-345PF, SIZE IS 1 3/8" WIDE BY 1 1/4" DEEP
PRICE ON THIS NICE 3 SECTION AIR VAIRABLE IS $15.00

2.5-50PF LITTLE PANEL MOUNT HAMMARLUND AIR VARIABLE
1/4" SHAFT AND MOUNTING HARDWARE INCLUDED WITH CAP.
SIZE IS 1 1/8" BY 1 1/4" THIS IS THE FRONT AND ABOUT 1" DEEP
PRICE ON THESE NEW OLD STOCK NO LONGER MADE HAMMARLUNDS IS $10.95

1.5-20PF LITTLE HAMMARLUND AIR VARIABLE..PANEL MOUNT
INCLUDES MOUNTING HARDWARE AND 1/4" SHAFT
1 1/8" BY 1 1/4" AND 1/2" DEEP APROX
PRICE ON THESE NEW OLD STOCK LITTLE HAMMARLUNDS IS $10.00

5.0-20PF DUAL SECTION AIR VAIRABLE 1/4" SHAFT
THESE ARE SILVER PLATED AND DOUBLE BEARING TYPE
YOU CAN TAKE THEM A PART AND MAKE A SINGLE SECTION AIR VAIRABLE.
SIZE OF THESE IS 2 3/4" WIDE AND 2" DEEP AND YOU CAN RESIZE THE FRONT IF YOU LIKE
THESE ARE AT LEAST 50 YEARS OLD AND IN EXCELENT CONDITION
LOOKS LIKE THEY WERE MILITARY ..VERY HEAVY DUTY NICE AIR VAIRABLES..
PRICE ON THESE NICE CAPS. IS $10.00 EA.

REDUCTION DRIVES..SHAFT COUPLERS..PANEL MOUNT BEARINGS AND FEED-THRU INSULATORS

MODEL #5670 HEAVY DUTY JACKSON BROS. 6:1 EPICYCLIC DRIVE
1/4" SHAFT AND OUTPUT FITS 1/4" SHAFT
THE SHAFT AND BALL RACES ARE MACHINED AND HARDENED TO PROVIDE OUTPUT TORQUE IN EXCESS OF 100 OZ..
IF YOU HAVE A BIG AIR VAIRABLE YOU WANT TO TURN AND NOT HAVE DRIVE SLIP
THEN THIS IS THE ONE TO USE..
PRICE ON THESE VERY NICE EPICYCLIC DRIVE IS $50.00
THIS WONDERFULL HEAVY DUTY BALL DRIVE IS SOLD OUT

MINIATURE 10:1 REDUCTION DRIVE MODEL #5870
THESE ARE NICE TO HAVE FOR YOUR HW-9 OR FOR LITTLE AIR VAIRABLES AND POTS
SHAFT IS 5/32" AND OUT PUT FITS EITHER 1/4" SHAFT OR 3/16" SHAFT
( PLEASE INDICATE WHEN YOU ORDER , EITHER 1/4" ON THE OUT PUT OR 3/16" ON THE OUTPUT
REDUCTION RATIO ON THESE IS 10:1 AND OUTPUT TORQUE IS 8 OZ.
PRICE ON THESE IS $15.00

NOTE:USE A 1/4" OUTSIDE DIA. SPACER AND DRILL OUT THE CENTER WITH 5/32" DRILL
AND YOU HAVE A ADAPTER THAT YOU CAN USE 1/4" INSIDE DIA. KNOB
IF USING FOR HW9..THE KIT INCLUDED AN ADAPTER

EPICYCLIC CORD DRIVE NO. 4413 AND ALSO INCLUDES PULLY
THESE ARE A NICE 5:1 REDUCTION DRIVE IMPUT TORQUE IS 3 OZ
OUT PUT TORQUE IS 8 OZ, HAS 1/4" SHAFT FOR 1/4" INSIDE DIA. KNOB.
PULLEY IS FOR THE AIR VAIRABLE AND 2 SET SCREWS INCLUDED
PRICE ON THIS DRIVE AND PULLEY IS $10.00

THIS DRIVE IS A 2 SPEED DRIVE AND NOT SURE ON THE MODEL NO. BUT IS J.B.
STANDARD 6:1 REDUCTION OR DIRECT AND 1/4" SHAFT
THE OUTOUT FITS 1/4" SHAFT AND PRICE ON THESE IS $13.50

THIS DRIVE IS A J.B. 7:1 REDUCTION AND HAS 1/4" SHAFT FOR 1/4" INSIDE DIAL KNOB
AND ALSO THE OUT PUT ON DIRVE FITS A 1/4" SHAFT
OUTPUT TOURQUE IS APROX 26 OZ. AND HAS A DIAL PLATE
WITH 2 THREADED HOLES FOR MOUNTING A DIAL
HAS 2 U-SHAPED EARS ON THE FLANGE FOR PANEL MOUNTING
PRICE ON THESE NICE LITTLE DRIVES IS $13.50 EA.

THIS IS A JACKSON BROS. 2 SPEED DRIVE NO. 4832/2K
REDUCTION RATIO IS 5 1/2 TO 1 ..OUTPUT TOURQUE IS 8 OZ.
1/4" DIA. IMPUT AND 1/4" DIA. OUT PUT..PRICE IS $12.50 EA.

UNIVERSAL COUPLING NO. 5610
SEE IN PIC. ABOVE TO THE LEFT
BREAK DOWN VOLTAGE IS 3KV AND 1/4" DIA. HOLES
TO FIT 1/4" SHAFT..VERY NICE PART AND PRICE ON THESE IS $5.00 EA.

INSULATED EXTENSION SPINDLE 3KV RATING
SEE IN PIC. ABOVE TO THE RIGHT
1/4" SHAFT FOR 1/4" INSIDE DIA. KNOB AND THE OUT PUT IS 1/4" DIA.
PRICE ON THESE NICE LITTLE INSULATTED EXTENSION SPINDLES IS $5.00 EA.

THESE ARE LITTLE PANEL MOUNT BEARINGS AND 1/4" BORE
USE THESE ON PANEL FOR SMOOTH SHAFT ROTATION WITH NO RUBBING OR HANG UPS
PRICE ON THESE ARE $1.65 EA.

2 PIECE GLAZED CERAMIC FEED THRU INSULATOR
MADE BY HERMAN H. SMITH AND CO. SIZE IS 1 AND 1/4" LONG
AND INCLUDES ALL THE HARDWARE AND PRICE ON THESE IS $3.95 EA.

CLICK HERE FOR
MORE BNC CONNECTORS AND STUFF

MAGNET WIRE

MAGNET WIRE IN THE FOLLOWING GAUGES..

NO 22 15 FEET FOR $1.00
NO. 24 25 FEET FOR $1.00
NO. 26 25 FEET FOR $1.00
NO. 28 25 FEET FOR $1.00
NO. 30 25 FEET FOR $1.00
NO. 31 25 FEET FOR $1.00
NO. 32 25 FEET FOR $1.00
NO. 36 25 FEET FOR $1.00
10 FEET OF NO.18 BUSS WIRE...PRICE IS 15 FEET FOR $1.00
DOUBLE BALANCED MIXER WIRE KIT NO. 1
3 DIFFERENT COLORS OF NO. 28 MAGNET WIRE 10 FEET EA.
30 FEET TOTAL ..PRICE $1.35
DOUBLE BALANCED MIXER WIRE KIT NO. 2
3 DIFFERENT COLORS OF NO. 30 MAGNET WIRE
10 FEET OF EACH COLOR..30 FEET TOTAL
PRICE ON THIS 30 FT. DOUBLE BALANCE MIXER WIRE KIT IS $1.35 EA.

UNGAR PL340 MICRO SPADE 1/8" THREAD IN SOLDER TIPS
THESE ARE IRON CLAD AND FIT. RADIO SHACK PENCIL IRONS
UNGAR 4034..1235 AND 535 AND OTHERS
NOTE:MOUSER SELLS A ADAPTER THAT FITS 1/4"
THREADED HEATING ELEMENTS AND THIS ADAPTER ADAPTS TO THE 1/8' UNGAR PL340 THREADED TIPS
THESE TIPS ARE AROUND $3.96 IN MOUSER CAT.
DAN'S PRICE IS CHEAP....3 FOR $1.00

DAN'S HARDWARE SECTION
SOLDER POSTS...MACHINE SCREWS..PC BOARD DRILL
BITS..PC BOARD SPACER KITS...

SET SCREWS
8-32 X 1/2" Set Screws 6-32 Thread..Price 20/$1.00

MACHINE SCREWS.

0-80 Machine Screws, Black, 3/4" long. Price 25 pieces for $1.00
2-56 x1/4" Stainless Steal Flathead Machine Screw..Price 25 for $1.00
2-56 X 1/4" Phillips Head Machine Screws..Price 35 pieces for $1.00
100 4-40 X 1/2 INCH PHILLIPS HEAD MACHINE SCREWS..CAPTIVE LOCK WASHER...NICE ITEMS...100 FOR $1.00

DOUBLE SIDED PC BOARD

NOTICE: ALL PC CIRCUIT BOARD LISTED BELOW IS AVAIL TO USA BUYERS ONLY.

5" X 7" Double Sided PC Board...Price $2.25 EA.

5 PIECE SINGLE SIDED PC BOARD KIT
1 Piece 2" X 4"
1 Piece 2" X 3"
1 Piece 1 1/2" X 4"
1 1/2" X 3"
1 3/4" X 2"
Price on this 5 piece single sided pc board kit...$2.25

7 PIECE DOUBLE SIDED PC BOARD KIT
1 Piece 3" X 3"
1 Piece 2" X 4"
1 Piece 2" X 3"
1 Piece 2" X 2"
1 Piece 1 1/2" X 3"
1 Piece 1 1/2" X 2"
1 Piece 1" X 2"
Price on this 7 Piece double sided pc board kit..$2.50

CLICK HERE FOR LOTS MORE CIRCUIT BOARD DEALS

DAN'S SPECIAL PARTS DEALS

50 PIECE FAIR-RITE CORE KIT.

This deal is for 25 Pieces of a FT37-43 Fair-rite core and 25 Pieces of a FT37-61 Fair-rite core.
Price on this nice 50 piece core kit...
$10.00

500 PLUS BY PASS CAPACITOR ASSORTMENT.
Here is a good deal on a lot of different vaules of by-pass caps.
500 Plus piece by pass cap grab bag.
Here is a great deal if you like by pass caps.
There are vaules like..
.1mf
.01mf
.001mf
.047mf
.47mf
.0022mf
.0033mf
.0047mf
.0015mf

There are metal film
mono's
some ceramic Disc..orange drops.. and 50 volt and 100 volt rating and some bags could have some caps with higher rating.
This is a great deal if you can use what is listed.
Very handy to have in the junk box.
Price on this great deal is...
$5.00
Or..buy 2 bags for only 8.50

50 PIECE TRIM CAP. ASSORTMENT

Here a nice 50 piece trimmer cap assortment.
7 Different vaules...all are 6mm size except for 2 vaules and all made by Murata except 2 vaules and 100vdc and great for the QRP builder and etc....what is included is the following..working from left to right in the photo of the caps...
10 pieces.8.5-150pf color black.
5 pieces 5.5-80pf color orange.
5 pieces 6.5-60pf color brown.
5 pieces 6.8-45pf color yellow.
10 pieces 2.5-25pf color clear.
10 pieces 1.5-11pf color white.
5 pieces 2.5-7.5pf color blue npo.

50 pieces total..all new.
Vaules listed are very close but you may get a pf or 2 different than listed if u measure..but nothing serious.
Nice kit of small trimmer caps to have in ur parts bin and a great price and deal..so get some while avialable.
Price on this nice 50 piece trimmer cap deal is...
$10.00

110 PIECE ZENER DIODE KIT.

Nice 110 Piece Zener Diode Kit.
Includes the following vaules.

10 Pieces 1N4687 4.3V-0.5W
10 Pieces 1N5230B 4.7V-0.5W
10 Pieces 1N4733 5.1V-1W
10 Pieces 1N752A 5.6V-0.5W
10 Pieces 1N4735 6.2V-1W
10 Pieces 1N754A 6.8V-0.5W
10 Pieces 1N5236B 7.5V-0.5W
10 Pieces 1N757A 9.1V-0.5W
10 Pieces 1N5240 10V-0.5W
10 Pieces 1N5245B 15V-0.5W
10 Pieces 1N5248B 18V-0.5W

110 Pieces and price on this nice 110 Piece Zener Diode kit...
$6.50

15 Piece Motorola Hot Carrier Diode Kit.
Kit Contains 5 EA. of The Following
MBD-101 *** MBD-102 *** MBD-301
Price For This 15 Pieces Kit..$4.50

25 PIECE NPO CAPACITOR KIT
KIT CONTAINS 5 EA. OF THE FOLLOWING VAULES
TIGHT TOL. +-.25% 100 VOLT
5 EA. OF THE FOLLOWING.
1.8PF
2.7PF
3.3PF
6.8PF
8.2PF
PRICE ON THIS 25 PIECE NPO KIT...$3.00

CERAMIC FILTERS AND RESONATOR GRAB BAG.
If you like ceramic filters and resonators then this
deal is for you..Lots of different types here
Bag of 100 assorted ceramic filters and resonators..PRICE..$5.00

100 ASSORTED INDUCTORS..AND IF CANS
THIS IS A NICE ASSORTMENT OF ALL DIFFERENT KINDS OF INDUCTORS, MOLDED,AND COIL FORMS AND IF CANS...
THERE ARE SLUG TUNNED AND ALSO SLUG TUNNED IF CANS
LOTS OF DIFFERENT VAULES AND A GREAT DEAL FROM DAN'S...PRICE WHILE THEY LAST...IS BAG OF 100 FOR .....$5.00

500 PIECE GRAB BAGS.

500 Piece grab bags are back.
These have a little of this and a little of that in them.
like crystals, caps, resistors,inductors and other odds and ends, and have always sold out in the past.
Price on the 500 Piece grab bags $5.00
Special deal..buy 2 of the 500 piece grab bags for only...
$8.00
NOTE: Bcause of weight the 500 piece grab bags are available to USA BUYERS ONLY.

100 ASSORTED TANTALUM CAPACITORS
This is a great way to stock up on these nice capacitors.
100 piece Tantalum assortment..lots of vaules..PRICE..100 for $6.00

20 PIECE SIEMENS VARACTOR TUNNING DIODE KIT.
KIT CONTAINS THE FOLLOWING VAULES AND QUANITY BELOW.
5 BB104 DUAL 35PF
5 EA.BB605 33.5PF
10 EA. BB329 12.5 PF
PRICE FOR THIS 20 PIECE KIT....$4.50

DAN'S DOLLAR DEALS
THIS SECTION HAS A LOT OF GOOD DEALS AND EACH
DEAL IS ONLY $1.00 PER BAG.

20 PIECE NPO KIT..10 PIECES 100PF NPO AND 10 PIECES 47PF NPO..20 PIECES TOTAL..PRICE IS..$1.00
16UH AXIAL INDUCTORS..NICE PARTS..PRICE..6/$1.00
JW MILLER 10UH 1.5 AMP AXIAL INDUCTORS...PRICE 10/$1.00
10UH 500 MA. RADIAL INDUCTORS..10/$1.00
THERMISTORS.RADIAL LEADS...ROOM TEMPERATURE APRON 80 DEG.
FAHRENHEIT 510 OHMS
APPROXIMATE.IN BETWEEN TWO FINGERS RESISTANCE DROPS TO 393
APPROXIMATE..WE HAVE NO IDEA WHAT THESE ARE GOOD FOR..BUT A LOT OF
YOU HAVE BOUGHT THEM IN THE PAST..PRICE..10 PIECES FOR ONLY $1.00
50K THERMISTORS..THIS IS THE RESISTANCE AT ROOM TEMP APROX. AND THESE
ARE NEG. TEMP. TYPE..THERMISTORS..RADIAL LEADS...GRAB SOME AT A GREAT
BUY AT 10 PIECES FOR $1.00
625PF 5% TOL. 500 VOLT DIP MICA CAPS
RADIAL STYLE..PRICE ON THESE WILL BE 4 FOR $1.00

KITS

LITTLE JOE TRANSMITTER KIT
From QRP Classics page 9 amd also featured in Solid State Design
Kit includes nice little etched circuit board and all board mount components.
NOTE: KIT DOES NOT INCLUDE CRYSTAL
AVAILABLE for the following bands and make sure you indicate the band you want, when you order
160 METERS
80 METERS
40 METERS
20 METERS
10/15 METERS
PRICE ON THIS NICE LITTLE TRANSMITER KIT IS $19.95

IMPROVED NEOPHYTE RECEIVER

This receiver was featured in the spring 1994 issue of Ham Brew Magazine
Designed by Wes Baden, K6EIL
This is a nice 40 meter receiver and uses a NE602AN OR NE612AN mixer chip
and incorporating an AF pre-amplifier and bandpass audio filter
will drive a 2 1/2" to 3" speaker to room level volume.
Kit includes etched circuit board and all board mount components
included is a very nice 20pf air vairable capactior..double bearing type
has built in 8:1 reduction and 1/4" shaft
copy if artical included with kit...price of this kit is...$32.95

ANTENNA TUNER KITS

QRP MINI-TUNER RATED AT 10 WATTS MAX.
This is a compact QRP Antenna Tuner featured in the October issue of 73 Magazine.
Artical by Mark L.Meyer
This kit contains two 200pf air variables with 1/4" shaft
2 bnc connectors..toroids..wire..and instructions
also includes 1 pole 12 position switch 1/4" shaft
Price on this nice little tunner kit is...$15.00..
20 TO 25 WATT VERSION OF THE QRP TUNNER...PRICE..$29.95

THIS TUNNER IS ALSO GOOD FOR SHORTWAVE RECEIVERS
COVERAGE FROM 3.5MHZ TO 29.5MHZ..

QRP DUMMY LOAD..RF SENSOR KIT.

This is a little Dummy load and rf sensor kit that was featuredin the Autumn 1995 Hambrew Magazine
The artical was by Bill Hickox K5BDZ. This dummy load will handel up to 20 watts

The kit comes with a little 1 3/4" by 1/3/4" board and all the parts, includes a 200ua meter..( no case included )
Price on this kit is...~~$15.00~~..includes a copy of the artical..
NEW CLOSE OUT PRICE
CLICK HERE

SIMPLE SWR METER KIT
This is a little SWR/POWER meter kit that works and does not cost you $60.00 to $100.00
The kit and artical was featured in the spring 1995 HAM BREW MAGAZINE.
Bill Hickox k5bdz was the author of the artical and also the designer

The kit comes with a 1 3/4" by 1 3/4" board and the components for the board and a 200ua meter
Price..is ~~$15.00~~..
copy of artical included
NEW CLOSE OUT PRICE HERE
CLICK HERE

DOUBLE BALANCED MIXER KITS

Roll your own double balanced mixer and save money while having fun and getting experince winding cores.
This kit includes a matched set of hot carrier diodes plus the cores and no. 28 mag. wire
Includes the 1 sheet of instructions and available with the following cores.
FT37-43 CORES
FT37-61 CORES
FT23-43 LITTLE CORES
PLEASE INDICATE WHAT CORES YOU WANT WITH KIT WHEN YOU ORDER
PRICE..will be $2.50 ea.

SURFACE MOUNT FUN

NOTE..THIS SECTION WILL CHANGE OFTEN...SO IF YOU
SEE SOMETHING YOU WANT..THEN GET IT NOW...IT MIGHT NOT BE THERE
THE NEXT TIME YOU LOOK...

SEMICONDUCTORS
NE602AN SO-8 PACKAGE..SURFACE MOUNT...PRICE FOR THESE IS..$2.85EA.
SA612A SO-8 PACKAGE...SURFACE MOUNT...$2.85 EA.
TLO-72..SO-8 SURFACE MT...3/$1.00
MBBT2222A SOT-23 PACKAGE.....PRICE 12/$1.00
MMBT3904 SOT-23 PACKAGE.....PRICE 12/$1.00
MMBT3906 SOT-23 PACKAGE.....PRICE 12/$1.00
2N7002 N CHANNEL MOSFET SO-23 PACKAGE.....PRICE 12/$1.00
MMBT3640 SO-23 PACKAGE.....PRICE 12/$1.00
3SK177 Dual gate GaAsfet SOT-143 PACKAGE
NICE PARTS..ON TAPE AND REEL ( ANTI-STATIC)
PINOUT WITH PARTS..PRICE 5/$4.50

BF998 SILICON N-CHANNEL DUAL-GATE MOSFET
Integrated gate protective diode
Low noise figure
Low feedback capacitance
Low noise figure, 1db @ 200mhz and 1.5db @ 800mhz
Power gain 28db @ 200mhz, 20db @ 800mhz
Case size is SOT-143
SPEC. SHEET WITH PIN OUT INCLUDED...COMES ON FACTORY TAPE AND REEL IN ANTISTATIC PACKAGING
PRICE ON THESE ARE...5/$4.00

WJ COMMUNICATIONS, INC
HIGH PERFORMANCE PRODUCTS

FH1.....HIGH DYNAMIC RANGE FET.

PRODUCT FEATURES.

50-3000 MHZ BANDWITH
+42 DBM OUTPUT IP3
1.2DB NOISE FIGURE
18DB GAIN
+21 DBM P1DB
SINGLE OR DUAL SUPPLY OPERATION
MTBF>100 YEARS
SOT-89 SMT PACKAGE
THESE ARE ON FACTORY TAPE AND REEL..VERY NICE PARTS..LIST PRICE IN QUANTIY
OF 1-9 PIECES $5.21 EA.
DANS PRICE IS 4 PICES FOR $10.00
FOR MORE INFORMATION ON THESE NICE PARTS CHECK OUT THEIR WEB SITE.....WWW.wj.com

1 PAGE DATA SHEET WITH PIN OUT SUPPLIED WITH ORDER.

wj AH1 HIGH DYNAMIC RANGE AMPLIFIER
PROCUCT FEATURES
250-3000 MHZ
+41 DBM OUTPUT IP3
2.7 DB NOISE FIG.
+21 DBM P1DB
MTBF>100 YEARS
SOT-89 SMT PACKAGE
SINGLE +5 VOLT SUPPLY

THESE ARE ON FACTORY TAPE AND REEL..VERY NICE
PARTS..LIST PRICE IN QUANTIY OF 1-9 PIECES $5.86 EA. AND
DANS PRICE IS 4 PIECES FOR $10.00

FOR MORE INFORMATION ON THESE NICE PARTS CHECK OUT THEIR WEB SITE. WWW.wj.com

1 PAGE DATA SHEET SUPPLIED WITH ORDER

TUNNING DIODES
SMV1212...50PF...PRICE 2/$1.75
MV1494 39PF...PRICE 2/$1.75

SURFACE MOUNT TRIMMER POTENTIOMETERS

500 OHM 3.75MM X 3.75MM SQUARE
TOP ADJ. CERMENT...PRICE 2/$1.00
47K TOP ADJ. SMT TRIM POTS..SIZE 4.25MM X 4.75MM..PRICE 3/$1.00
BOURNS 1K 5MM X 5MM SQUARE TOP ADJ.
CERMENT/SEALED...PRICE 2/$1.00
BOURNS 10K 5MM X 5MM SQUARE TOP ADJ. CERMENT/SEALED
PRICE ON THESE ARE 10/$3.50

240 PIECE SURFACE MOUNT INDUCTOR KIT.

NOTE: The photo above give you a idea of the different case sizes in this nice SMT inductor kit.
Here is a very nice surface mount inductor kit and includes the following vaules.
10 pieces 1uh case size 1210 10% tol. 1RO on case.
10 pieces 1.5uh case size 1210 20% tol. 1RM5 on case.
10 pieces 1.8uh case size 1210 10% tol. 1R8 on case.
10 pieces 2.2uh case size 1210 5% tol. case blank.
10 pieces 2.7uh case size 1210 5% tol. 2.R7 on case.
10 pieces 3.3uh case size 1210 20% tol. 3R3M on case.
10 pieces 4.7uh case size 1210 5% tol. 4R7J on case.
10 pieces 5.6uh case size 1210 5% tol. 5R6J on case.
10 pieces 10uh case 1812 5% tol. 100 on case.
10 pieces 12uh case 1210 5% tol. 120J on case.
10 pieces 15uh case 1812 10% tol. 150 on case.
10 pieces 22uh case 1210 10% tol. 220 on case.
10 pieces 33uh case case 1812 5% tol. 330 on case.
10 pieces 39uh cas3 1210 5% tol. 390J on case.
10 pieces 47uh case size 1812 5% tol. 470 on case.
10 pieces 68uh case size 1812 5% tol. 680J on case.
10 pieces 82uh case size 1812 10% tol. 820k on case.
10 pieces 100uh case size 1210 5% tol. 101J on case.
10 pieces 120uh case size 1210 5% tol. 121J on case.
10 pieces 150uh case size 1210 10% tol. 151 on case.
10 pieces 180uh case size 1812 10% tol. 181K on case.
10 pieces 220uh case size 3/16" sq. 10% tol. 221 on case.
10 pieces 330uh case size 1812 5% tol. 331J on case.
10 pieces 1000uh caze size 1812 5% tol. 102J on case.
Price on this nice 240 piece surface mount inductor kit.
$16.50

SURFACE MOUNT CAPACITORS

300 PIECE HIGH VOLTAGE BY PASS SMT CAP KIT.

Here is a nice high voltage surface mount by pass cap kit.
100 Pieces .luf 500 volt case 1210 +-10% tol.
100 pieces .01uf 500 volt case 1210 +-20% tol.
100 pieces .001uf 1000 volt case 1808 +-10% tol. NPO.
Price on this nice 300 pices high voltage surface mount by pass cap kit is..
$10.00
This is a great deal on this 300 piece high voltage SMT cap by pass kit.

700 PIECE SMT BY-PASS CAP. KIT.

Here is a nice 700 Piece surface mount by pass cap. kit.
7 different vaules and a great deal.
100 pieces each of the vaules listed below and each vaule in its own bag as in photo.
100 Pieces .1uf 100 volt 10% tol. case 1206.
100 Pieces .01uf 100 volt 10% tol. case 1206.
100 Pieces .001uf 100 volt 10% tol. case 1206.
100 Pieces .047uf 50 volt 10% tol. case 1206.
100 Pieces .0047uf 50 volt 5% tol. case 1210.
100 Pieces .22uf 25 volt 10% tol. case 1206.
100 Pieces 1uf 25 volt +80 -10 % tol. case 1210.
If you bought these from one of the major parts houses you would pay well over $75.00 for what you see here.
This is a great assortment for the person that is into surface mount.
Price on this nice 700 Piece by pass cap kit.
$12.50

SMALL SURFACE MOUNT ELECTROLYTIC CAPS.

100 ASSORTED SMT ELECTROLYTIC CAPS.

100 Assorted surface mount electrolytic caps.
This is a great deal and priced at...
100/$3.50

SURFACE MOUNT TRIMMER CAPACITORS
5PF-30PF SMT TRIMMER CAPACITOR.. TOP ADJ. 3MM x 5MM
COLOR GREEN...PRICE 2/$1.00
2.5-10PF NPO SMT TRIMMER CAPACITOR.. TOP ADJ. 3MM X 5MM..PRICE 3/$1.00
VOLTRONICS 0-3.5PF NPO SMT TRIMMER CAPACITOR .. TOP ADJ. SIZE 3.5MM X 5 MM
PRICE ON THESE IS....5/$1.00

SURFACE MOUNT ODDS AND ENDS

10UF 16 VOLT 10% TOL. TANTALUM CAPACITORS..CASE SIZE D. PRICE 25/$2.50
LM358 SO-8 PACKAGE..PRICE 4/$1.00
ELIPTEK 3.6864 CRYSTAL ( CERAMIC PACKAGE/GOLD LEADS )7.5MM LONG X 5MM WIDE...PRICE 2/$1.00
22UH SMT INDUCTORS 5% TOL. CASE 1210..THESE ARE MOLDED TYPE ( REAL NICE )10 OF THESE AT
MOUSERS WILL COST YOU OVER $3.00...BUY 10 PIECES 22UH SMT INDUCTORS FROM DAN'S FOR $1.25
12.500 SMT CRYSTALS...CERAMIC PACKAGE..SIZE 8MM X 4.75MM..PRICE 2/$1.00
21.504 MHZ HC-49 SMT PACKAGE..PRICE 10/$1.00
8.00MHZ CRYSTALS SIZE..14MM LONG X 4.75MM WIDE..PRICE 2/$1.00
HSMS-2825 DUAL SCHOTTKY DIODES..SOT-143 PIN OUT...PRICE..10/$1.00
HSMP-3890 (BLK) PIN DIODE SOT23 PIN OUT...(ALLIED PRICE $.52 EA.) DAN'S PRICE..10 FOR $2.50
100PF CASE 1206 5% TOL NPO SMT CERAMIC CAPS....PRICE...25/$1.00
1N914 SMT DIDOES CASE SOT23..PRICE 25/$1.00
10UF 16 VOLT SMT ALUMINUM ELECTROLYTIC CAPS. 4MM CASE SIZE..PRICE 10 PIECES FOR $1.00
100UF 25 VOLT SMT ALUMINUM ELECTROLYTIC CAPS. 9MM CASE SIZE..PRICE 10/$1.00
.047MF SMT CERAMIC CAPS..CASE 0805 50 VOLT 10% TOL...PRICE..25/$1.00

SURFACE MOUNT TANTALUM CAPACITOR ASSORTMENT
9 DIFFERENT VAULES IN THIS ASSORTMENT
45 PIECE ASSORTMENT
5 EA. OF THE FOLLOWING
1UF 35 VOLT 10% TOL.CASE SIZE A 3.2MM L. X 1.6MM W. X 1.6MM H.
2.2UF 25 VOLT 10% TOL. CASE SIZE A 3.2MM L. X 1.6MM W. X 1.6MM H.
3.3UF 20 VOLT 20% TOL. CASE SIZE B 3.5MM L. X 2.8MM W. X 1.9MM H.
4.7UF 35 VOLT 10% TOL. CASE SIZE C 6.0MM L. X 3.2MM W. X 2.5MM H.
6.8UF 16 VOLT 10% TOL. CASE SIZE B 3.5MM L. X 2.8MM W. X 1.9MM H.
10UF 16 VOLT 10% TOL. CASE SIZE C 6.0MM L. X 3.2MM W. X 2.5MM H.
22UF 20 VOLT 10% TOL. CASE SIZE D 7.3MM L. X 4.3MM W. X 2.8MM H.
33UF 16 VOLT 20% TOL. CASE SIZE D 7.3MM L. X 4.3MM W. X 2.8MM H.
47UF 16 VOLT 20% TOL. CASE SIZE D 7.3MM L. X 4.3MM W. X 2.8MM H.

THIS IS A NICE LITTLE TANTALUM ASSORTMENT TO HAVE AROUND AND CLOSE TO A
$30.00 VAULE IF YOU BOUGHT FROM THE MAJOR PARTS HOUSE'S..CHECK MOUSERS
AND DIGI-KEY PRICE...THESE ARE ALL NEW..NO PULLS...DAN'S PRICE IS.......$7.50

100 ASSORTED SURFACE MOUNT TANTALUM
CAPACITORS

THIS IS A NICE ASSORTMENT OF SURFACE MOUNT TANTALUM CAPACITORS
THIS ASSORTEMENT CONTAINS VAULES FROM 1UF TO 47UF..DIFFERENT
SIZES AND VOLTAGES..AT LEAST 8 DIFFERENT VAULES..
A GREAT DEAL..CHECK OUT WHAT THESE COST AT YOUR FAVORITE MAIL
ORDER HOUSE...BAG OF 100 FOR ONLY $8.50..

180 PIECE COG AND NPO SURFACE MOUNT CAPACITOR
KIT.
KIT CONTAINS 37 DIFFERENT VAULES...5 EA.
OF THE FOLLOWING VAULES LISTED BELOW.
.5PF ( 1/2PF ) +/- .25PF COG. 50 VOLT CASE 0603
1PF +/- .25PF COG. 50 VOLT CASE 0805
1.2PF +/- .25PF COG. 50 VOLT CASE 0603
1.8PF +/- .25PF COG. 50 VOLT CASE 0603
1.5PF +/- .25PF COG. 50 VOLT CASE 0805
2.2PF +/- .25PF COG. 50 VOLT CASE 0603
2.7PF +/- .25PF COG. 50 VOLT CASE 0603
3.0 PF +/- .25PF COG. 50 VOLT CASE 0603
3.3PG +/- .25PF COG. 50 VOLT CASE 0603
3.9PF +/- .25PF COG. 50 VOLT CASE 0603
4.7PF +/- .25PF COG. 50 VOLT CASE 0603
5PF +/- .25PF COG. 50 VOLT CASE 0603
6.2PF +/- .25PF COG. 50 VOLT CASE 0603
8.2PF +/- .25PF COG. 50 VOLT CASE 0603
10PF 5% NPO 50 VOLT CASE 0805
12PF 5% NPO 50 VOLT CASE 0603
15PF 5% NPO 50 VOLT CASE 0603
18PF 10% COG. 50 VOLT CASE 0603
20PF 5% NPO 50 VOLT CASE 1206
22PF 5% NPO 50 VOLT CASE 0603
27PF 5% NPO 50 VOLT CASE 0603
33PF 5% NPO 50 VOLT CASE 0603
39PF 5% NPO 50 VOLT CASE 0603
47PF 5% NPO 50 VOLT CASE 0603
56PF 5% NPO 50 VOLT CASE 0603
82PF 5% NPO 50 VOLT CASE 0603
100PF 5% NPO 50 VOLT CASE 0603
150PF 5% NPO 50 VOLT CASE 0603
220PF 5% NPO 50 VOLT CASE 0603
270PF 5% NPO 50 VOLT CASE 1206
300PF 5% NPO 50 VOLT CASE 0603
330PF 5% NPO 50 VOLT CASE 0805
390PF 5% NPO 50 VOLT CASE 0805
470PF 5% NPO 50 VOLT CASE 0805
820PF 5% NPO 50 VOLT CASE 0603
1000PF 5% NPO 50 VOLT CASE 0603

THIS IS A GREAT KIT OF COG. AND NPO SURFACE MOUNT CAPACITORS.
ALL ARE MARKED WITH VAULE AND PRICE ON THIS 180 PIECE SMT NPO-COG KIT IS ONLY $12.50

500 PLUS PIECE SURFACE MOUNT GRAB BAG.

This a good way to stock get started in surface mount technology.
lots of good parts here..there are capacitors, resisistors...semiconductors and a lot more...
may contain crystals..trim pots...inductors..etc..
PRICE IS ONE 500 PLUS PIECE BAG FOR $2.50
OR BUY 5 BAGS FOR ONLY $10.00

DAN'S CLOSE OUT SECTION
lISTED BELOW ARE SOME CLOSE OUT AND EXCESS INVENTORY..ALL ITEMS IN DAN'S CLOSE OUT SECTION ARE SOLD AS IS..AND ALL SALES ARE FINAL..WHAT THIS MEANS NO RETURNS...PLEASE MAKE SURE THAT THE ITEMS LISTED BELOW ARE ITEMS THAT YOU WANT..THERE ARE SOME GOOD DEALS HERE..

2.2UF 50 VOLT ELECTROLYTIC CAPS..SMALL SIZE..RADIAL LEADS..LONG LEADS..GREAT DEAL..25/$1.00

VERY NICE SLUG TUNNED IF CANS

HERE ARE SOME NICE TOKO SLUG TUNNED IF CANS...10MM SIZE..5 PIN BASE...RANGE ON 2 PIN SIDE IS APPROX. 32-70UH...RANGE ON 3 PIN BASE IS APPROX 190-590UH AND CENTER TAP RANGE APPROX...60-120UH..PRICE ON THESE NICE IF CANS IS..2/$1.00
WHILE THEY LAST.

5.6UH CHOKES 10% TOL.

5.6UH Chokes 10% tol. (green-blue-gold)long leads.
Price on these nice 5.6uh chokes is...
25/$1.00

1MH (1000UH ) SURFACE MOUNT INDUCTORS.

Here are some nice 1000uh ( 1MH ) surface mount inductors...case size 1812 and 5% tol.

Nice to have around and price at...

25/$2.50

1000UH CHOKES..5% TOL. THUR HOLE.

1MH CHOKES..{ 1000UH } 5% TOL.
These are nice chokes and a great deal.

10/$2.50
Extra special deal..
25/$5.00

100 UH 1.5 AMP CHOKES

Very nice 100 uh chokes 1.5 amp
Coil body 1 inch long..little over 3/16" dia. on coil body and leads are 1-1/2" long.
Nice 100uh chokes.
price on these nice 100uh chokes...
3/$1.00

Nice Face Plates

Nice face plate or end plate for home made enclosures.
Size 1-1/2" high and 3-1/2" long and the 2 holes will take 4-40 machine screws or 6-32.
Price on these nice face or end plates..
10/$1.50

680UH CHOKE 5% TOL. 650 MA.

Nice 680uh choke 650 ma. 5% tol. long leads..nice chokes.
Price on these nice chokes...
10/$2.50

25 PIECES 100 UH CHOKES 5% TOL.

THESE ARE NICE 100 UH 5% TOL. CHOKES..SPECIAL SALE PRICE..BUY 25 FOR..$3.50

***4 WATT QRP DUMMY LOAD***

KIT CONTAINS 2 PIECES 2 WATT 100 OHM 5% TOL. CARBON COMPOSTION RESISTORS AND 1 RCA PLUGS...JUST HOOK 2 OF THE RESISTORS IN PARRALLE..ON ONE END OF THE 2 RESISTORS HOOK TOGETHER ON THE OTHER END..ONE LEAD OF ONE RESISTOR GOES TO THE CENTER OF THE CONNECTOR..THE OTHER TO THE SHELL..AND THATS IT...SO THIS DEAL INCLUDES 2 100 OHM 5% TOL. 2 WATT CARBON COMPOSITION RESISTORS AND 1 RCA PLUGS..KIT ALSO INCLUDES ONE RCA PANEL MOUNT JACK.. PRICE..$1.00

500 PIECE GRAB BAGS.

500 Piece grab bags are back.
These have a little of this and a little of that in them.
like crystals, caps, resistors,inductors and other odds and ends, and have always sold out in the past.
Price on the 500 Piece grab bags $5.00
Special deal..buy 2 of the 500 piece grab bags for only...
$8.00
NOTE: Bcause of weight the 500 piece grab bags are available to USA BUYERS ONLY.

115 PIECE CRYSTAL DEAL

Nice 115 Piece crystal deal..These are all new and kit includes the following crystals.
10 Piece 8.000mhz....HC-18U case.
10 Pieces 4.032mhz....HC-18U case.
10 Pieces 14.318mhz....HC18-U case.
5 Pieces 3.579mhz....HC-18U case.
5 Pieces 3.6864mhz....HC-18U case.
5 Pieces 1.856mhz....HC-18U case.
10 Pieces 24.000mhz....HC-18U case.
10 Pieces 12.08391mhz....HC18-U case.
10 Pieces 18.432mhz HC-49 case.
30 Pieces 13.500mhz....HC-18U case.
10 Pieces 10.110mmz....surface mount type.
If you bend leads vertical they are long enough for thru hole insertion.
Price on this nice 115 Piece crystal assortment..
$7.00

15UH MOLDED CHOKES 5% TOL.

Nice 15uh 5% tol. molded inductors..{brown-green-black-gold }
What you see in photo is what you will receive.
Price on these nice 15uh chokes...
10/$2.50
Or buy 25 pieces for only...
$4.00

150PF PANEL MOUNT AIR VAIRABLE CAPACITOR.

8.5-150PF Small panel mount air vairable with long nice shaft.
Silver plated plates.
Mounting screws included.
If shaft 2 long cut off to suit your needs.
Limited quantity...
Made by Oak.

Price...
$7.00

150PF PANEL MOUNT AIR VAIRABLE CAPACITOR.

6.5-150PF Small panel mount air vairable capacitor by ASP.
1/4" Shaft..body of capacitor [not including shaft]is 1-1/2" long.
Mounting screws included.
Nice little panel mount air-vairable...
Price...
$6.00

140PF PANEL MOUNT AIR VAIRABLE.

Nice small panel mount ASP 140PF Panel mount air-vairable capacitor.
5.5-140pf approx...1/4" shaft..4-40 threaded holes in ceramic part of cap for mounting..mounting screws included.
Body of cap approx 1-1/2" long.[not including shaft]
Price on this Nice panel mount air vairable...
$5.50

40 PIECE TRIMMER CAP ASSORTMENT

Here a nice 40 piece trimmer cap assortment....all are 6mm size and made by Murata and around 100vdc and great for the QRP builder and etc....what is included is the following..working from left to right in the photo of the caps...
10 pieces 8.5-150pf...color black.
10 pieces 6.8-45pf...color yellow.
10 Pieces 2.5-25PF color white.
10 pieces..1.5-7.5pf..color blue. [npo]

40 Pieces total and price on this nice 40 Pices trimmer cap assortment is...
$12.50

1MF RADIAL MONO CAPACITORS.

100 Pieces 1mf [105] 50 Volt radial leaded Mono capacitors.
Nice capacitors and price for bag of 100 pieces...
$6.50

47 UH MOLDED CHOKES.

10 Pieces 47uh 10% tol. chokes...
Price....
10/$1.50
Or buy 25 Pieces for only...
25/$4.00

SMALL DPDT PANEL MOUNT SLIDE SWITCH.

Small panel mount DPDT slide switch.
Size 1 inch long..2 small holes for mounting.
Price on these nice DPDT switches...
12/$1.50

10PF GOLD MIL-SPEC. PISTON CAPACITOR.

0-10PF LITTLE GOLD MIL-SPEC. PISTON CAP..
BOTTOM ROW OF PIC TO THE RIGHT
GOLD PLATED AND MADE BY CAGE AND 12.5MM X 3MM DIA.
RATED VOLTAGE 500 VDC AND DIELECTRIC WITH STANDING VOLTAGE 1000 VDC...NICE CAPS..
PRICE ON THESE IS...
$2.50 EA.
Special deal..buy 5 for only...
5/$10.00

SMALL JFD GLASS PISTON TRIM CAP.

.05-14.5PF...500 VDC...1" LONG APROX...INCLUDES LITTLE BOX AND MOUNTING NUT.
Price on these nice little glass piston caps...
$1.50 ea.

CLICK HERE FOR LOTS MORE CLOSE OUTS
AND SPECIAL DEALS

This is the end of Dan's Virtual Internet Catalog.
This On Line Catalog Will Continue to Grow
as Time Permits.

Copyright 2005, 2006,2007,2008,2009,2010,2011,2012,2013,2014,1015.

PAGE UP-DATE FEBUARY 10-2010

DAN'S IS OPEN AS OF JANUARY 24-2010.

DAN'S SMALL PARTS AND KITSBOX 3634MISSOULA, MONTANA. 59806-3634PHONE 406 258 2782NOTICE:This is Dan's Internet Catalog No. 8 and all other on-line Catalogs are no longer valid. Please make sure that you are ordering from this Cat. INTERNET CATLOG NO. 8 This on line Catalog will be updated often.

DAN'S SMALL PARTS AND KITS

BOX 3634

MISSOULA, MONTANA. 59806-3634

PHONE 406 258 2782

NOTICE:This is Dan's Internet Catalog No. 8 and all other on-line Catalogs are no longer valid. Please make sure that you are ordering from this Cat. INTERNET CATLOG NO. 8 This on line Catalog will be updated often.

**********NOTICE**********

NOTICE POSTED JULY 19TH,2008

CHECK OUT DAN'S NEW CLOSE OUT AND SPECIAL DEALS SITE.CLICK HEREDONT'T MISS DAN'S CLOSE OUT SECTION AT BOTTOM OF PAGE .... LOTS OF GOOD ITEMS THAT WHEN SOLD OUT WILL NEVER RETURN CHECK IT OUT!

CHECK OUT DAN'S NEW CLOSE OUT AND SPECIAL DEALS SITE.CLICK HERE

DONT'T MISS DAN'S CLOSE OUT SECTION AT BOTTOM OF PAGE .... LOTS OF GOOD ITEMS THAT WHEN SOLD OUT WILL NEVER RETURN CHECK IT OUT!

HOW TO ORDER..

Use what ever handy for a order form and a copy will be returned with your order.

CLICK HERE FOR ORDER BLANKPlease make sure that payment along with the CORRECT SHIPPING is included with order and send your order to

SHIPPING AND HANDLING

SHIPPING AND HANDLING

*****WANT FREE SHIPPING?*****READ HOW BELOW

NOTICE: Orders less than $75.00 or orders paid with other than USA Postal Money order..do not qualify for the free shipping offer above. If shipping is not included in orders that do not qualify for the free shipping deal.....Your order will not be processed and will be returned.

PAYMENT

Backorders

Dan's does not back order and a refund for items either not in stock or sold out will be enclosed with your order.

OTHER IMPORTANT INFORMATION

NOTEPrice and availablity of items subject to change with out notice..

IMPORTANT NOTICE:ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.CLICK HERE

2N5951 N-CHANNEL J-FETS..3/$1.00MPF-102..PRICE 3/$1.2510 PACK OF THE MPF-102'S ... $2.50

2N5486..PRICE 3/$1.25

2N3819..PRICE 3/$1.252N5457..PRICE ... 3/$1.25

DUAL GATE MOSFETS:NOTE: THE DUAL GATE MOSEFTS OFFERED BELOW ARE NO LONGER MADE.

NOTE: THE DUAL GATE MOSEFTS OFFERED BELOW ARE NO LONGER MADE.

LOW POWER TRANSISTORS

CLICK HERE FOR MORE GREAT TRANSISTOR DEALS

TO-39 OR T0-5 OR T0-92 TRANSISTOR SOCKETS.

LOTS OF SPECIAL DEALS..CLICK HERE

VOLTAGE REGULATORS

LM317-T TO-220 PACKAGE PRICE ..... $1.00 EA.

TL431C PRECISION ADJUSTABLE SHUT VOLTAGE REGULATOR...3 PIN TO-92 PACKAGE..ADJ. FROM 2.5-36 VOLTS PRICE ..... $.59 EA.

IMPORTANT NOTICE:ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.CLICK HERE

LINEAR AND OTHER IC'S

NE5532N OR P 8 PIN DIP PRICE ..... $.89 EA.

*****LM4871N AUDIO AMP'S*****

HERE IS A NICE 1.5 WATT AUDIO AMP 8 PIN DIP ICLOW VOLTAGE...COMPLETE DATA INFOCLICK HEREVERY NICE AUDIO AMPS...PRICE...$1.00EA. OR LIMITED TIME OFFER........5/$3.00

SMALL SIGNAL SCHOTTKY DIODES

PIN DIODES

MPN3401 PIN DIODES.

MPN3401 Pin didoes..nice parts...price...10/$5.00CLICK HERE FOR DATA SHEETMPN-3404 TO-92 PACKAGE 2 LEADED RADIAL DEVICE PRICE ..... 5/$3.50

HYPERABRUPT VARACTOR TUNING DIODES.

GERAMIUM AND OTHER DIODES

1N34A ..... 10/$3.50 Limited special..20 Pieces 1N34A For only...20/$5.00This is a $2.00 savings over the reg price of 10/$3.501N60A ..... 10/$3.501N82 ..... 10/$3.501N270 ..... 10/$5.001N541 ..... 10/$3.501N914B ..... 35/$1.001N4001 .....20/$1.001N4004 ..... 20/$1.001N4148 ..... 50/$1.00

ZENER DIODES

CLICK HERE FOR MORE DIODE DEALS

CERAMIC RESONATORS AND FILTERS.

CRYSTALS

100 ASSORTED CRYSTALS.LOTS OF VAULES.100/$5.00INA-10386LOW NOISE, CASCADABLESILICON BIPOLAR MMIC AMPLIFIER

INA-10386

MINI-CIRCUITS ADE-1 SURFACE MOUNT MIXER.

TOKO 3 PIN 455 KHZ IF TRANSFORMER SET.

This is a 3 piece set includes 1ST IF YELLOW, 2ND IF WHITE AND 3RD IF BLACK.The size of these are 10 MM. see cans in pic. below, they are the 3 in a row (top of pic.)and a pin out sheet is provided with the cans.PRICE FOR THIS 3 CAN SET IS $2.50

IC SOCKETS.

GREAT DEAL ON 8 PIN PRECISION MACHINED IC SOCKETS..GOLD INNER CONTACTS..CLICK HERE.

8 PIN IC SOCKETS PRICE ..... 6/$1.0014 PIN IC SOCKETS ..... 6/$1.0016 PIN IC SOCKETS ..... 6/$1.0020 PIN IC SOCKETS ..... 6/$1.00

20 PIN MACHINE SIP SOCKETS.

MIL-MAX 8 PIN PRECISION MACHINED IC SOCKETS

CHECK OUT DIGI-KEY PRICE!!!CLICK HERESO GET SOME WHILE AVAILABLE..

8 PIN PRECISION SIP SOCKETS BY MIL-MAX

100 PIECES NICE 4 PIN PRECISION SIP SOCKETS.

100 Nice precision 4 pin sip sockets. Price on these...100/$5.00

100 PIECES PRECISION 8 PIN SIP SOCKETS.

100 Very nice 1 pin precision sip sockets.Price on these...100/$3.00

100 ASSORTED SAMTEC CONNECTORS AND SOCKETS

100 Plus assorted Samtec connectors and socketsPrice on these...100/$1.00

CRYSTAL SOCKETS

HC-6 CRYSTAL SOCKET (BLACK SOCKET IN PIC. ABOVE)PRICE $1.25 EA. MILLEN HC-6 CERAMIC CRYSTAL SOCKETS(WHITE SOCKET IN PIC. ABOVE) ..... $2.50 EA.HC-18U AND HC-49U CRYSTAL SOCKETS.NO PIC ..... 2/$1.00

SILVER SOLDER POSTS

100 Pieces silver solder posts Part NO.101Size of these solder posts is....1/2" long and dia 1/16"These have a hole thru center.Price on these nice solder posts.....100/$10.00

25 Pieces silver solder posts Part No.102

Size of these solder posts are 5/16" long and dia. is 3/16"pPrice on these nice silver solder posts...25/$2.50Or buy 100 Pieces of solder posts no. 2 for only... $5.00

25 Pieces silver solder posts Part NO.103

Size of these nice solder posts is 3/8" long and dia. 3/16"Price on these nice silver solder posts is...25/$2.50Or buy 100 Pieces of solder post no.103 for only...100/$5.00

NOTICE:This is Dan's Internet Catalog No. 8 and all other on-line Catalogs are no
longer valid. Please make sure that you are ordering from this Cat. INTERNET
CATLOG NO. 8 This on line Catalog will be updated often.

NOTICE

CHECK OUT DAN'S NEW CLOSE OUT AND SPECIAL DEALS SITE.
CLICK HERE

PLEASE READ BELOW HOW TO ORDER..DAN'S DOES NOT TAKE CREDIT CARDS...ALSO DAN'S DOES NOT TAKE ORDERS OVER THE PHONE...

CLICK HERE FOR ORDER BLANK
Please make sure that payment along with the CORRECT SHIPPING is included with order and send your order to

WANT FREE SHIPPING?
READ HOW BELOW

NOTICE: Orders less than $75.00 or orders paid with other than USA Postal Money order..do not qualify for the free shipping offer above.
If shipping is not included in orders that do not qualify for the free shipping deal.....Your order will not be processed and will be returned.

NOTE
Price and availablity of items subject to change with out notice..

IMPORTANT NOTICE:
ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.
CLICK HERE

2N5951 N-CHANNEL J-FETS..3/$1.00

MPF-102..PRICE 3/$1.25
10 PACK OF THE MPF-102'S ... $2.50

2N3819..PRICE 3/$1.25

2N5457..PRICE ... 3/$1.25

DUAL GATE MOSFETS:

NOTE: THE DUAL GATE MOSEFTS OFFERED BELOW ARE NO LONGER MADE.

TL431C PRECISION ADJUSTABLE SHUT VOLTAGE REGULATOR...3 PIN TO-92
PACKAGE..ADJ. FROM 2.5-36 VOLTS PRICE ..... $.59 EA.

IMPORTANT NOTICE:
ALL TRANSISTORS, DIODE, AND INTEGRATED CIRCUITS ( IC'S )...SPECIAL DEALS AND CLOSEOUTS HAVE MOVED.
CLICK HERE

LM4871N AUDIO AMP'S

HERE IS A NICE 1.5 WATT AUDIO AMP 8 PIN DIP IC
LOW VOLTAGE...COMPLETE DATA INFO
CLICK HERE
VERY NICE AUDIO AMPS...PRICE...$1.00EA.
OR LIMITED TIME OFFER........5/$3.00

MPN3401 Pin didoes..nice parts...price...
10/$5.00
CLICK HERE FOR DATA SHEET

MPN-3404 TO-92 PACKAGE 2 LEADED RADIAL DEVICE PRICE ..... 5/$3.50

100 ASSORTED CRYSTALS.
LOTS OF VAULES.
100/$5.00

INA-10386
LOW NOISE, CASCADABLE
SILICON BIPOLAR MMIC AMPLIFIER

This is a 3 piece set includes 1ST IF YELLOW, 2ND IF WHITE AND 3RD IF BLACK.
The size of these are 10 MM. see cans in pic. below, they are the 3 in a row (top of pic.)
and a pin out sheet is provided with the cans.
PRICE FOR THIS 3 CAN SET IS $2.50

8 PIN IC SOCKETS PRICE ..... 6/$1.00

14 PIN IC SOCKETS ..... 6/$1.00
16 PIN IC SOCKETS ..... 6/$1.00
20 PIN IC SOCKETS ..... 6/$1.00

CHECK OUT DIGI-KEY PRICE!!!

CLICK HERE
SO GET SOME WHILE AVAILABLE..

100 Nice precision 4 pin sip sockets.
Price on these...
100/$5.00

100 Very nice 1 pin precision sip sockets.
Price on these...
100/$3.00

100 Plus assorted Samtec connectors and sockets
Price on these...
100/$1.00

HC-6 CRYSTAL SOCKET (BLACK SOCKET IN PIC. ABOVE)
PRICE $1.25 EA.

MILLEN HC-6 CERAMIC CRYSTAL SOCKETS
(WHITE SOCKET IN PIC. ABOVE)
..... $2.50 EA.
HC-18U AND HC-49U CRYSTAL SOCKETS.
NO PIC ..... 2/$1.00

100 Pieces silver solder posts Part NO.101

Size of these solder posts is....1/2" long and dia 1/16"
These have a hole thru center.
Price on these nice solder posts.....
100/$10.00

Size of these solder posts are 5/16" long and dia. is 3/16"
pPrice on these nice silver solder posts...
25/$2.50
Or buy 100 Pieces of solder posts no. 2 for only...
$5.00

Size of these nice solder posts is 3/8" long and dia. 3/16"
Price on these nice silver solder posts is...
25/$2.50

Or buy 100 Pieces of solder post no.103 for only...
100/$5.00

Size of these nice silver solder posts 1/2" long and have turrent on both ends.
Price on these nice silver solder posts is...
25/$2.50

Or buy 100 pieces of solder posts no.104 for only...
100/$5.00

Size of these nice silver solder posts 1/2" long and dia. 1/8"
Price on these nice silver solder posts is...
25/$2.50
Or buy 100 pieces of solder posts no.106 for only...
100/$5.00

Size of these nice nickel solder posts 1/4" long and dia. is 3/16"
These have a hole in the middle.
Price on these nice nickel solder posts...
100/$5.00
Or buy 100 Pieces of solder posts no.107 for only...
100/$5.00

100 ASSORTED SOLDER POSTS
PART NO.108

THE PIC. GIVES EXAMPLE OF WHAT YOU GET..LOTS OF DIFFERET TYPES AND SIZES
LOOKS LIKE SOME SILVER SOLDER POSTS, GOLD POST AND SO FORTH..A GREAT LITTLE ASSORTMENT TO HAVE AROUND
PRICE..
100/$5.00

Note: all the trim pots below are priced at 5$1.00 ( not the ones in the pic. below )
No mixing of vaules please..
100 ohm * 500 ohm * 1k ohm * 2k ohm
5k ohm * 10K * 20k ohm
25k ohm * 47k ohm * 100k ohm
500k ohm * 1 meg ohm

VAULES LIKE 500 OHM 1K 2K 3K 5K 10K 47K** 100k AND MORE...A GREAT WAY TO STOCK UP ON TRIM POTS AND SAVE AT THE SAME TIME...BAG OF 100 PIECES ONLY
100/$5.00

3/4" SPECTROL(yellow ones in pic.) 20 turn.
100 ohm $1.00 ea.
5k ohm $1.00 ea.
50k ohm $1.00 ea.
10k 20 turn by Vernitron..(green one in pic.)
Price..$1.00 ea.

2K 10 TURN POT.(1ST ONE IN PIC.FROM LEFT TO RIGHT)
1/4" SHAFT...PRICE...$5.50 EA.
